Symbol
Meaning
M
Module
F
Phase control thyristor + Rectifier diode (T+D)
C
C - in series, A - common anode, K - common cathode, X - anti-parallel
26
Average current
12
Voltage code: code x 100 = VRRM
Eg.
MFC26-12, thyristor diode module, in series connection, 26A, 1600V.
Type | VDRMVRRM | IT(AV) | ITSM | dv/dt | di/dt | IDRM | IGT | VGT | IH | VTM/VFM | VTO | rT | Rjc |
IF(AV) | IFSM | IRRM | |||||||||||
V | TC= | KA | V/us | A/us | mA | mA | V | mA | V /A | V | mΩ | oC/W | |
85oC A | |||||||||||||

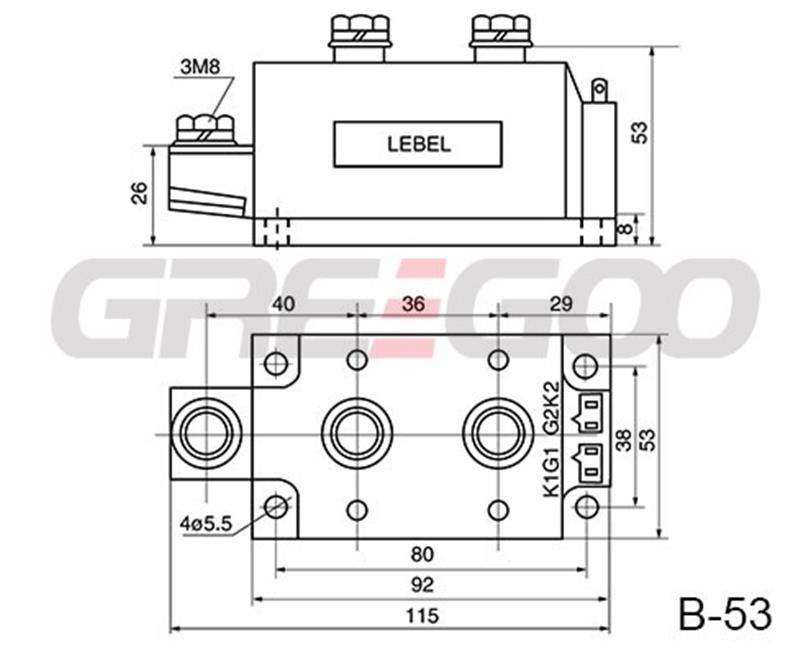

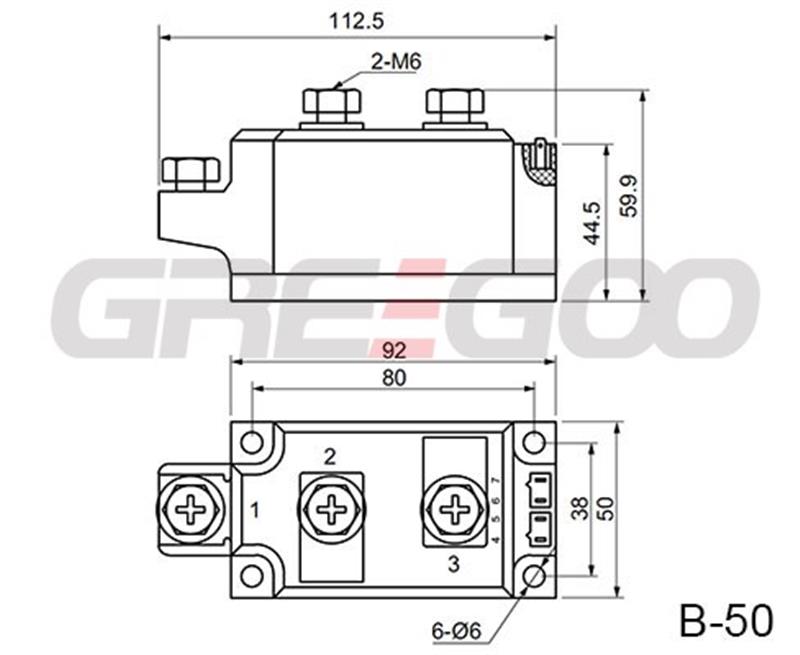

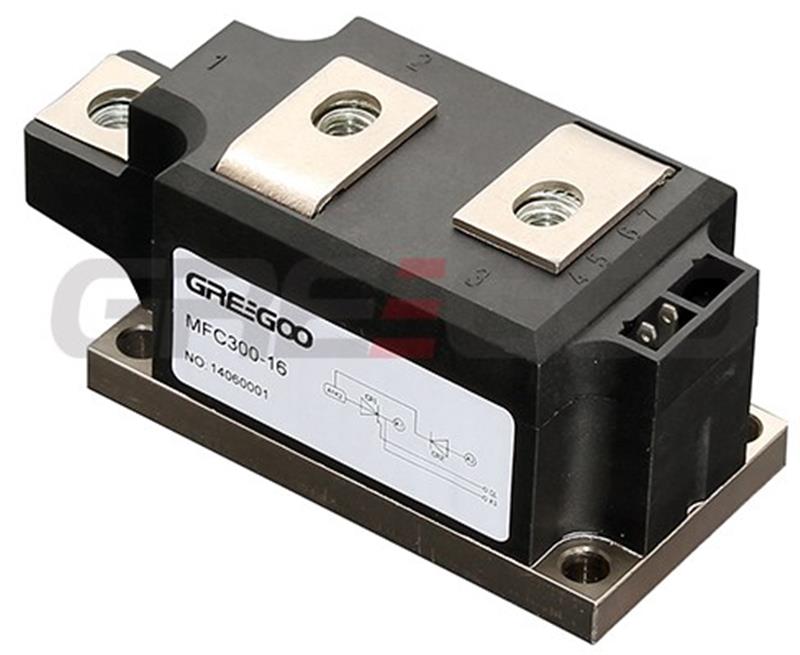

MFC300,MFA300,MFK300,MFX300 | 600-1800 | 300 | 9.3 | 800 | 100 | 40 | 180 | 2.5 | 100 | 1.58/900 | 0.8 | 0.72 | 0.1 |
MFC350,MFA350,MFK350,MFX350 | 600-1800 | 350 | 11 | 800 | 100 | 40 | 180 | 2.5 | 100 | 1.45/1050 | 0.8 | 0.36 | 0.09 |
