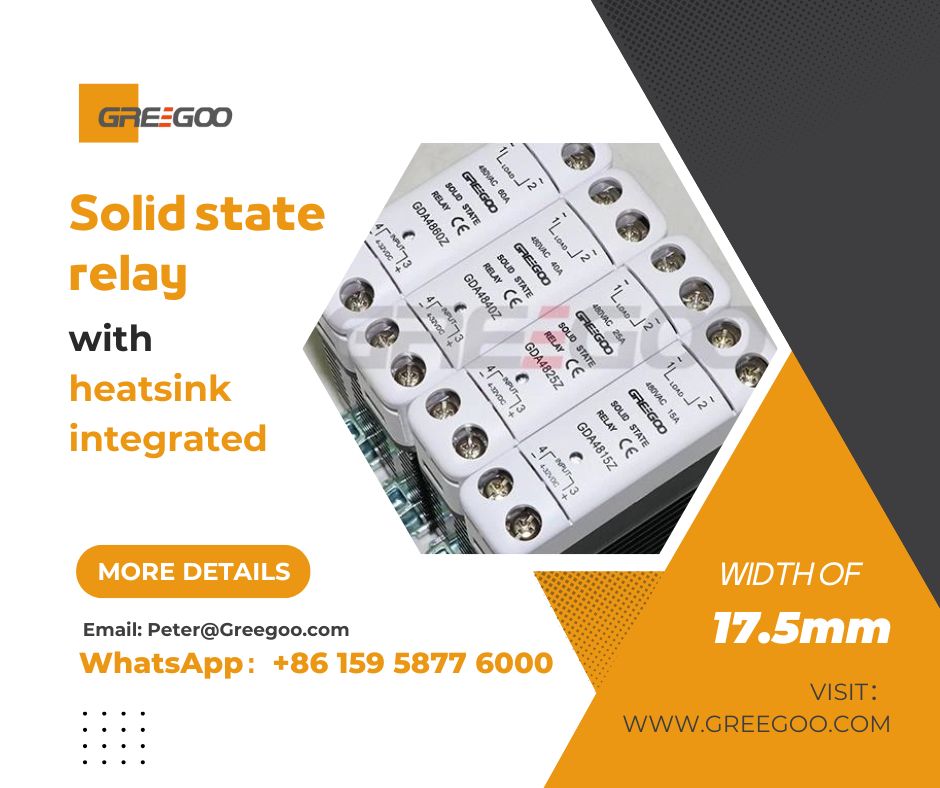

Integrated heatsink with DIN rail clamp Solid State Relay
Highlights
Panel Space Savings
This solid-state relay features an ultra-slim design with a minimum width of only 17.5mm. It is suitable for DIN rail mounting and integrates a heatsink with DIN rail clamps, significantly saving panel space.
Ease of Installation and Maintenance
Offers spring-loaded pluggable control terminal options for faster installation.
Power and control terminals are designed for safe cable connections.
Integrated IP20 touch-safe removable covers enhance safety.
High Performance and Reliability
Rated current range: 15A, 25A, 40A, 60A.
Output voltage: 480Vac and 600Vac.
Control voltage: 4-32Vdc or 90-280Vac.
Supports zero-crossing or random switching, suitable for resistive or inductive loads.
The heatsink surface is treated with black oxidation and mirror polishing for excellent heat dissipation.
Wide Range of Applications
Suitable for equipment such as plastic injection machines, extrusion machines, blow molding machines, dryers, electrical ovens, fryers, shrink tunnels, air handling units, climatic chambers, industrial furnaces, and ambient heating.
Cost and Downtime Reduction
Reduces maintenance costs and machine downtime, improving operational efficiency.
Flexible Model Selection
Offers a variety of models to support different control voltages, load voltages, and switching methods, meeting diverse needs.
Clear model naming rules, for example: GDA4840Z: DC control voltage (4-32Vdc), load voltage 480Vac, rated current 40A, zero-crossing switching. GAA6015R: AC control voltage (90-280Vac), load voltage 600Vac, rated current 15A, random switching.
Protection Features
Provides solid-state relay overheat protection, enhancing device safety and lifespan.
Summary
This solid-state relay with an integrated heatsink features a compact design and powerful functionality. It is suitable for various industrial applications, offering high reliability and ease of use, making it an ideal choice for saving space and improving efficiency.
Need more information?
Contact us to request pricing, availability and customization options.
