Single phase and three phase digital electric KWH energy meter

What we have about DIN RAIL meters:

Digital meter single phase active electric power, Tiny control electricity meter modus, Slim line KWH meter, Digital Kilowatt Hour Meter, Din Rail Energy Meter, Digital kwh energy meter, RS485 Din rail kWh energy meter, Din Rail Meter, LCD Digital Electricity Meter, Single Phase Kilowatt Hour Meter with LCD Display, Kwh meter single phase 80a din rail mounting 2 modules, 230v Single Phase DIN Rail Kilowatt Hour KWH Meter 60hz, Single-phase DIN rail mounted kWh meter, 3 Phase Din Rail WIFI Smart Energy Meter, 40A Single Phase Single Module kWh Meter, Kwh meter single phase 80a din rail mounting 2 modules, 100A Din Rail Mounted Single Phase kWh Meter.



Description

Active electric energy meter. It is a single-phase consumption meter that allows to determine the kilowatt hours (KWh) consumed in an electrical installation. Digital display mode with backlit 6 + 1 digit LCD screen. Class 1 counter for alternating current in 50/60Hz networks and by 3200 imp/KWh. Meets the IC 62053-21 standard. The meter measures energy in two directions so it is ideal for controlling photovoltaic installations.



Specifications

Rated current: 5(100)A

Rated voltage: 127/230VAC

Pulse measurement: 3200 imp/KWh

AC Voltage withstand: 4Kv for 1min

Impulse voltage withstand: 6Kv-1.2/50us

Overcurrent withstand: 2400A / 0.5 Sec

Communication Protocol: Modbus RTU

Type of communication: RS485

 Operating temp: -15 to +50 °C

Compatible with 35mm DIN rail.

Connection by clip.






  5(40)A Single phase

  Slim type

  GEM015SD

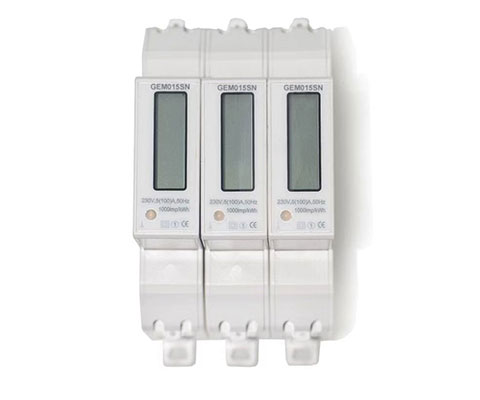

 5(100)A Single pole

 Tiny control

 GEM015SN

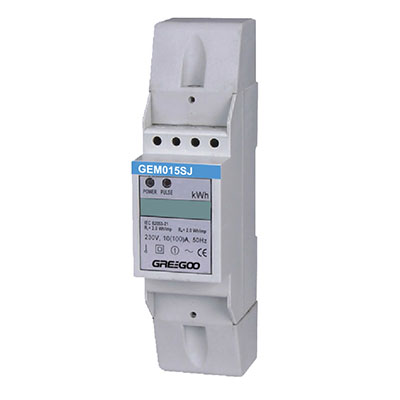

 5(100)A 2 modular width

 Standard DIN rail type

 GEM015SJ







 Single Phase 2P Digital KWH Meter

 Smart Electric Meters with RS485

 GEM015

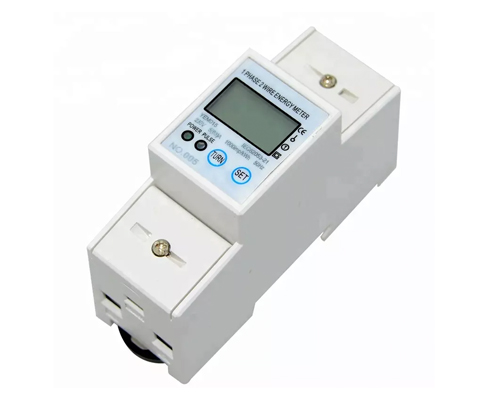

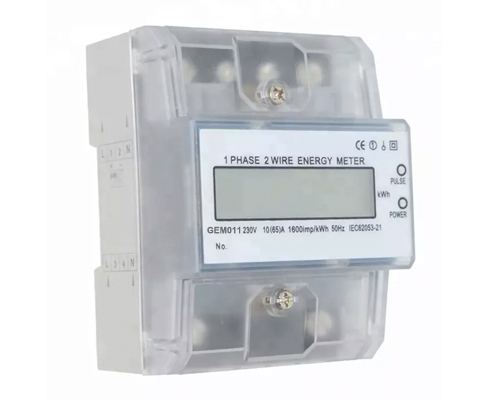

 Single phase 2 wire energy meter

 230V 10(65)A
 GEM011-2

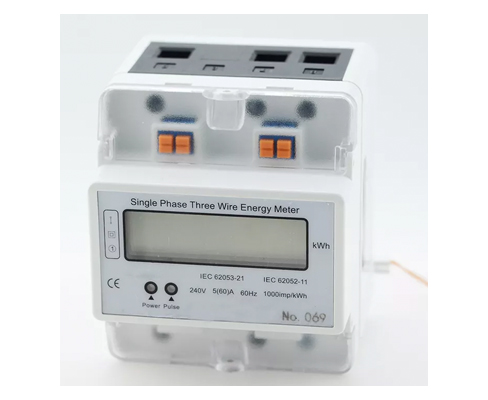

 Single phase Three wire energy meter

 240V 5(60)A 60Hz

 GEM011-3

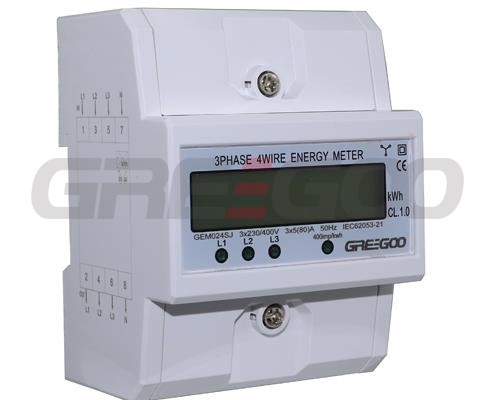

 5(100)A, 3 phase 4 wire, 4 modular width

 Standard type

 GEM024SJ

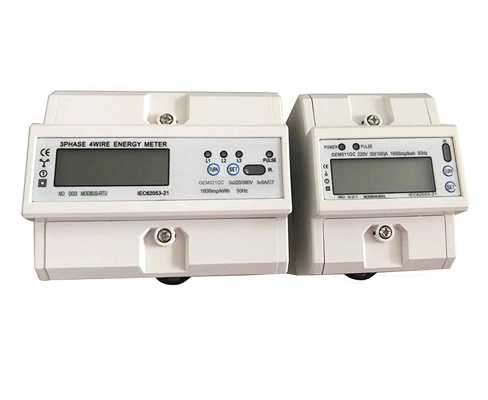

 MODBUS-RTU Single phase and

 three phase 4 wire energy meters

 GEM021GC 7 modular width

 GEM011GC 4 modular width

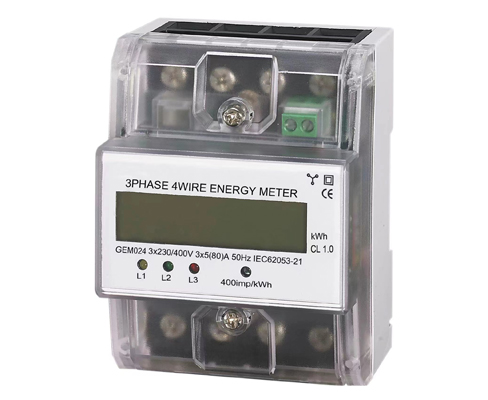

 3 Phase 4 Wire Energy Meter,

 4 modules digital meter

 Transparent Polycarbonate Cover

 GEM024

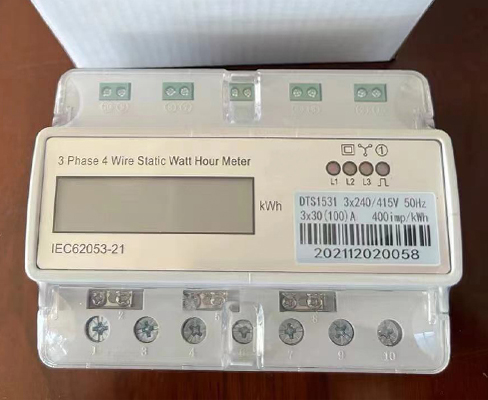

 3 Phase 4 Wire Static Watt Hour Meter

 3x30(100)A 3x240/415V 50Hz

 DTS1531

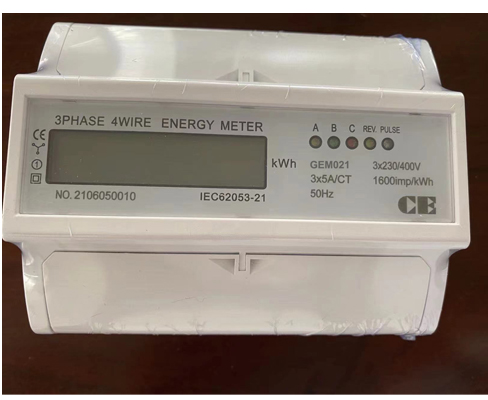

3 phase 4 wire 7 modules digital meter

 with 5A CT connection

 3x5A/CT, 3x230/400V, 50Hz

 GEM021SJ


 3 Phase 4 Wire Static Watt Hour Meter

 3x30(100)A 3x240/415V 50Hz

 DTS1531



If our standard types can't meet your demand, please fill in the below table and send us your special requirements, our R&D team can recommend or design for you. We are 100% sure we can meet your full demand in the line of modular active engery meters.
