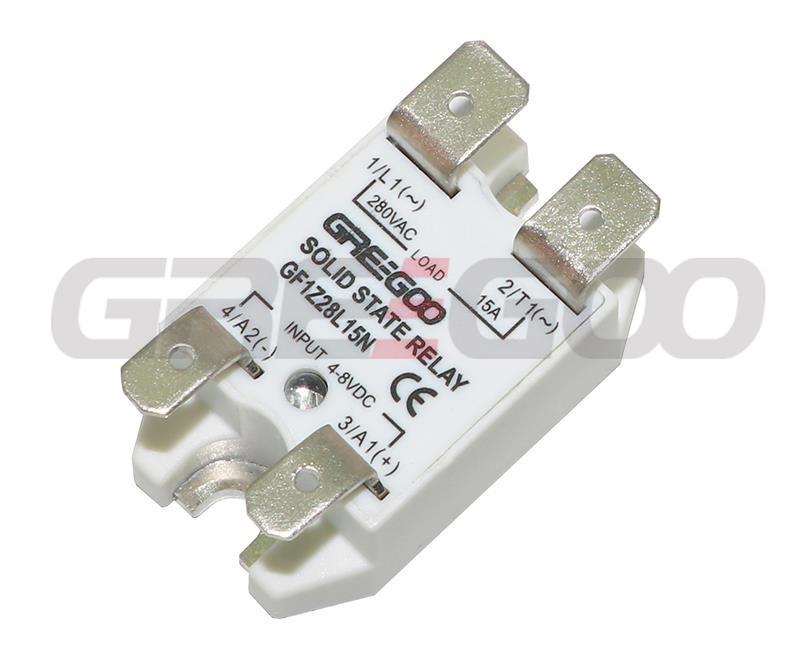

Single Phase Solid State Relays

The main differences between Solid State Relays (SSR) and Electromechanical Relays (EMR) lie in their structure and performance. SSRs have no mechanical contacts and use semiconductor devices for switching, offering longer lifespan, faster switching speeds, and noiseless operation, making them suitable for high-frequency operations and harsh environments. EMRs rely on electromagnetic coils to drive mechanical contacts, resulting in slower switching speeds, shorter lifespan, and noise during operation, and they are more sensitive to vibration and shock. SSRs consume less power and are ideal for applications requiring frequent switching, such as heating and motor control, while EMRs are suitable for general switching applications, especially where electrical isolation is needed.

SSRs have no mechanical parts, reducing the risk of arcing, making them more durable and reliable in high-frequency switching applications. Solid state relays can significantly decrease both downtime and maintenance costs.

The main differences between a Silicon Controlled Rectifier (SCR) module and a Solid State Relay (SSR) lie in their functions and composition. An SCR can regulate current by controlling the conduction angle, while an SSR primarily acts as a switch and cannot regulate current. A Solid State Relay consists of an SCR and a synchronous trigger drive, with an integrated isolation trigger terminal, whereas an SCR requires external isolation. Although they may have similar functions in some applications, they differ significantly in regulation capability and internal structure.

A freewheeling diode, also known as a flyback diode, is connected in parallel with an inductive load (e.g., motor, inductor, or transformer) in electronic circuits to provide a path for the current when the switching device (e.g., transistor, IGBT, or thyristor) turns off. This prevents voltage spikes caused by the inductive load’s stored energy, protecting the circuit and reducing electromagnetic interference (EMI).
