Product Details

Single phase solid state module

＊ High Dielectric strength over 4KV

＊ High Isolation strength over 100MΩ/500VDC

＊ High surge current sustenance

＊ High surge voltage sustenance

＊Conformity with EN60947-4-3 and EN60950

DC to AC Single Phase Solid State Module

Model	Output Current	Input Method	Output Voltage Range	Control method
SSR-10DA	10A	4-32VDC	24-380VAC	Zero cross control

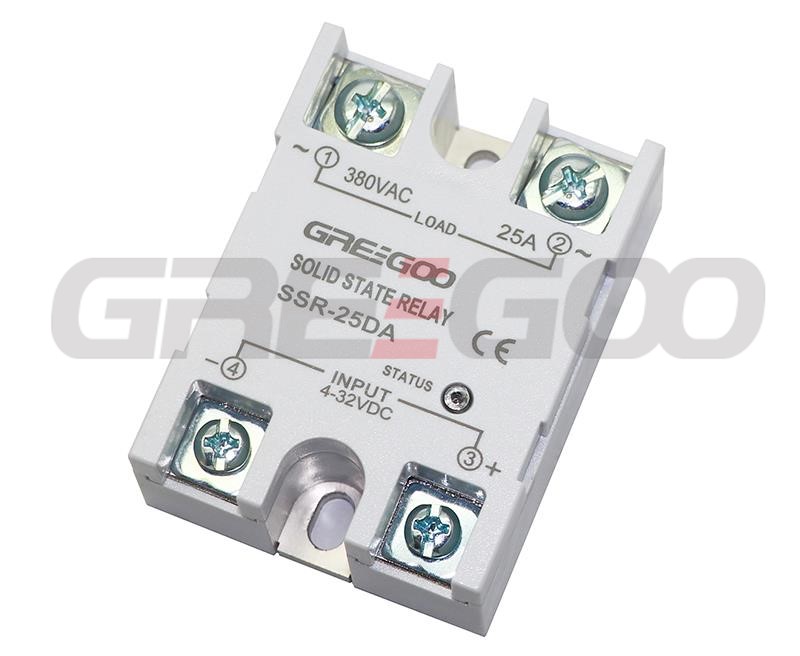

SSR-25DA	25A	4-32VDC	24-380VAC	Zero cross control

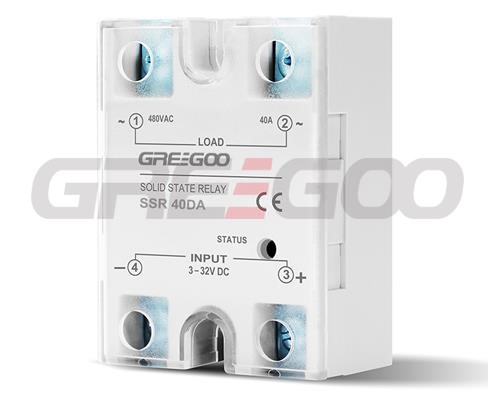

SSR-40DA	40A	4-32VDC	24-380VAC	Zero cross control

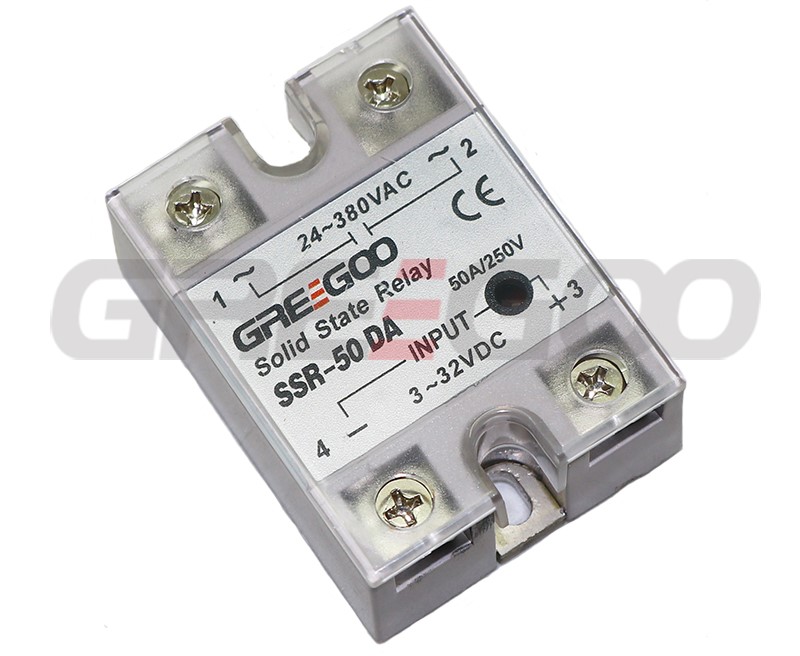

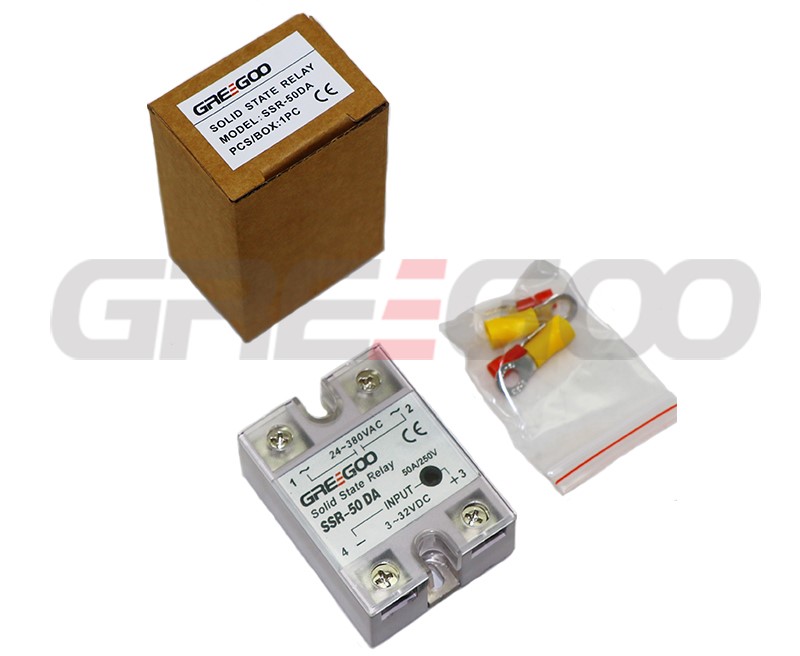

SSR-50DA	50A	4-32VDC	24-380VAC	Zero cross control

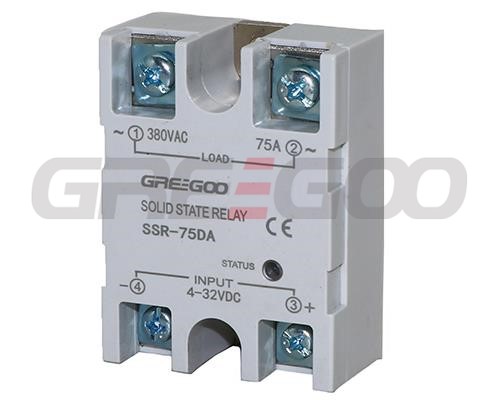

SSR-75DA	75A	4-32VDC	24-380VAC	Zero cross control
SSR-10DA-H	10A	4-32VDC	90-480VAC	Zero cross control
SSR-25DA-H	25A	4-32VDC	90-480VAC	Zero cross control
SSR-40DA-H	40A	4-32VDC	90-480VAC	Zero cross control
SSR-50DA-H	50A	4-32VDC	90-480VAC	Zero cross control
SSR-75DA-H	75A	4-32VDC	90-480VAC	Zero cross control
SSR-10DA-R	10A	4-32VDC	24-380VAC	Random control
SSR-25DA-R	25A	4-32VDC	24-380VAC	Random control
SSR-40DA-R	40A	4-32VDC	24-380VAC	Random control
SSR-50DA-R	50A	4-32VDC	24-380VAC	Random control
SSR-75DA-R	75A	4-32VDC	24-380VAC	Random control
SSR-10DA-HR	10A	4-32VDC	90-480VAC	Random control
SSR-25DA-HR	25A	4-32VDC	90-480VAC	Random control
SSR-40DA-HR	40A	4-32VDC	90-480VAC	Random control
SSR-50DA-HR	50A	4-32VDC	90-480VAC	Random control
SSR-75DA-HR	75A	4-32VDC	90-480VAC	Random control

AC to AC Single Phase Solid State Module

Model	Output Current	Input Method	Output Voltage Range	Control method
SSR-10AA	10A	80-250VAC	24-380VAC	Zero cross control
SSR-25AA	25A	80-250VAC	24-380VAC	Zero cross control
SSR-40AA	40A	80-250VAC	24-380VAC	Zero cross control
SSR-50AA	50A	80-250VAC	24-380VAC	Zero cross control
SSR-75AA	75A	80-250VAC	24-380VAC	Zero cross control
SSR-10AA-H	10A	80-250VAC	90-480VAC	Zero cross control
SSR-25AA-H	25A	80-250VAC	90-480VAC	Zero cross control
SSR-40AA-H	40A	80-250VAC	90-480VAC	Zero cross control
SSR-50AA-H	50A	80-250VAC	90-480VAC	Zero cross control
SSR-75AA-H	75A	80-250VAC	90-480VAC	Zero cross control
SSR-10AA-R	10A	80-250VAC	24-380VAC	Random control
SSR-25AA-R	25A	80-250VAC	24-380VAC	Random control
SSR-40AA-R	40A	80-250VAC	24-380VAC	Random control
SSR-50AA-R	50A	80-250VAC	24-380VAC	Random control
SSR-75AA-R	75A	80-250VAC	24-380VAC	Random control
SSR-10AA-HR	10A	80-250VAC	90-480VAC	Random control
SSR-25AA-HR	25A	80-250VAC	90-480VAC	Random control
SSR-40AA-HR	40A	80-250VAC	90-480VAC	Random control
SSR-50AA-HR	50A	80-250VAC	90-480VAC	Random control
SSR-75AA-HR	75A	80-250VAC	90-480VAC	Random control

Download

Fotek type of AC switching solid state relays (single phase) (PDF)
