1-Phase Solid State Contactors

Date: 2025.10.23 Views: 1683

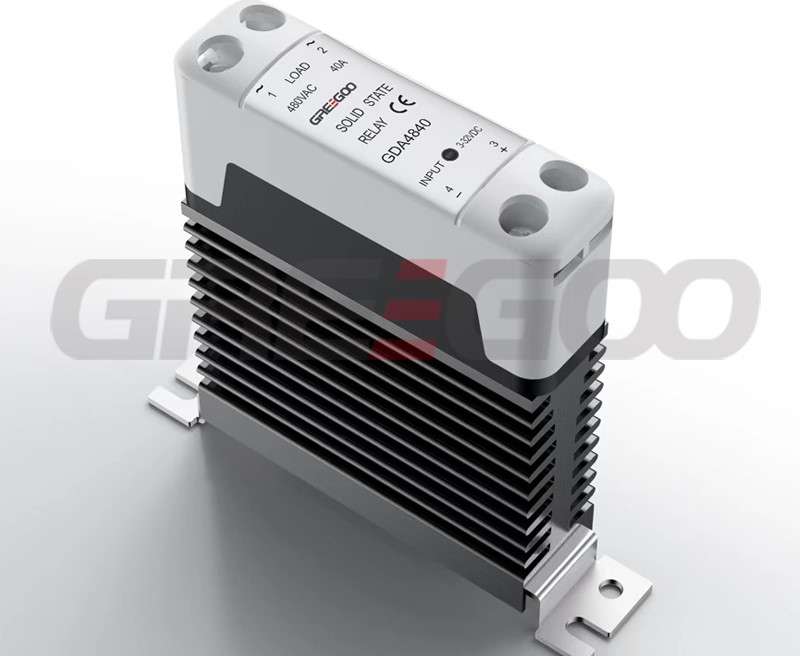

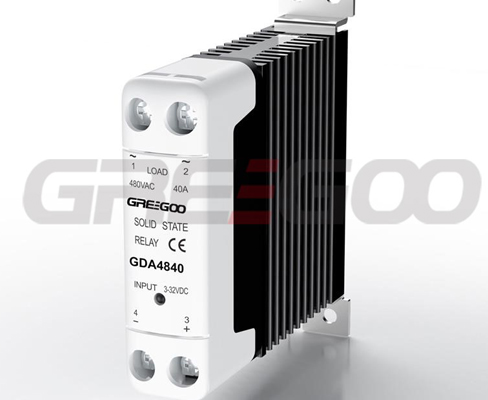

This slimline solid state contactors present a unique opportunity for panel space savings thanks to their very slim footprint. The SSR is the ready-to-use range that is provided with an integrated heatsink. The smallest footprint occupies only a width of 17.5 mm with ratings up to 60A. The power and control terminals allow for safe looping of cables. Spring loaded pluggable control terminals are an option when faster installation time is required.

Benefits:

Panel space savings.
Less maintenance costs.
Low machine downtime.
Ease of use.
Fast wiring.
Protection against SSR overheat.

Applications

Plastic injection machines, Extrusion machines, Blow moulding machines, Dryers, Electrical ovens, Fryers, Shrink tunnels, Air handling units, Climatic chambers, Ovens and furnaces, Ambient heating.

Main features

Ratings: 15A, 25A, 40A and 60A
Output voltage: 480Vac and 600Vac
Control voltage: 4-32Vdc, 90-280Vac
Integrated IP20 touch-safe removable covers
Din rail mount
Zero cross or instantaneous (resistive or inductive loads)
