Function and Application of Fast Vacuum Contactor as Bypass Switch

When used as a bypass switch, a fast vacuum contactor has specific function and application.

Function

1. Bypass Function: A fast vacuum contactor can be used as a bypass switch to directly connect the power supply to the load when the main equipment (such as a frequency converter or soft starter) requires maintenance or is faulty.


2. Fast Switching: It can quickly switch between the main circuit and the bypass circuit, ensuring continuity of power supply.


3. Arc Suppression: In a vacuum environment, arcs can be quickly extinguished, reducing damage to equipment and improving system safety and reliability.


4. High Durability: With reduced arc impact, the contactor has a longer lifespan, suitable for frequent operations.

Application

1. Motor Control Systems: In motor control systems, a fast vacuum contactor as a bypass switch can directly connect the motor to the power supply when the frequency converter or soft starter fails, ensuring continuous production.


2. Power System Maintenance: In power systems, a fast vacuum contactor can be used for equipment maintenance and repair, allowing operations without interrupting the power supply.


3. Emergency Power Supply: In situations requiring emergency power supply, a fast vacuum contactor can quickly switch to bypass mode, providing stable power supply.


4. Industrial Automation: In industrial automation systems, a fast vacuum contactor as a bypass switch can enhance system flexibility and reliability.



Fast vacuum contactors, when used as bypass switches, are widely applied in scenarios requiring efficient power management and continuous power supply due to their fast switching and high reliability.

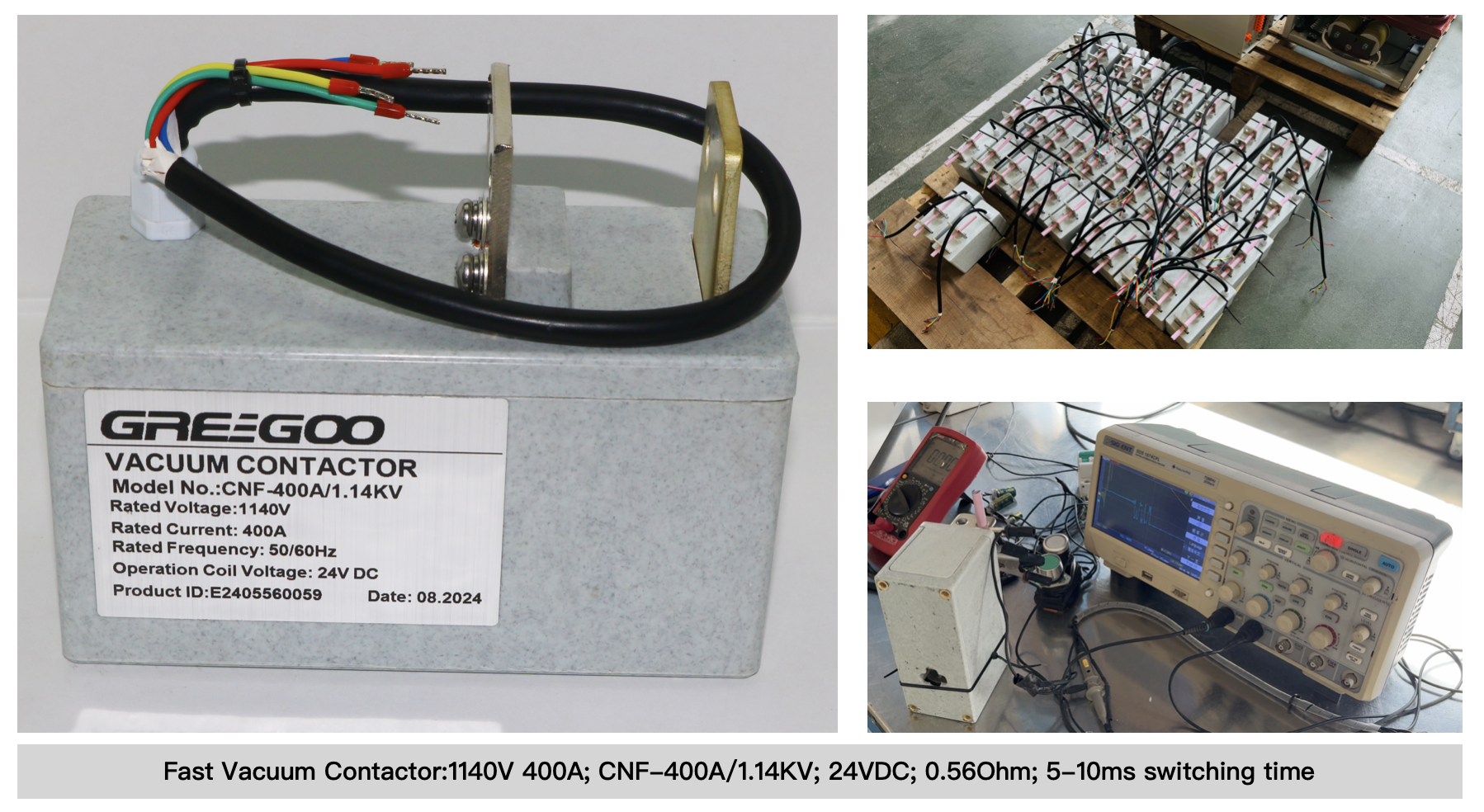

CNF-400A/1.14KV fast vacuum contactor is currently in mass production and undergoing testing
