Applications and Customization Services of DC Solid State Relays

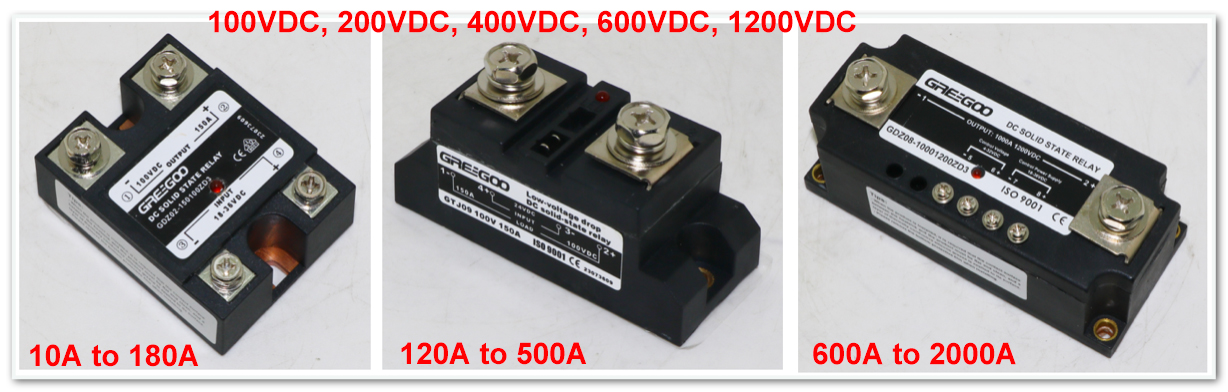

Greegoo's DC solid state relays are user-friendly and can be custom-made, such as low voltage drop, fast switching, high frequency, high voltage, wide range of control voltage, built-in freewheeling diode, over-current protection, potentiometer, 4-20mA, 0-10V or 0-5V control DC relay, automotive SSR, AC converter to DC SSR, DC motor reversing SSR, multi-output DC SSR, and normally closed DC SSR, etc. If you can't find a suitable model, please send us your application, function requirements, continuous load current, voltage, and their peaks online, and we will recommend an appropriate one for you.
What's the benefit of low voltage drop dc solid state relay?
The benefits of low voltage drop dc ssr relays include:
- Improved Energy Efficiency: Low voltage drop means less energy is lost in the circuit, thereby improving overall energy efficiency.
- Reduced Heat Generation: Lower voltage drop reduces power loss in the circuit, which in turn reduces heat generation and extends the lifespan of the equipment.
- Enhanced Voltage Stability: Low voltage drop helps maintain voltage stability, ensuring that devices operate under stable voltage conditions, thereby reducing failure rates.
- Cost Savings: Reduced energy loss leads to lower power consumption, saving on electricity bills and cooling costs.
- Increased System Reliability: Low voltage drop reduces stress on the circuit, enhancing the reliability and stability of the system.

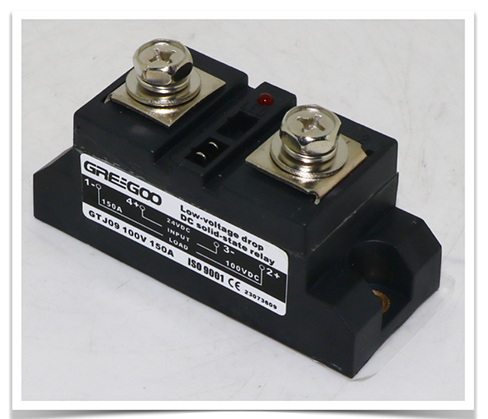

Low Voltage Drop DC SSR relay
What's the application of high frequency dc solid state relay?
High-frequency DC solid state relays (DC SSR) are used in various applications where rapid switching and high efficiency are required. Some of the key applications include:
-
Communication Equipment: In communication systems, high-frequency DC SSRs are used to quickly switch signal paths, ensuring stable and reliable signal transmission.
-
Power Management: In power management systems, high-frequency DC SSRs are used to rapidly switch power paths, providing efficient power distribution and management.
-
Testing Equipment: In electronic testing equipment, high-frequency DC SSRs are used to quickly switch test signals, ensuring efficient and accurate testing processes.
-
Industrial Automation: In industrial automation systems, high-frequency DC SSRs are used to rapidly switch control signals, ensuring efficient operation and quick response times of machinery and equipment.
-
Medical Devices: In medical devices, high-frequency DC SSRs are used to quickly switch power and signal paths, ensuring the stability and reliability of the equipment.
These applications highlight the importance of high-frequency DC SSRs in systems that require rapid switching and high operational efficiency.
Where we may use a normally closed (NC) type DC solid state relays?
We need to use normally closed type DC solid state relays (DC SSR) in the following scenarios:
- Safety Systems: In safety systems, normally closed DC SSRs are used to ensure that the system remains in a closed state, providing continuous safety protection in the event of a power failure or loss of control signal. Examples include emergency stop buttons and safety door lock systems.
- Battery Management Systems: In battery management systems (BMS), normally closed DC SSRs can be used to maintain a connection in the event of a system failure, ensuring that the battery remains operational and protected.
- Fail-Safe Mechanisms: In applications where fail-safe operation is critical, normally closed DC SSRs ensure that the circuit remains closed and operational even if the control signal is lost, thus preventing potential hazards.
- Power Supply Systems: In power supply systems, normally closed DC SSRs can be used to ensure that power is continuously supplied to critical components, even during control signal interruptions.
- Industrial Automation: In industrial automation, normally closed DC SSRs are used to maintain the operation of essential machinery and equipment in the event of control system failures, ensuring minimal downtime and maintaining productivity.
These scenarios highlight the importance of normally closed DC SSRs in maintaining safety, reliability, and continuous operation in various critical applications.
