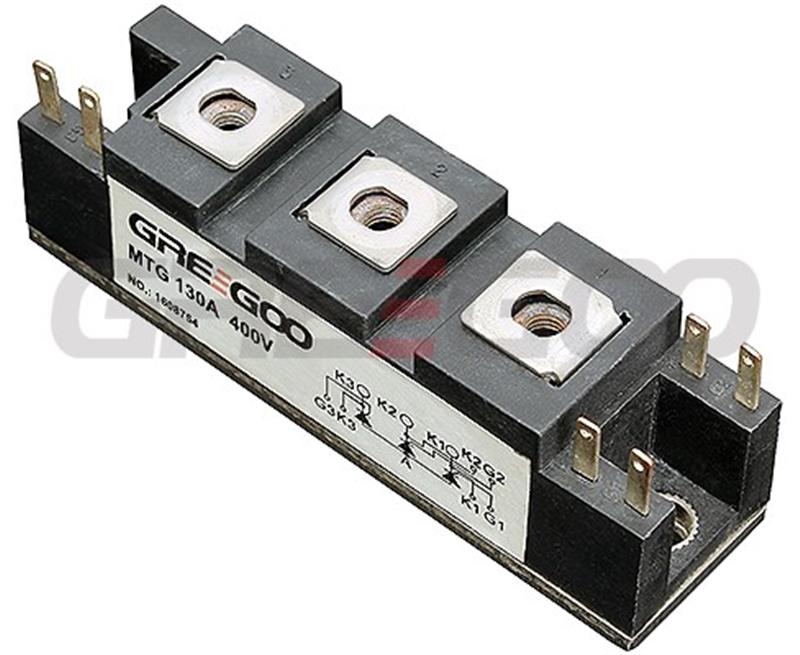

MTG-130A 3 phase thyristor module
130A three phase thyristor module Features - Non-Isolated. Mounting base as common- Pressure contact technology with Increased power cycling capability - Low on-state voltage drop Typical Application - Welding Power Supply - Various DC Power supplies - DC supply for PWM inverter |
IT(AV):130A; VDRM/VRRM:200-600V; ITSM:4.50A×103; I2t:103A2S*103
Symbol | Characteristic | Test conditions | TJ(oC) | Value | Unit | ||
Min | Type | Max | |||||
IT(AV) | Mean on-state current | 180o half sine wave 50Hz Single side cooled, Tc=110oC |
140 | 130 | A | ||
IT(RMS) | RMS on-state current | 140 | 204 | A | |||
VDRM VRRM |
Repetitive peak off-state voltage Repetitive peak reverse voltage |
VDRM&VRRM tp=10ms VDSM&VRSM= VDRM&VRRM 200V respectively |
140 | 200 | 600 | V | |
IDRM IRRM |
Repetitive peak current | at VDRM at VRRM |
140 | 12 | mA | ||
ITSM | Surge on-state current | 10ms half sine wave VR=60%VRRM |
140 | 4.50 | KA | ||
I2t | I2t for fusing coordination | 103 | A2s*103 | ||||
VTO | Threshold voltage | 140 | 0.80 | V | |||
rT | On-state slop resistance | 1.10 | mΩ | ||||
VTM | Peak on-state voltage | ITM=180A | 25 | 1.40 | V | ||
dv/dt | Critical rate of rise of off-state voltage | VDM=67%VDRM | 140 | 800 | V/μs | ||
di/dt | Critical rate of rise of on-state current | Gate source 1.5A tr ≤0.5μs Repetitive |
140 | 100 | A/μs | ||
IGT | Gate trigger current | VA=12V, IA=1A | 25 | 30 | 150 | mA | |
VGT | Gate trigger voltage | 0.8 | 2.5 | V | |||
IH | Holding current | 20 | 200 | mA | |||
VGD | Non-trigger gate voltage | At 67%VDRM | 140 | 0.2 | V | ||
Rth(j-c) | Thermal resistance Junction to case | Single side cooled | 0.200 | oC/W | |||
Rth(c-h) | Thermal resistance case to heat sink | Single side cooled | 0.1 | oC/W | |||
Fm | Thermal connection torque (M5) | 6.0 | N·m | ||||
Mounting torque (M6) | 6.0 | N·m | |||||
Tstg | Stored temperature | -40 | 125 | oC | |||
Wt | Weight | 380 | g |
