15KV HV Relay GHR-2-WF

Home Products Vacuum Relay and Capacitor15KV vacuum relays15KV HV Relay GHR-2-WF

15KV HV Relay GHR-2-WF
15KV HV Relay GHR-2-WF
15KV HV Relay GHR-2-WF
15KV HV Relay GHR-2-WF
15KV HV Relay GHR-2-WF

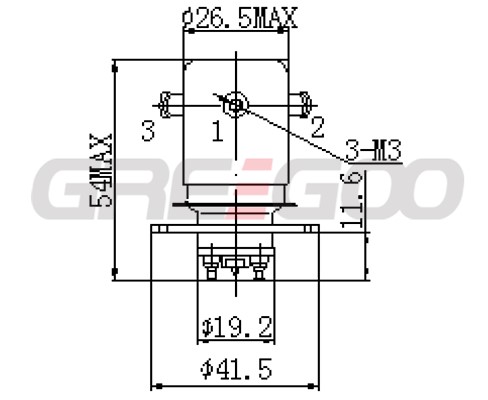

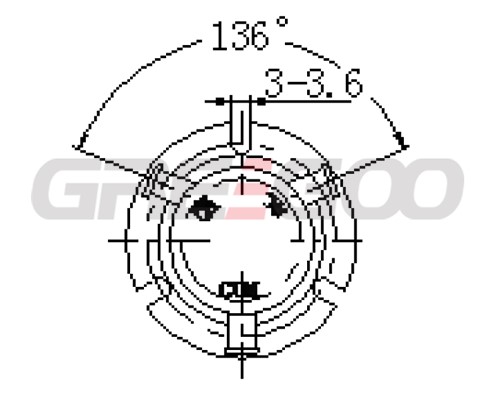

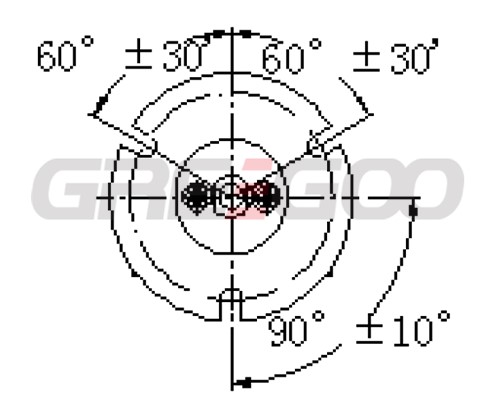

Specification

15KV HV Relay GHR-2-WF

Product Specification

Units

GHR-2-WF

Contact Form



C

Contact Arrangement



SPDT

Test Voltage,(kV, Peak), Test Max., Contacts & to Base (15 μA Leakage Max., dc or 60Hz)

KV Peak

17

Rated Operating Voltage,

(kV,Peak),
Contacts & to Base
(15 μA Leakage Max.)

DC or 60Hz

KV Peak

15

2.5MHz

KV Peak

12

16MHz

KV Peak

9

32MHz

KV Peak

7

Continuous Current,

Carry Max

DC or 60Hz

Amps

50

2.5MHz

Amps

30

16MHz

Amps

17

32MHz

Amps

10

Coil Hi -Pot (V RMS, 60 Hz)

V

500

Capacitance

Across Open Contacts

pF

0.5

Contacts to Ground

pF

1

Resistance, Contact Max @ 1A, 28Vdc

Ω

0.012

Operate Time, Max

ms

15

Release Time, Max

ms

9

Operating Temperature Ambient

°C

-55~ 125

Shock, 1/2 Sine11ms (Peak)

G’s

50

Vibration, Sine (10-2000 Hz Peak)

G’s

10

Mechanical Life

Cycles

1 million

Weight

g

84

Coil Rating


Nominal, Volts dc

220

110

27

24

12

Pick-up, Volts dc,Max

150

70

16

16

8

Drop-Out, Volts dc,Min

10

2

1.5

1.5

0.5

Coil Resistance (Ω±10%)

10000

5400

270

180

48

※ Ratings listed are for 25°C

Product Details

◆Vacuum dielectric for low and stable contact resistance

◆Usable at frequencies above 32 MHz
◆Carries 50 Amps at DC
◆Not designed for power switching
