4RCBE single modular rcbo

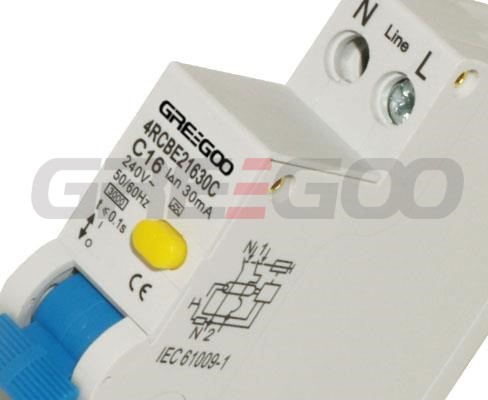

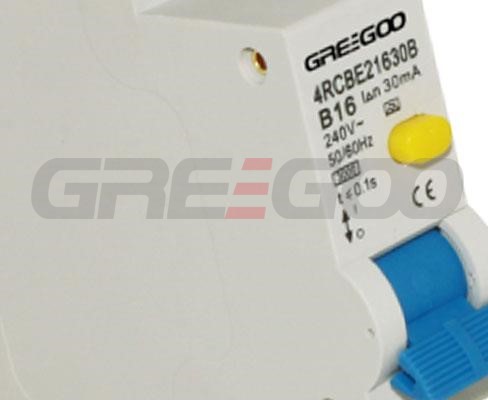

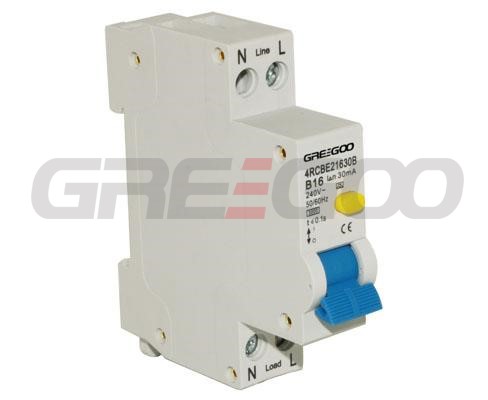

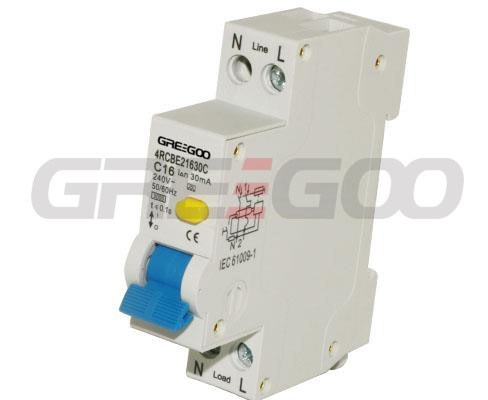

Greegoo’s new DIN mounted, 30mA combination RCD/MCBs are available as single pole devices to save valuable switchboard space.Just 18mm wide and available in 6 current ratings, these combination devices have a short circuit interrupting capacity of 3kA, rated at 240V, 30/10mA, with a thermal/overload protection C - Curve.
Applications
- Suitable for residential, commercial and industrial applications.
- Ideal for retrofit installations where pole space is a problem.
- Small width allows a greater number of RCD/MCBs to be installed in the one enclosure.
- 1 Module width is ideal for new installations where space is limited.
- Combination Head Screws for quick and easy termination.

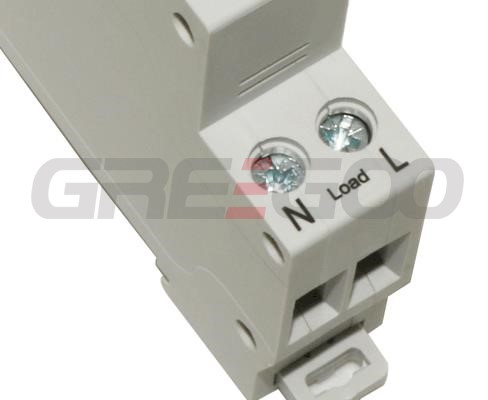

- Lift-up terminals for safer ‘no hot spot’ termination. All wires are locked in.
Model Number | 4RCBE | |
Tripping Mode | ELECTRONIC TYPE | |
Pole No. | Pole | 1P |
Standard Conformity | IEC 61009-1 | |
Tripping Characteristic | B/C | |
Rated Current (In) | A | 6, 10, 16, 20, 25, 32 |
Sensitivity (I △ n) | mA | 30, 100 |
Residual Tripping Current Range | 0.5I △ n~1I △ n | |
Rated Voltage (Un) | Vac | 230/240 |
Rated Insulation Voltage (Ui) | V | 660 |
Rated Frequency | Hz | 50/60 |
Type | AC/A | |
Tripping Time | S | ≤0.1 |
Shortcircuit Withstand Capacity | kA | 3 |
Ambient Temperature | oC | -25 to 40 |
Electrical Mechanical Operation | cycles | 4000 |
Mounting | Din Rail (35 * 7.5) mm | |
Degree of Protection | IP 20 | |
Terminal Capacity (max) | mm2 | 10~16 |
Connection Terminals | Screw Terminals 2.0Nm | |
Certificate | CE |
Model Selection
Rated Current (A) | 30mA | 100mA | ||
6A | 4RCBE20630C | 4RCBE20630B | 4RCBE206100C | 4RCBE206100B |
10A | 4RCBE21030C | 4RCBE21030B | 4RCBE210100C | 4RCBE210100B |
16A | 4RCBE21630C | 4RCBE21630B | 4RCBE216100C | 4RCBE216100B |
20A | 4RCBE22030C | 4RCBE22030B | 4RCBE220100C | 4RCBE220100B |
25A | 4RCBE22530C | 4RCBE22530B | 4RCBE225100C | 4RCBE225100B |
32A | 4RCBE23230C | 4RCBE23230B | 4RCBE232100C | 4RCBE232100B |
