6KA RCBO
PDF

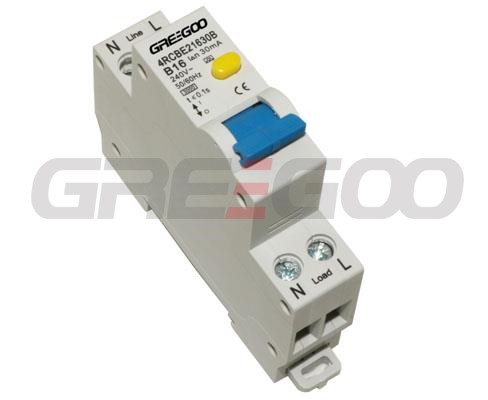

Residual current operated circuit breakers with integral overcurrent protection (RCBO)

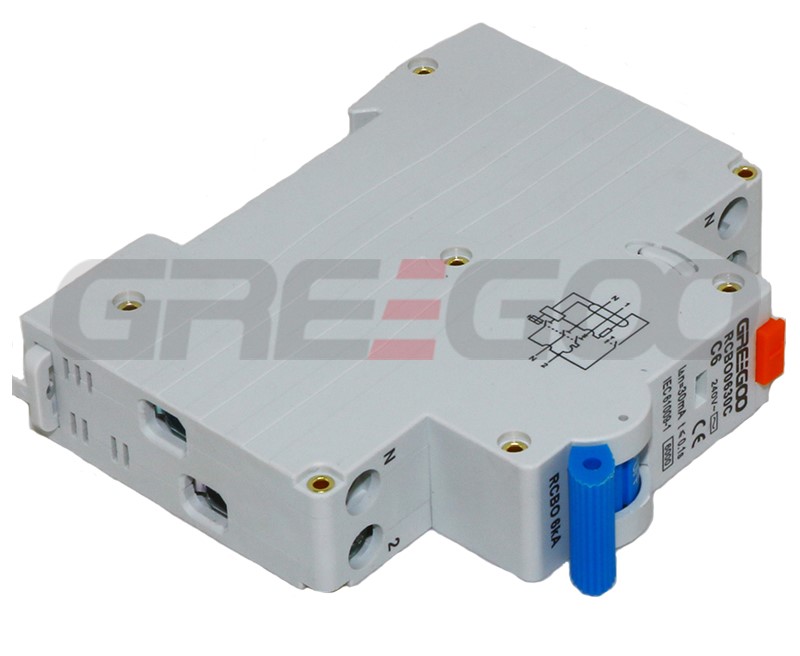

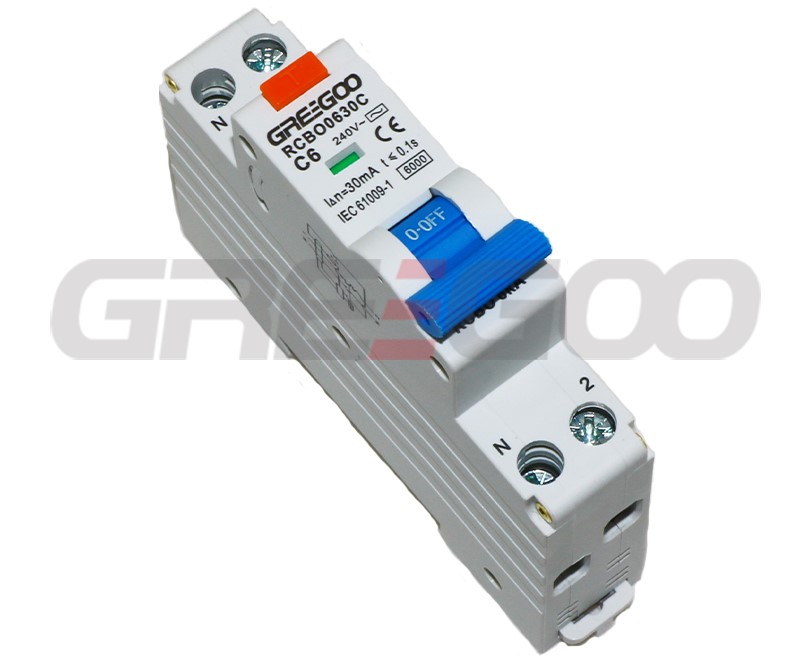

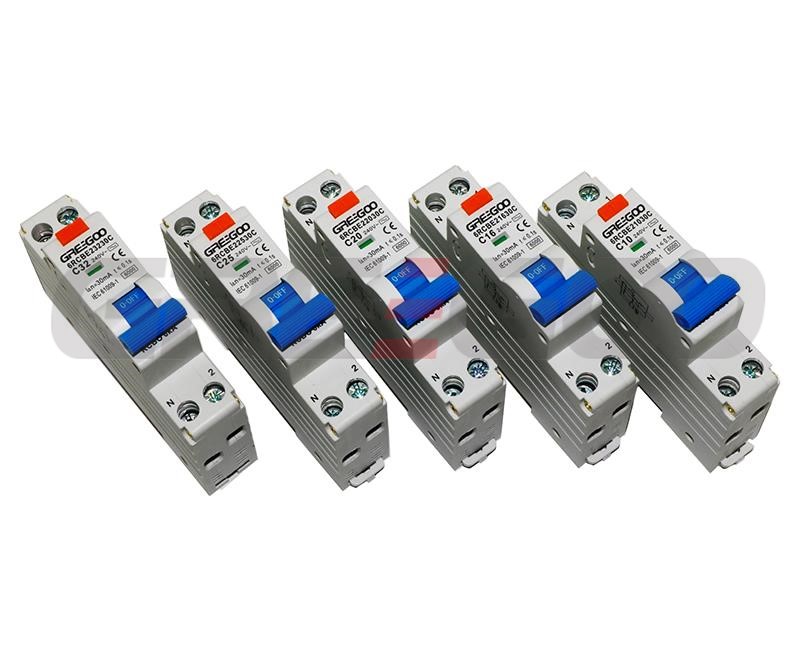

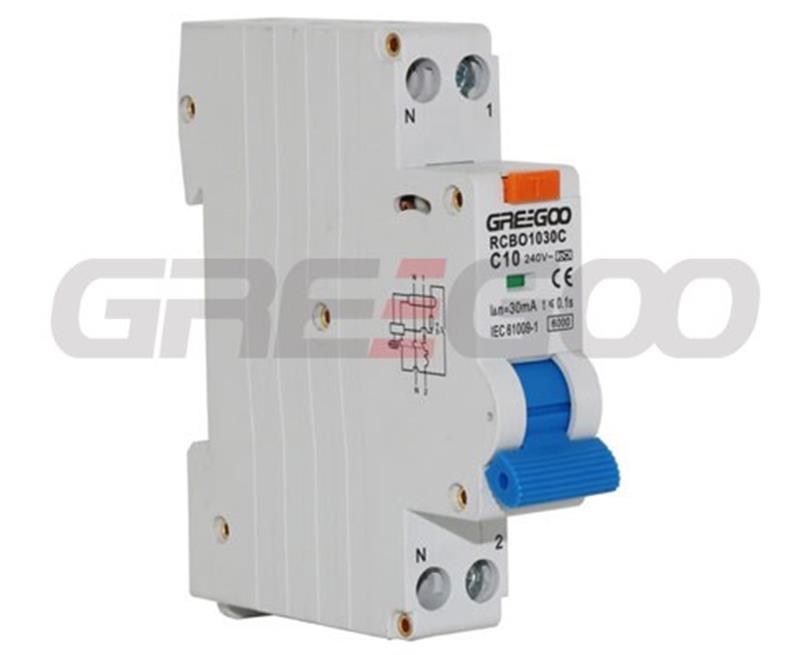

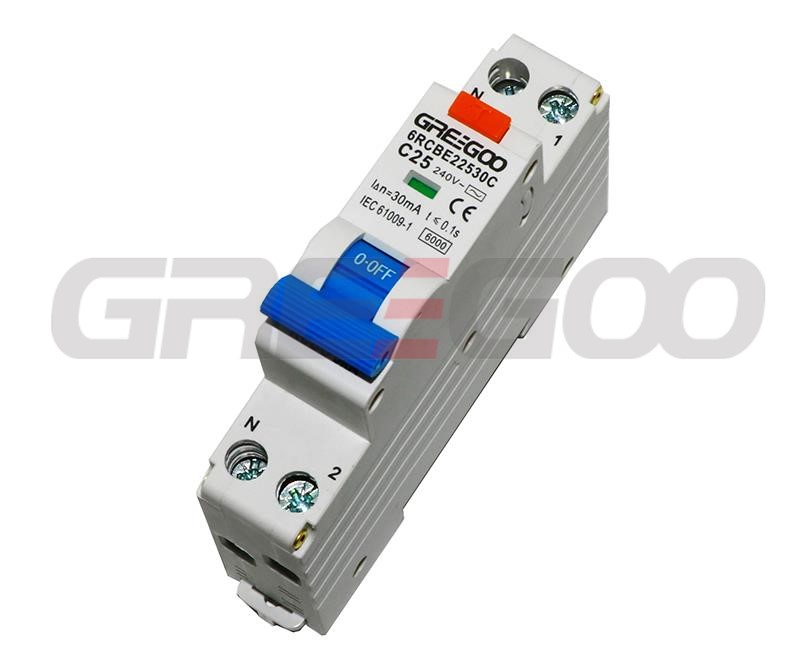

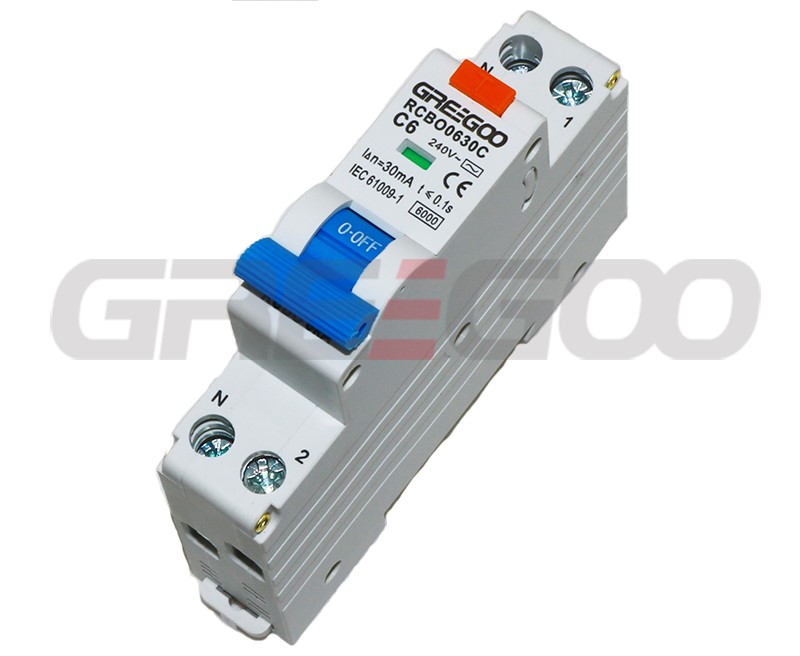

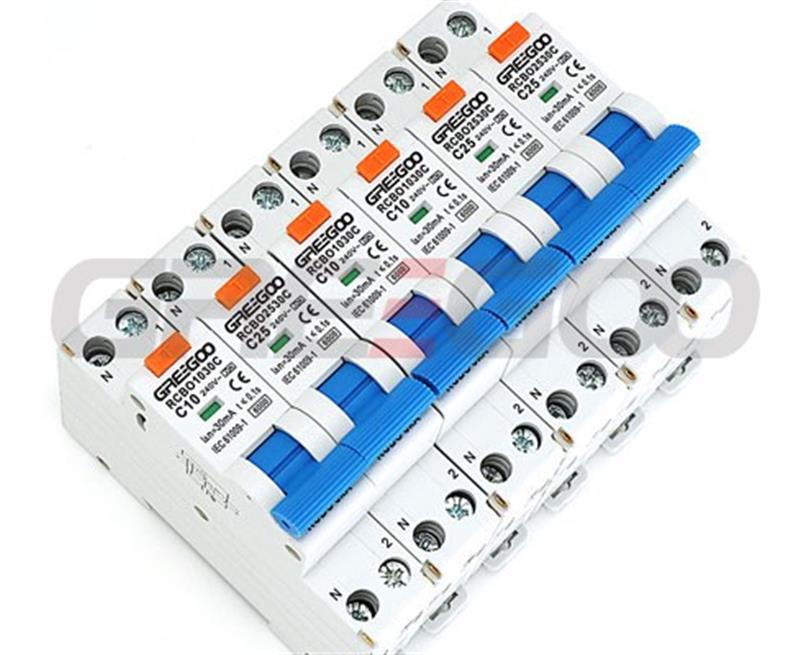

Greegoo’s new DIN mounted, combination RCD/MCBs are available as single pole devices to save valuable switchboard space. Just 18mm (1 modular width) available in current ratings of 6A, 10A, 13A, 16A, 20A, 25A, 32A and 40A, these combination devices have a short circuit interrupting capacity of 6kA, rated at 240V, 10/30/100/300mA, with a thermal/overload protection B,C - Curve.
- Suitable for residential, commercial and industrial applications.
- Ideal for retrofit installations where pole space is a problem.
- Small width allows a greater number of RCD/MCBs to be installed in the one enclosure.
- 1 Module width is ideal for new installations where space is limited.
- Combination Head Screws for quick and easy termination.
- Lift-up terminals for safer ‘no hot spot’ termination. All wires are locked in.
| Main technical parameters | ||
| Model Number | RCBO 6RCBE | |
| Tripping Mode | ELECTRONIC TYPE | |
| Pole No. | Pole | 1P (1P+N) |
| Standard Conformity |
IEC 61009-1:2010+A1+A2, IEC61009-2-2:1991 AS/NZS 61009.1:2015 |
|

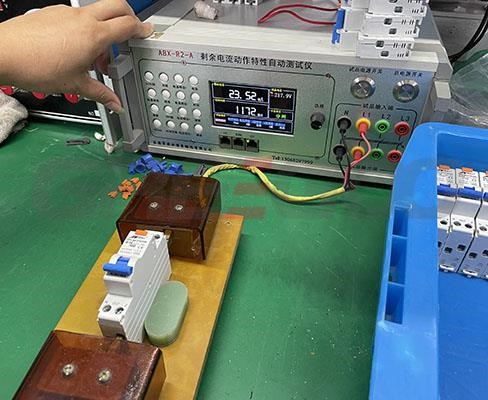

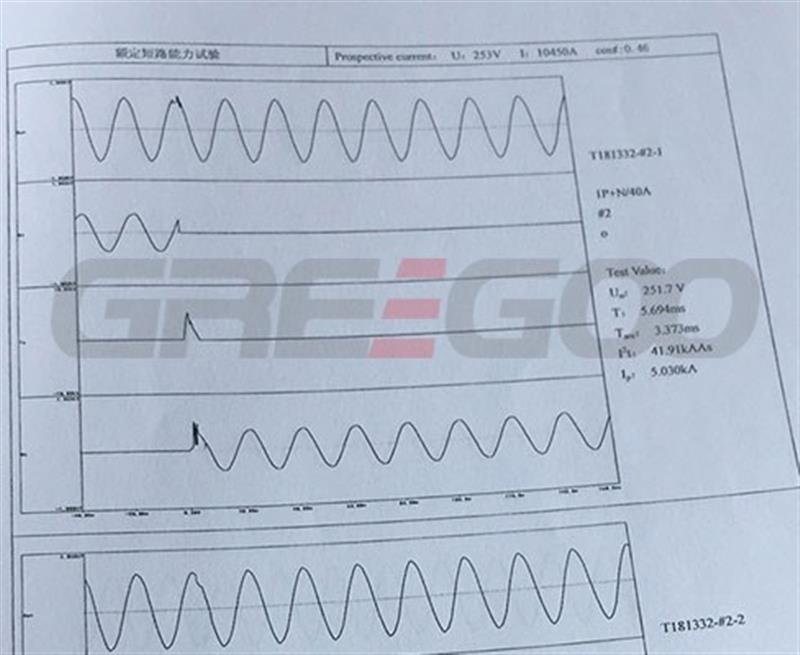

| Tripping Characteristic | B/C | |
| Rated Current (In) | A | 6, 10, 13, 16, 20, 25, 32,40 |
| Sensitivity (I △ n) | mA | 10, 30, 100, 300 |
| Residual Tripping Current Range | 0.5I △ n~1I △ n | |
| Rated Voltage (Un) | Vac | 230/240 |
| Rated Insulation Voltage (Ui) | V | 660 |
| Rated Frequency | Hz | 50/60 |
| Type | AC/A | |
| Tripping Time | S | ≤0.1 |
| Shortcircuit Withstand Capacity | kA | 6KA (Ics:7500A, Icn:10000A) |
| Ambient Temperature | oC | -25 to +40 |
| Electrical Mechanical Operation | cycles | 4000 |
| Mounting | Din Rail (35 * 7.5) mm | |
| Degree of Protection | IP 20 | |
| Terminal Capacity (max) | mm2 | 10~16 |
| Connection Terminals | Screw Terminals 2.0Nm | |
| Certificate | CE,CB, SAA | |
Model Selection:

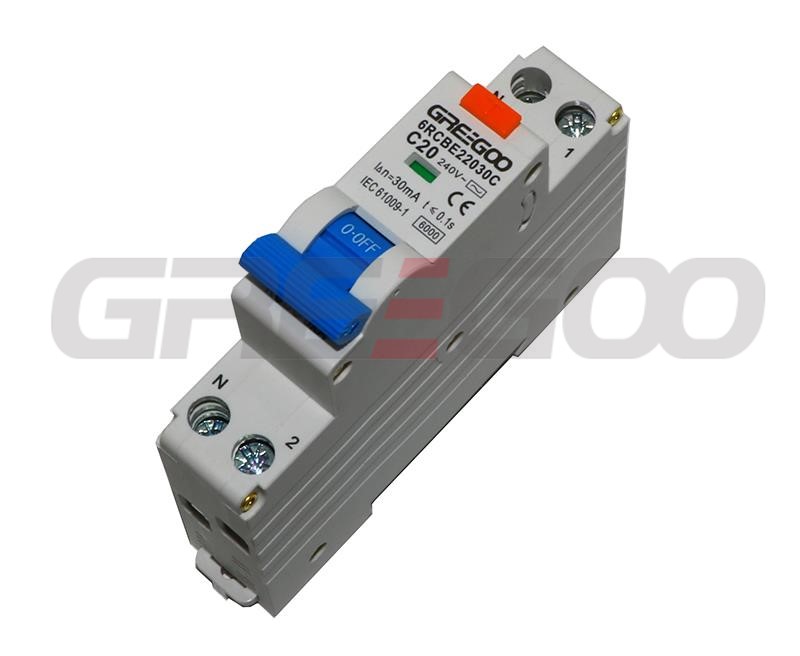

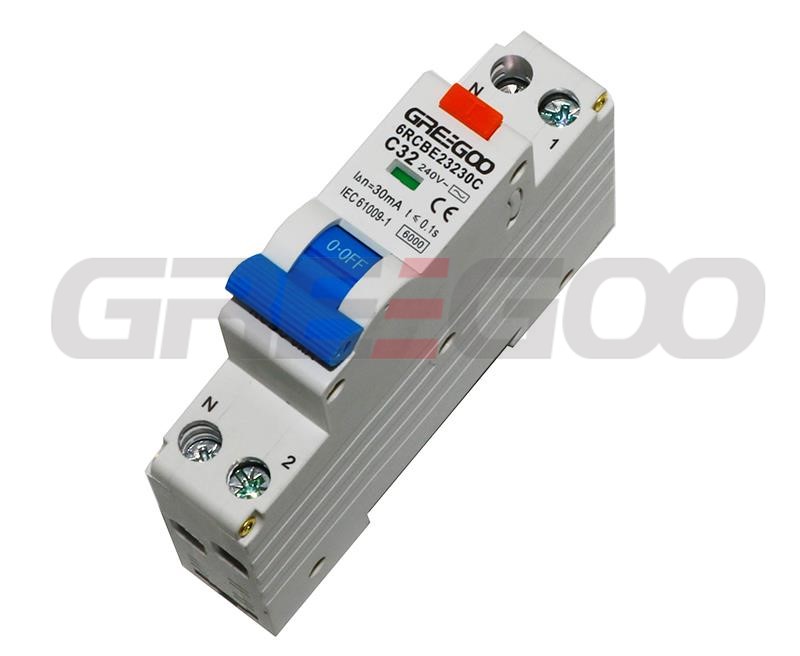

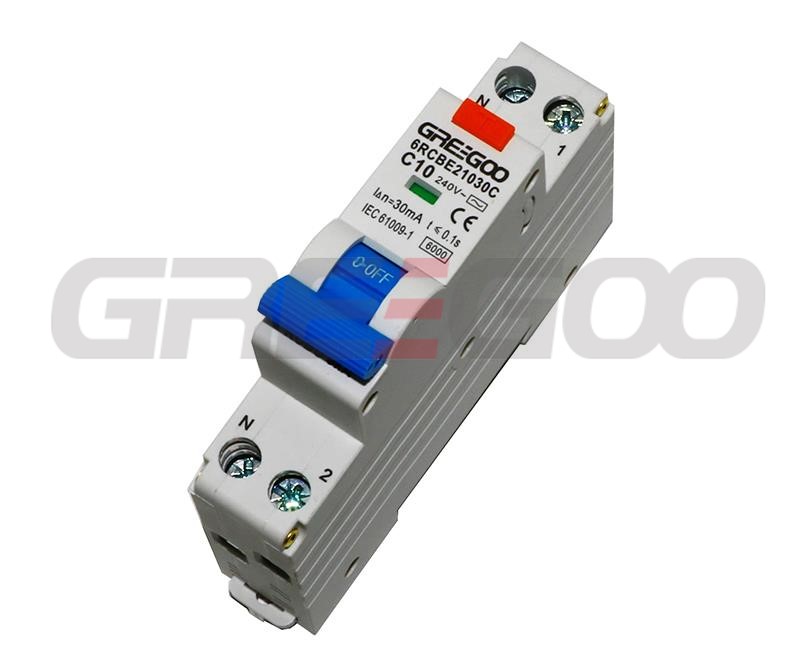

| Rated Current (A) | 30mA | 100mA | ||
| 6A | 6RCBE20630C | 6RCBE20630B | 6RCBE206100C | 6RCBE206100B |
| 10A | 6RCBE21030C | 6RCBE21030B | 6RCBE210100C | 6RCBE210100B |
| 13A |
6RCBE21330C |
6RCBE21330B |
6RCBE213100C |
6RCBE213100B |
| 16A | 6RCBE21630C | 6RCBE21630B | 6RCBE216100C | 6RCBE216100B |
| 20A | 6RCBE22030C | 6RCBE22030B | 6RCBE220100C | 6RCBE220100B |
| 25A | 6RCBE22530C | 6RCBE22530B | 6RCBE225100C | 6RCBE225100B |
| 32A | 6RCBE23230C | 6RCBE23230B | 6RCBE232100C | 6RCBE232100B |
| 40A | 6RCBE24030C | 6RCBE24030B | 6RCBE240100C | 6RCBE240100B |
