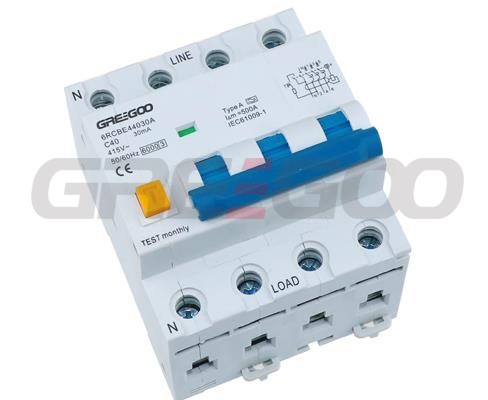

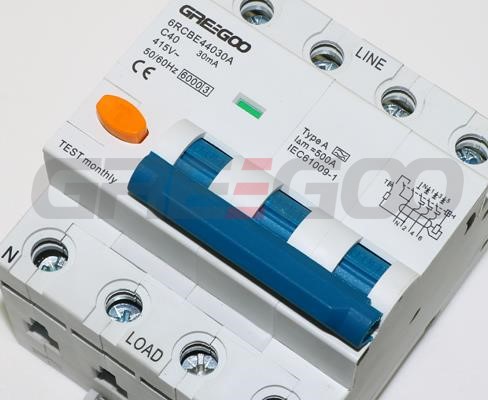

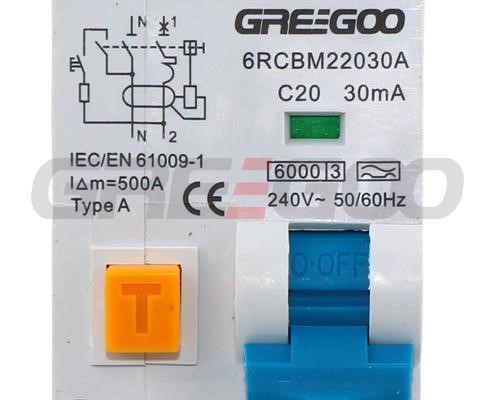

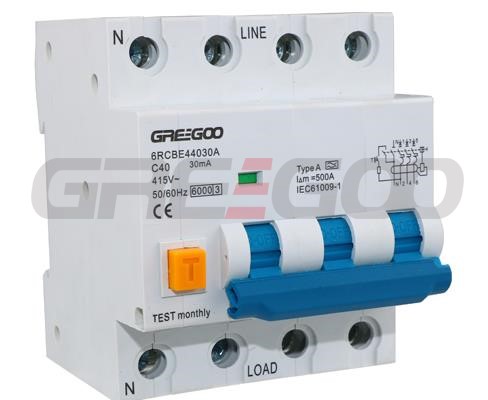

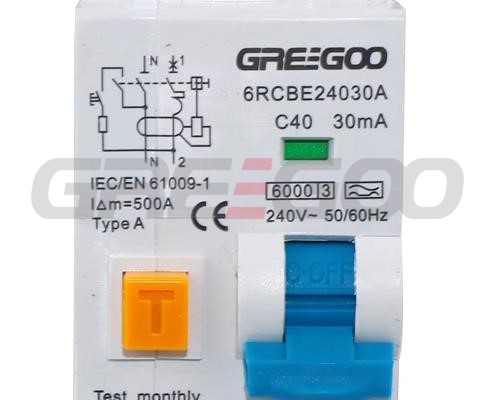

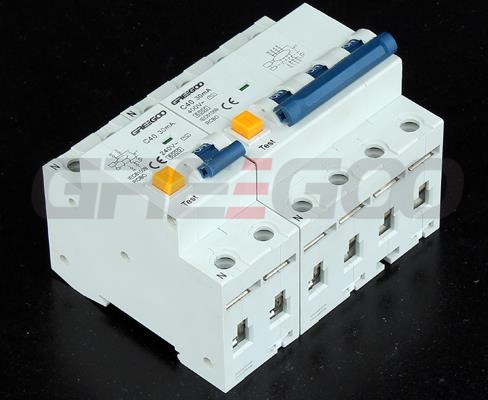

6RCB Electronic and Magnetic type RCBO

Model Number   6RCB
Tripping Mode   ELECTRONIC TYPE & MAGNETIC TYPE

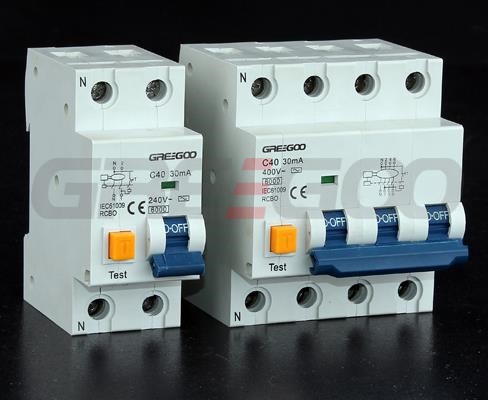

Pole No. Pole 2P = 1P + N / 4P = 3P + N
Standard Conformity   IEC 61009-1
Tripping Characteristic   B/C
Rated Current (In) A 6, 10, 16, 20, 25, 32, 40
Sensitivity (I △ n) mA 30, 100, 300
Residual Tripping Current Range   0.5I △ n~1I △ n
Rated Voltage (Un) Vac 230/240
Rated Insulation Voltage (Ui) V 660
Rated Frequency Hz 50/60
Type   AC/A
Tripping Time S ≤0.1
Shortcircuit Withstand Capacity kA 6
Ambient Temperature oC -25 to +40
Electrical Mechanical Operation cycles 4000

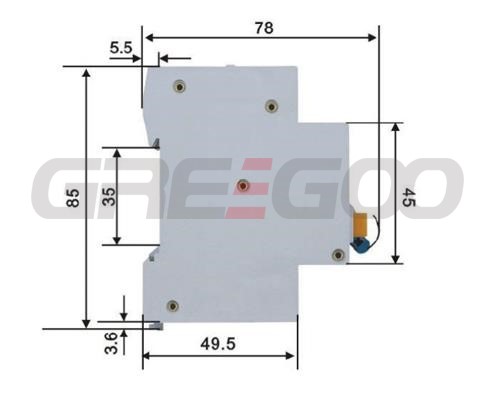

Mounting   Din Rail (35 * 7.5) mm
Degree of Protection   IP 20
Terminal Capacity (max) mm2 10~16

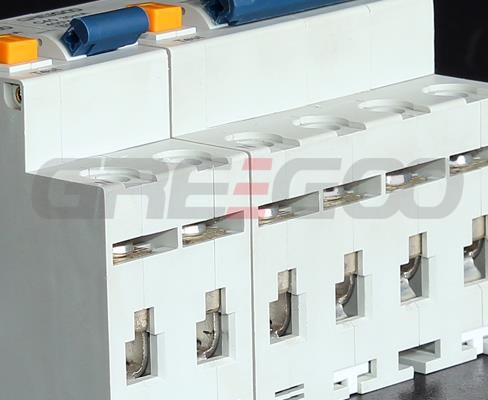

Connection Terminals   Screw Terminals 2.0Nm
Certificate   CE


MODEL SELECTION:

30mA 100mA Rated Current (A) Pole No. TYPE TRIPPING
6RCBE20630 6RCBE206100 6 2 AC ELECTRONIC
6RCBE21030 6RCBE210100 10 2 AC ELECTRONIC
6RCBE21630 6RCBE216100 16 2 AC ELECTRONIC
6RCBE22030 6RCBE220100 20 2 AC ELECTRONIC
6RCBE22530 6RCBE225100 25 2 AC ELECTRONIC
6RCBE23230 6RCBE232100 32 2 AC ELECTRONIC
6RCBE24030 6RCBE240100 40 2 AC ELECTRONIC
6RCBE40630 6RCBE206100 6 4 AC ELECTRONIC
6RCBE41030 6RCBE210100 10 4 AC ELECTRONIC
6RCBE41630 6RCBE216100 16 4 AC ELECTRONIC
6RCBE42030 6RCBE220100 20 4 AC ELECTRONIC
6RCBE42530 6RCBE225100 25 4 AC ELECTRONIC
6RCBE43230 6RCBE232100 32 4 AC ELECTRONIC
6RCBE44030 6RCBE240100 40 4 AC ELECTRONIC
6RCBE20630A 6RCBE206100A 6 2 A ELECTRONIC
6RCBE21030A 6RCBE210100A 10 2 A ELECTRONIC
6RCBE21630A 6RCBE216100A 16 2 A ELECTRONIC
6RCBE22030A 6RCBE220100A 20 2 A ELECTRONIC
6RCBE22530A 6RCBE225100A 25 2 A ELECTRONIC
6RCBE23230A 6RCBE232100A 32 2 A ELECTRONIC
6RCBE24030A 6RCBE240100A 40 2 A ELECTRONIC
6RCBE40630A 6RCBE206100A 6 4 A ELECTRONIC
6RCBE41030A 6RCBE210100A 10 4 A ELECTRONIC
6RCBE41630A 6RCBE216100A 16 4 A ELECTRONIC
6RCBE42030A 6RCBE220100A 20 4 A ELECTRONIC
6RCBE42530A 6RCBE225100A 25 4 A ELECTRONIC
6RCBE43230A 6RCBE232100A 32 4 A ELECTRONIC

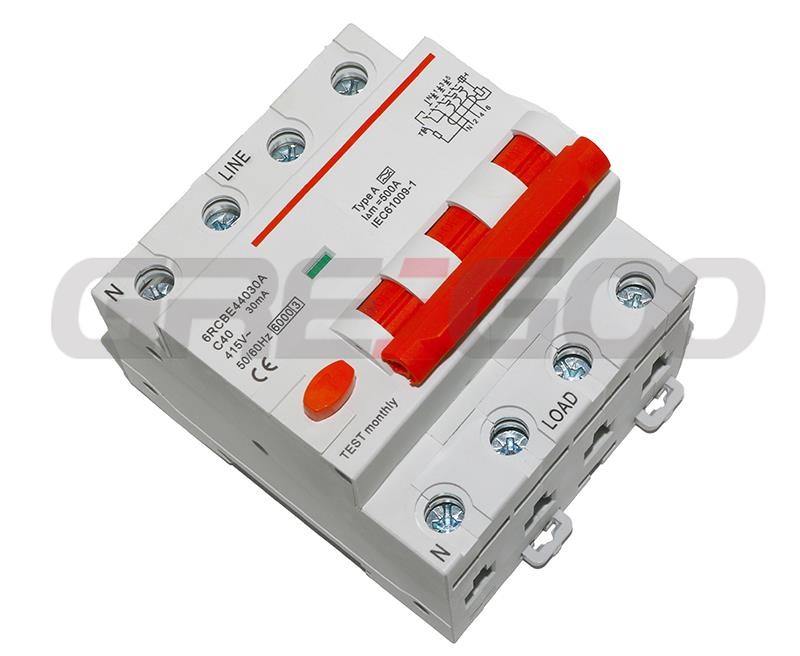

6RCBE44030A 6RCBE240100A 40 4 A ELECTRONIC
6RCBM20630 6RCBM206100 6 2 AC MAGNETIC
6RCBM21030 6RCBM210100 10 2 AC MAGNETIC
6RCBM21630 6RCBM216100 16 2 AC MAGNETIC
6RCBM22030 6RCBM220100 20 2 AC MAGNETIC
6RCBM22530 6RCBM225100 25 2 AC MAGNETIC
6RCBM23230 6RCBM232100 32 2 AC MAGNETIC
6RCBM24030 6RCBM240100 40 2 AC MAGNETIC
6RCBM40630 6RCBM206100 6 4 AC MAGNETIC
6RCBM41030 6RCBM210100 10 4 AC MAGNETIC
6RCBM41630 6RCBM216100 16 4 AC MAGNETIC
6RCBM42030 6RCBM220100 20 4 AC MAGNETIC
6RCBM42530 6RCBM225100 25 4 AC MAGNETIC
6RCBM43230 6RCBM232100 32 4 AC MAGNETIC
6RCBM44030 6RCBM240100 40 4 AC MAGNETIC
6RCBM20630A 6RCBM206100A 6 2 A MAGNETIC
6RCBM21030A 6RCBM210100A 10 2 A MAGNETIC
6RCBM21630A 6RCBM216100A 16 2 A MAGNETIC
6RCBM22030A 6RCBM220100A 20 2 A MAGNETIC
6RCBM22530A 6RCBM225100A 25 2 A MAGNETIC
6RCBM23230A 6RCBM232100A 32 2 A MAGNETIC
6RCBM24030A 6RCBM240100A 40 2 A MAGNETIC
6RCBM40630A 6RCBM206100A 6 4 A MAGNETIC
6RCBM41030A 6RCBM210100A 10 4 A MAGNETIC
6RCBM41630A 6RCBM216100A 16 4 A MAGNETIC
6RCBM42030A 6RCBM220100A 20 4 A MAGNETIC
6RCBM42530A 6RCBM225100A 25 4 A MAGNETIC
6RCBM43230A 6RCBM232100A 32 4 A MAGNETIC
6RCBM44030A 6RCBM240100A 40 4 A MAGNETIC

Note: 300mA is available, nominated tripping characteristics is type C, if you want type B, please contact us while ordering.
