8 channel output solid state relays

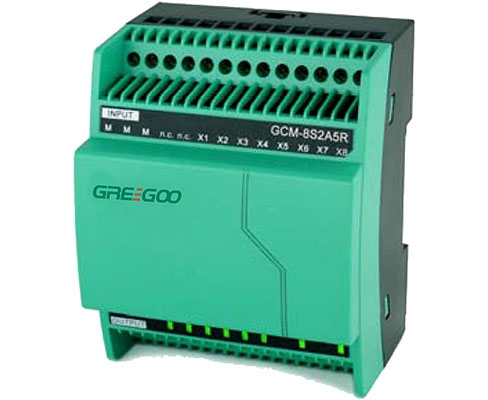

GCM-8S2A5R (with PCM-10A5R) applied to connect between the injection molding machine and the handling device according to EUROMAP67. This module should be installed with injection molding machine for sending signal of control to handling device
►Control from low level loads to 5 A 250 VAC and 30 VDC.
►Reinforced according to IEC1131-2 (TÜV)
►High surge breakdown voltage (4000V) and high breakdown voltage (2000V)
►Outstanding vibration and shock resistance
►Functional shock resistance: 147 m/s2
►Functional vibration resistance: 10 to 55 Hz (at double amplitude of 2.5 mm .098 inch)
| Model | Port type | Port output (relay type) | |
| Current | Voltage | ||
| PCM-10A5R | EU12 | 1A | 0-30VDC OR 0-220VAC |
| PCM-8A5R | EU67 | 1A | 0-30VDC OR 0-220VAC |
