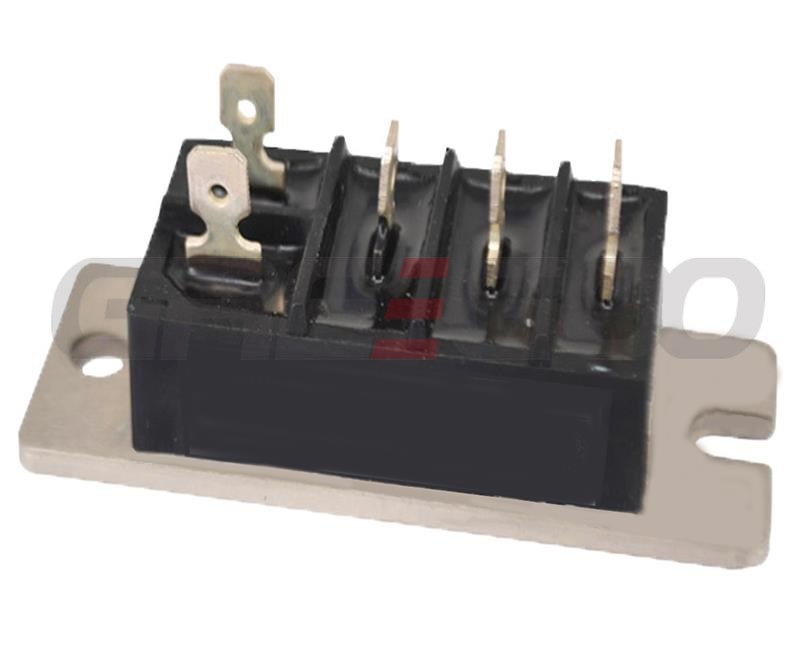

DF20AA120 DF20AA160 DF30AA120 DF30AA160 THREE PHASES BRIDGE DIODE

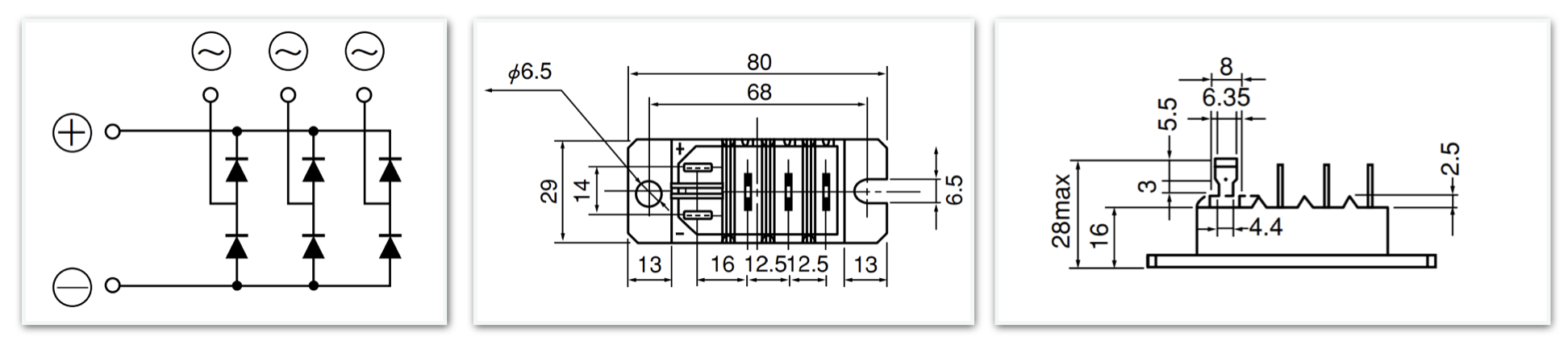

Power Diode Module DF20AA DF30AA are designed for three phase full wave rectification, which has six diodes connected in a three phase bridge configuration. The mounting base of the module is electrically isolated from semiconductor elements for simple heatsink construction output DC current is 20/30Amp (Tc=119℃) Repetitive peak reverse voltage is up to 1,600V.

Features
TjMax=150℃
Isolated Mounting Base
High reliability by unique glass passivation
Easy Assemble by the #250 terminal Tab

Applications
AC. DC Moter Drive/AVR/Switching ―for three phase rectification
