ESB200NH40S ESB150NH40S ESB100NH40S Ultra-Fast Soft Recovery Diode Module
Home Products FRED ModuleHighlight FRED modulesESB200NH40S ESB150NH40S ESB100NH40S Ultra-Fast Soft Recovery Diode Module
Product details

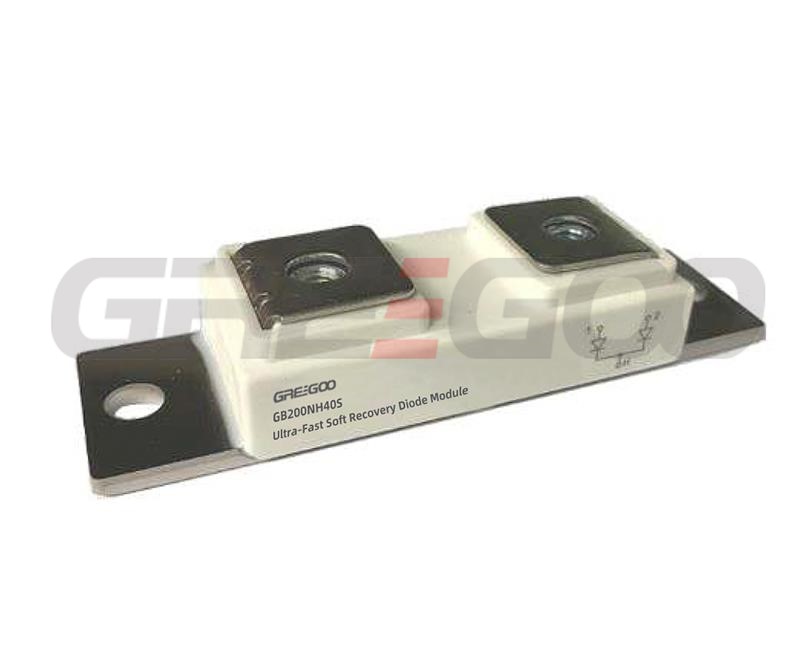

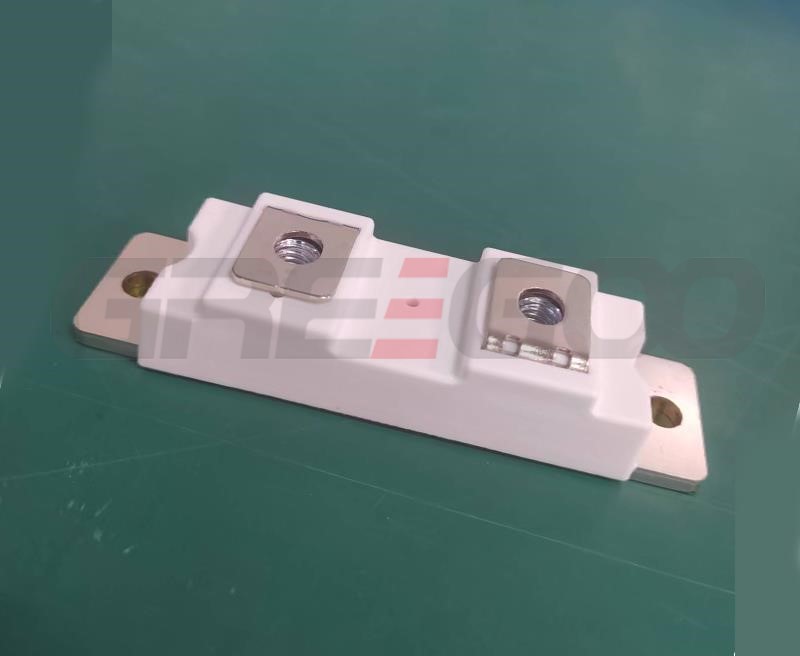

ESB200NH40S ESB150NH40S ESB100NH40S Ultra-Fast Soft Recovery Diode Module
Features
Repetitive Reverse Voltage : VRRM = 400V
Low Forward Voltage Drop : VF(typ.) = 1.05V
Average Forward Current : IF(AV.) = 200A @ Tc = 100
Ultra-Fast Reverse Recovery Time : trr(typ.) = 150 ns
Extensive Characterization of Recovery Parameters
Reduced EMI and RFI
Non Isolation Type Package
Applications
Welding Machine
Induction Heating
UPS
ESB200NH40S
ESB150NH40S
ESB100NH40S

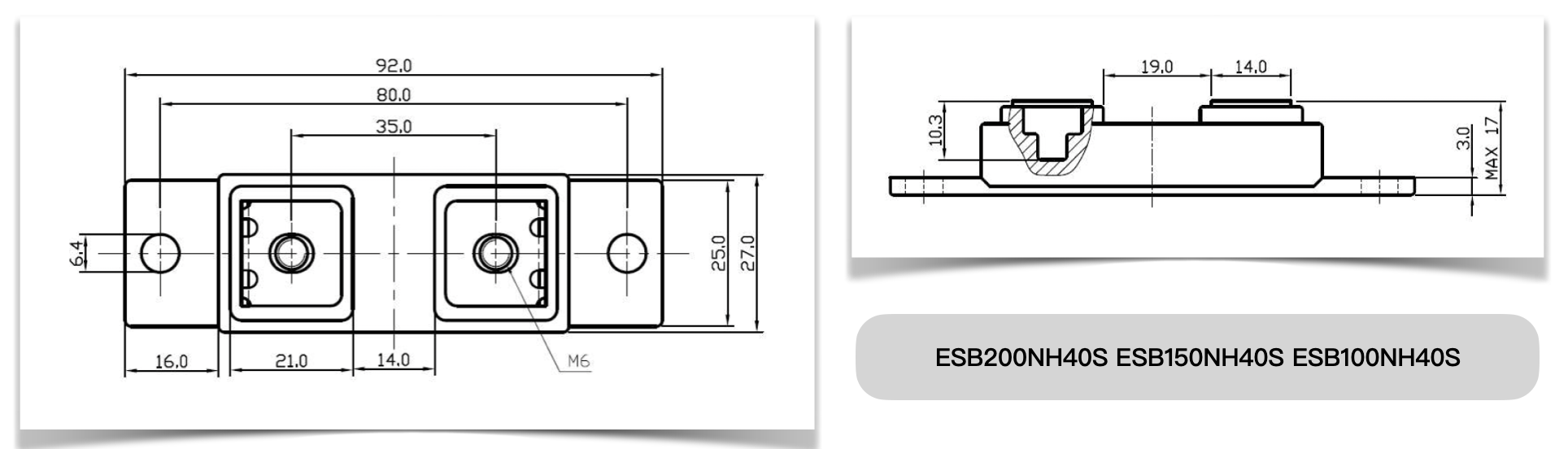

Dimensions
Inquiry
Need more information?
Contact us to request pricing, availability and customization options.
