GF400S040DK2B (MMF400S040DK2B) FRED Module
Home Products FRED ModuleHighlight FRED modulesGF400S040DK2B (MMF400S040DK2B) FRED Module
Product details

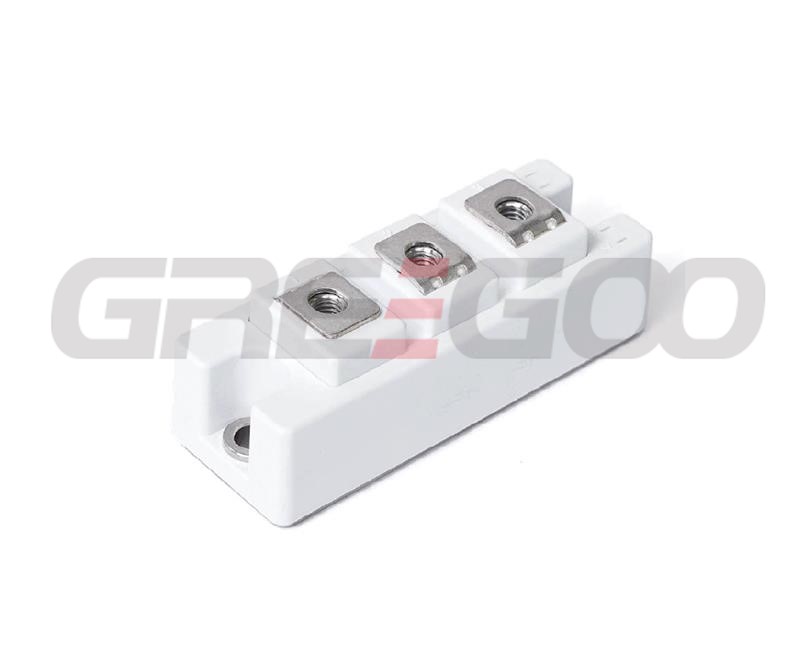

GF400S040DK2B (MMF400S040DK2B) FRED Module
Feature
Ultrafast Recovery Time
Soft Recovery Characteristics
Low Recovery Loss
Low Forward Voltage
High Surge Current Capability
Low Leakage Current
Application
Inversion Welder
Uninterruptible Power Supply
Plating Power Supply
Ultrasonic Cleaner and Welder
Converter & Chopper
PFC

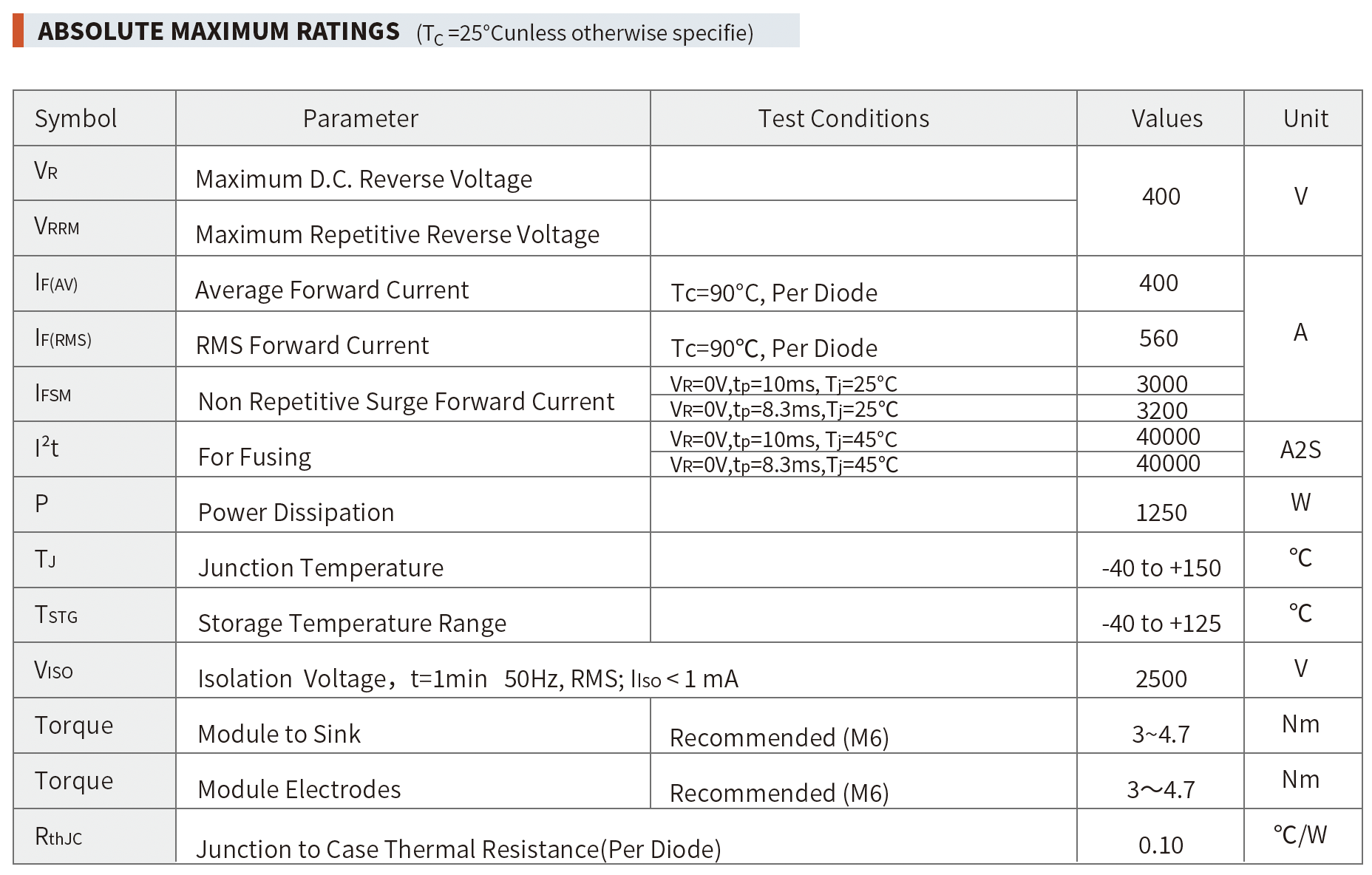

ABSOLUTE MAXIMUM RATINGS

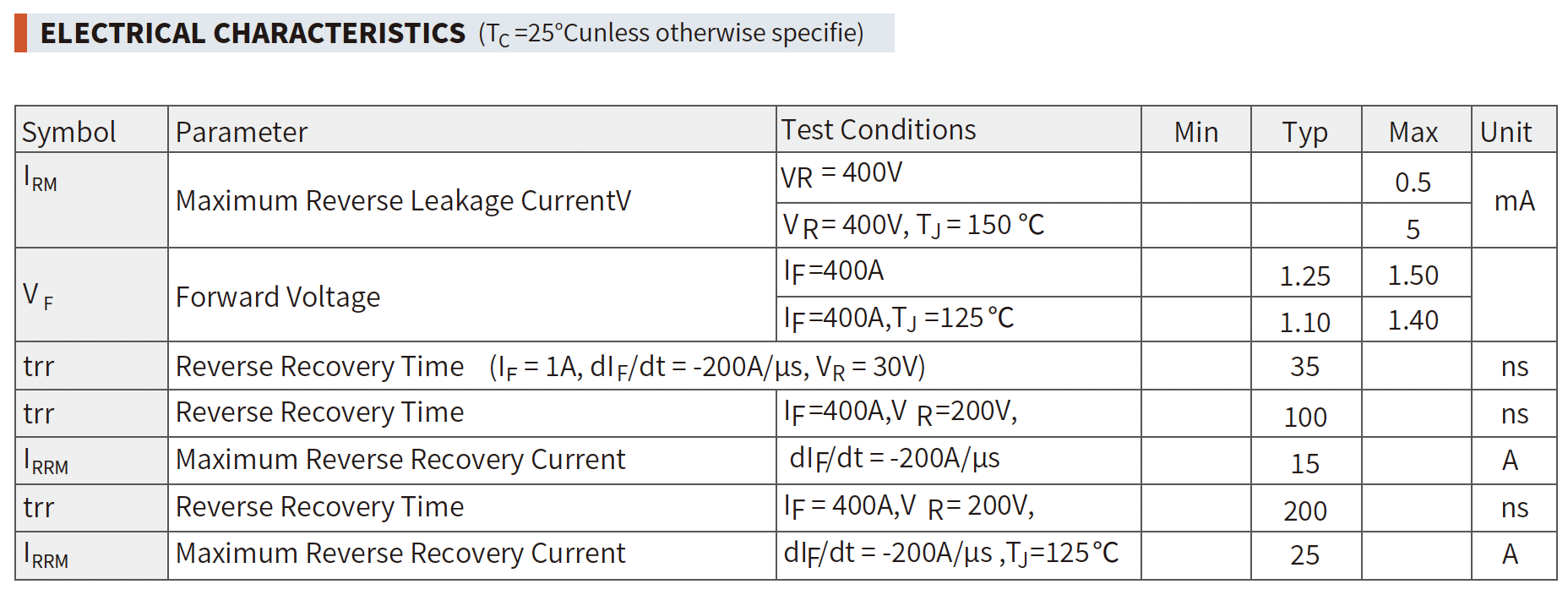

ELECTRICAL CHARACTERISTICS

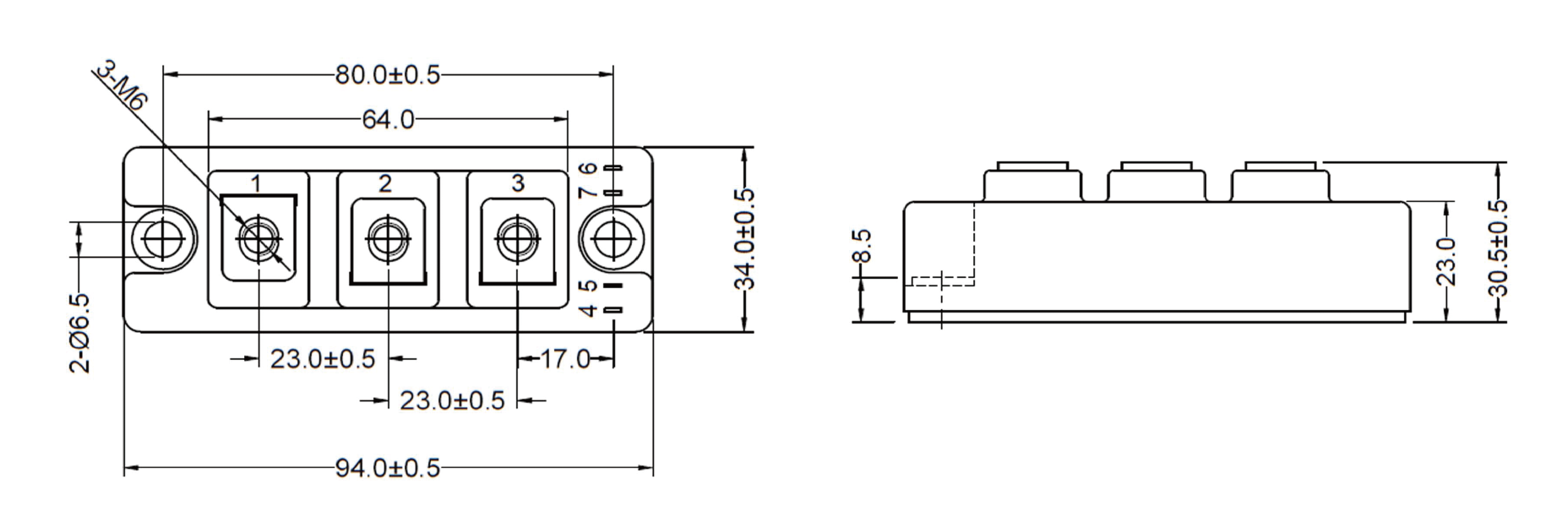

Dimensions
Download
Inquiry
Need more information?
Contact us to request pricing, availability and customization options.
