SEMiX101GD126HDs Trench IGBT Module
Home Products IGBT Power ModuleFeatured IGBT ModulesSEMiX101GD126HDs Trench IGBT Module
Product details
SEMiX101GD126HDs Trench IGBT Module
Features
. Homogeneous Si
. Trench = Trenchgate technology
. VCE(sat) with positive temperature coefficient
. High short circuit capability
Typical Applications
. AC inverter drives
. UPS
. Electronic Welding

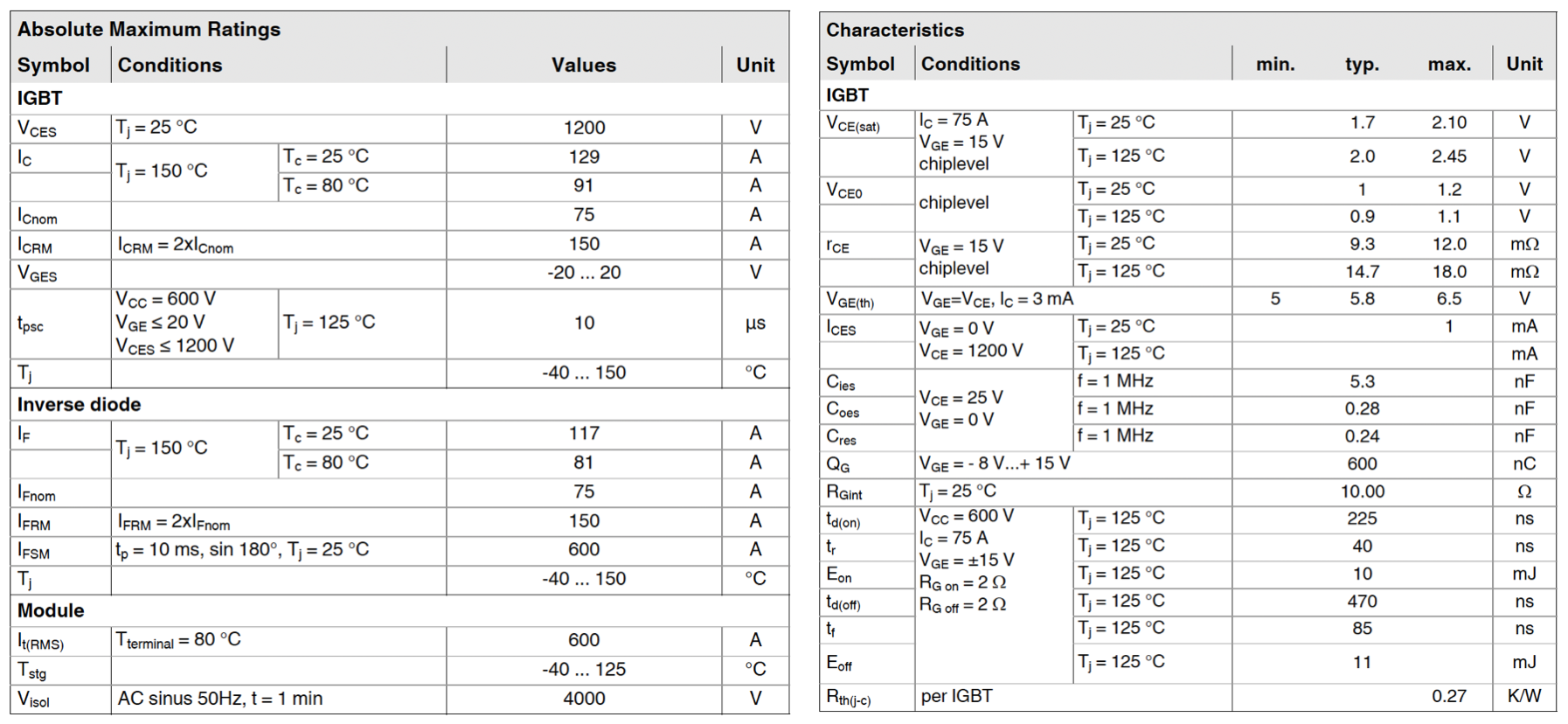

Maximum Ratings
Inquiry
Need more information?
Contact us to request pricing, availability and customization options.
