Product details

SKM series IGBT Modules 600V 650V 1200V 1700V

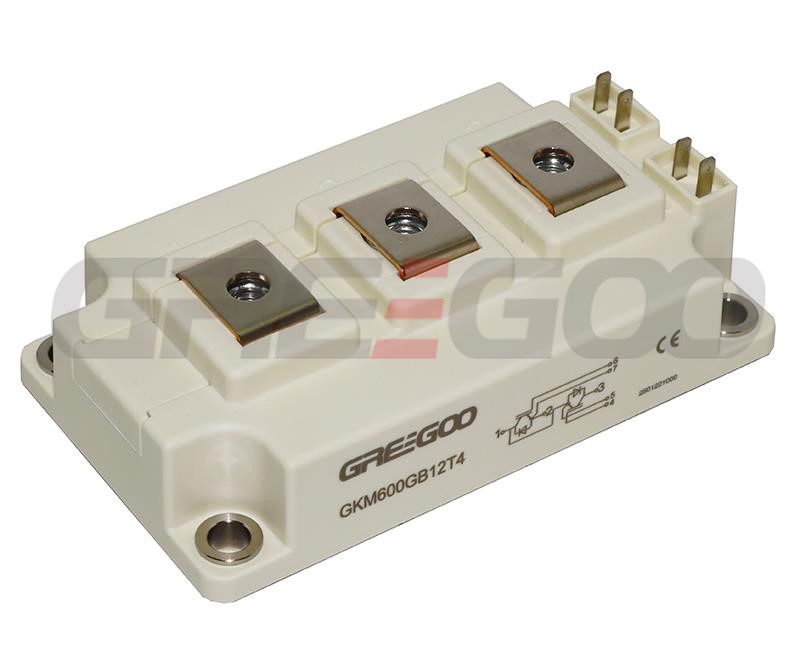

IGBT Module (Insulated Gate Bipolar Transistor) is a device required for inverter use in many types of industrial equipment. IGBT module in various topologies are used in circuits with a current range I_Cnom from 25A to 1400A and with voltage classes V_CES from 600V to 1700V.

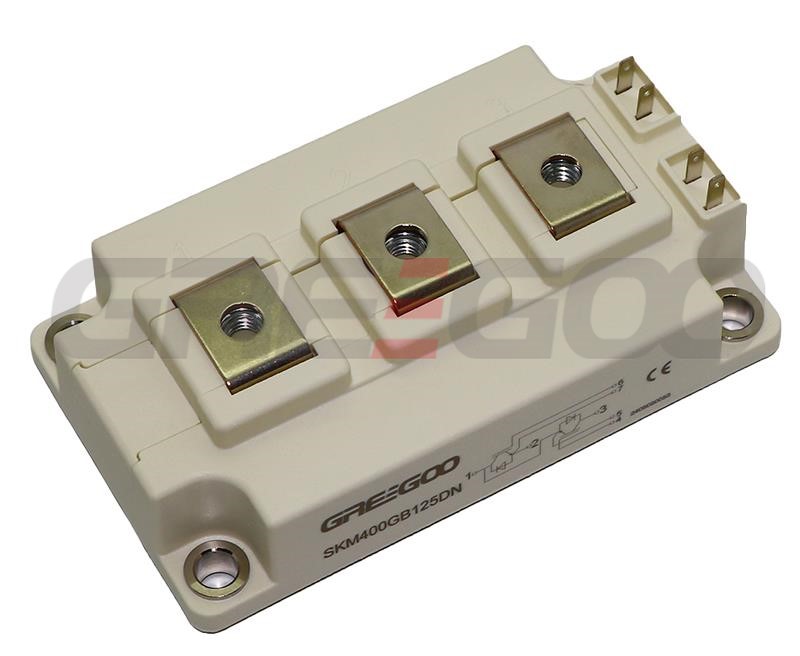

SKM IGBT Modules are housed in a standard industrial case making it easy to easy integrate of the device into existing equipment. Available topologies include half bridge, single switch, sixpack, 3-level and many more, covering every application field. An IGBT power module functions as a switch and can be used to switch electrical power on and off extremely fast and with high energy efficiency.

The IGBT inverter module are used as switching elements for the power converters of variable-speed drives for motors, AC inverter drives, UPS, electronic welders, uninterruptable power supplies and others. An IGBT is a semiconductor device that combines the high-speed switching performance of a power MOSFET with the high-voltage and high-current handling capabilities of a bipolar transistor.

The IGBT power module is becoming the preferred device for high power applications due to it's ability to enhance switching, temperature, weight and cost performance.

Part Numbers

Type	IGBT						Diode			Case
	I_Cnom	l_c	V_CES	V_CE(sat)	E_on	E_off	I_F	V_F	E_rr
	A	A	V	V	mJ	mJ	A	V	mJ
SKM145GB066D	150	195	600	1.46	8.5	5.5	150	1.40	3.5	2
SKM195GB066D	200	265	600	1.46	14	8	200	1.40	5.6	2
SKM300GB066D	300	390	600	1.45	7.5	11.5	350	1.38	10.5	3
SKM400GB066D	400	500	600	1.45	8	16	450	1.40	14
SKM600GB066D	600	760	600	1.45	7.5	29.5	700	1.40	25
SKM200GARL066T	200	280	600	1.45	2.24	7.89	270	1.45	4	5
SKM300GARL066T	300	393	600	1.45	3.5	10.1	421	1.54	4
SKM400GARL066T	400	504	600	1.45	4.48	15.78	421	1.54	8
SKM150ML1066TAT	150	200	600	1.45	1.7	5.1	200	1.35	2	5
SKM200MLI066TAT	200	280	600	1.45	2.53	6.82	270	1.40	4
SKM300MLI066TAT	300	400	600	1.45	3.5	10.1	324	1.35	4
SKM195GAL07E3	200	266	650	1.46	6.3	8.3	217	1.39	4.5	2
SKM300GAL07E3	300	394	650	1.45	3	14	335	1.40	6.4	3
SKM600GAL07E3	600	852	650	1.45	20	37	812	1.40	9.1	3
SKM195GAR07E3	200	266	650	1.46	6.3	8.3	217	1.39	4.5	2
SKM300GAR07E3	300	394	650	1.45	3	14	335	1.40	6.4	3
SKM600GAR07E3	600	852	650	1.45	20	37	812	1.40	9.1	3
SKM195GB07E3	200	266	650	1.46	6.3	8.3	217	1.39	4.5	2
SKM300GB07E3	300	394	650	1.45	4.7	13.6	335	1.40	6.4	3
SKM400GB07E3	400	506	650	1.45	4	17	447	1.39	12
SKM600GB07E3	600	852	650	1.45	20	37	812	1.40	9.1
SKM600GA125D	400	580	1200	3.30	30	22	500	2.00	24	4
SKM800GA125D	600	760	1200	3.20	88	48	720	2.30	28	4
SKM200GAL125D	150	200	1200	3.30	14	8	200	2.06	8	3
SKM400GAL125D	300	400	1200	3.30	17	18	390	2.06	16	3
SKM200GAR125D	150	200	1200	3.30	14	8	200	2.06	8	3
SKM400GAR125D	300	400	1200	3.30	17	18	390	2.06	16	3

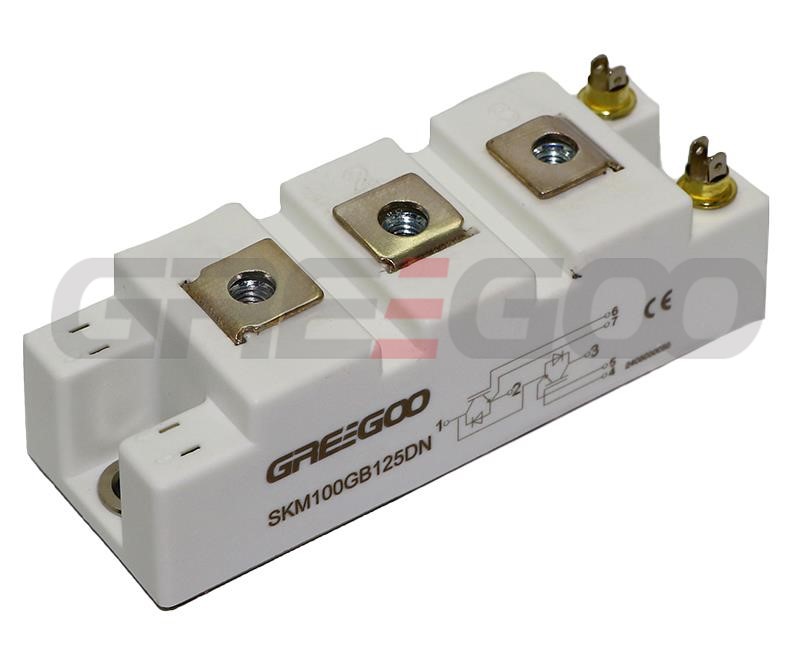

SKM100GB125DN	75	100	1200	3.30	9	3.5	95	2.06	4	2N
SKM200GB125D	150	200	1200	3.30	14	8	200	2.06	8	3

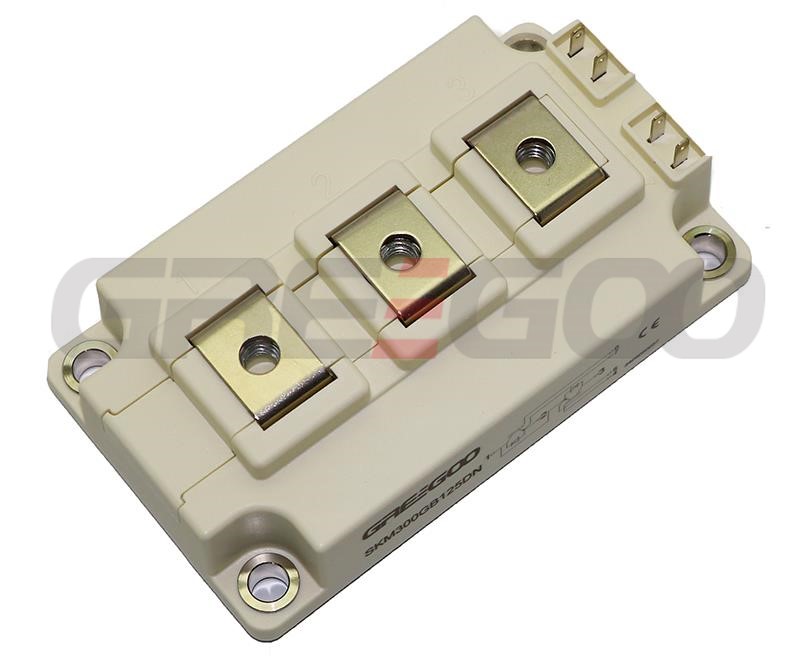

SKM300GB125D	200	300	1200	3.30	16	11	260	2.00	13
SKM400GB125D	300	400	1200	3.30	17	18	390	2.06	16
SKM25GAH125D	25	39	1200	3.20	3.9	1.6	47	2.13	1.1	6
SKM600GA126D	400	660	1200	1.70	39	64	490	1.60	41	4
SKM800GA126D	600	910	1200	1.70	65	95	703	1.60	59	4
SKM195GAL126D	150	220	1200	1.71	16	24.5	143	2.00	5.8	2
SKM200GAL126D	150	260	1200	1.71	18	24	200	1.60	18	3
SKM400GAL126D	300	470	1200	1.69	29	48	352	1.60	27
SKM600GAL126D	400	660	1200	1.70	39	64	490	1.60	41
SKM195GB126D	150	220	1200	1.71	16	24.5	143	2.00	5.8	2
SKM200GB126D	150	260	1200	1.71	18	24	200	1.60	18	3
SKM300GB126D	200	310	1200	1.70	21	33	250	1.60	18
SKM400GB126D	300	470	1200	1.69	29	48	352	1.60	27
SKM600GB126D	400	660	1200	1.70	39	64	490	1.60	41
SKM300GA12V	300	420	1200	1.84	23	33	353	2.17	21	4
SKM400GA12V	400	612	1200	1.74	39	42	440	2.20	26
SKM600GA12V	600	908	1200	1.75	76	76	707	2.14	43
SKM150GAL12V	150	231	1200	1.75	13.5	14.2	189	2.14	8.5	2
SKM200GAL12VL2	150	299	1200	1.86	24	22	189	2.14	8.5	2
SKM400GAL12V	400	612	1200	1.74	39	42	440	2.20	26	3
SKM150GAR12V	150	231	1200	1.75	13.5	14.2	189	2.14	8.5	2
SKM400GAR12V	400	612	1200	1.74	39	42	440	2.20	26	3
SKM50GB12V	50	77	1200	1.84	4.9	4.5	65	2.22	2.8	2
SKM75GB12V	75	114	1200	1.84	6.7	7.1	97	2.17	4.2
SKM100GB12V	100	159	1200	1.75	10.7	8.7	121	2.20	5.7
SKM150GB12V	150	231	1200	1.75	13.5	14.2	189	2.14	8.5
SKM150GB12VG	150	222	1200	1.86	10	16.5	187	2.17	11	3
SKM200GB12V	200	311	1200	1.76	14	22	229	2.20	13
SKM300GB12V	300	420	1200	1.84	23	33	353	2.17	21
SKM400GB12V	400	612	1200	1.74	39	42	440	2.20	26
SKM300GA12E4	300	422	1200	1.85	23.4	35	353	2.17	22.2	4
SKM400GA12E4	400	616	1200	1.80	28	59	461	2.20	37
SKM600GA12E4	600	913	1200	1.80	30	77	707	2.14	39
SKM900GA12E4	900	1305	1200	1.83	130	121	871	2.31	53
SKM600GAE12E4	600	860	1200	1.80	81	83	54	14.62	35.5	5
SKM200GAL12E4	200	313	1200	1.80	21	27	229	2.20	13	3
SKM300GAL12E4	300	422	1200	1.85	27	39	353	2.17	23
SKM400GAL12E4	400	616	1200	1.80	33	56	461	2.20	30.5
SKM200GAR12E4	200	313	1200	1.80	21	27	229	2.20	13	3
SKM300GAR12E4	300	422	1200	1.85	27	39	353	2.17	23
SKM400GAR12E4	400	616	1200	1.80	33	56	461	2.20	30.5
SKM200GB12E4	200	313	1200	1.80	21	27	229	2.20	13	3
SKM300GB12E4	300	422	1200	1.85	27	39	353	2.17	23
SKM400GB12E4	400	616	1200	1.80	33	56	461	2.20	30.5
SKM450GB12E4	450	700	1200	1.84	32	60	461	2.31	28
SKM450GB12E4D1	450	700	1200	1.84	28	58	461	2.04	31
SKM600GB12E4	600	860	1200	1.80	30	77	623	2.28	39
SKM450GM12E4	450	700	1200	1.84	32	60	461	2.31	28	3
SKM450GM12E4D1	450	699	1200	1.84	28	58	623	2.04	31
SKM600GM12E4	600	860	1200	1.80	30	77	623	2.28	39
SKM300GA12T4	300	422	1200	1.85	23.4	26	353	2.17	22.2	4
SKM400GA12T4	400	616	1200	1.80	28	44	461	2.20	37
SKM600GA12T4	600	913	1200	1.80	74	63	707	2.14	38
SKM50GAL12T4	50	81	1200	1.85	5.5	4.5	0	2.22	3.6	2
SKM100GAL12T4	100	160	1200	1.80	15	10.2	121	2.20	5.9
SKM150GAL12T4	150	232	1200	1.81	19.2	15.8	189	2.14	13
SKM200GAL12T4	200	313	1200	1.80	21	20	229	2.20	13	3
SKM300GAL12T4	300	422	1200	1.85	27	29	353	2.17	23
SKM400GAL12T4	400	616	1200	1.80	33	42	461	2.20	30.5
SKM600GAL12T4	600	860	1200	1.80	33	70	623	2.28	40
SKM150GAR12T4	150	232	1200	1.81	19.2	15.8	189	2.14	13	2
SKM400GAR12T4	400	616	1200	1.80	33	42	461	2.20	30.5	3
SKM600GAR12T4	600	860	1200	1.80	33	70	623	2.28	40	3
SKM50GB12T4	50	81	1200	1.85	5.5	4.5	65	2.22	3.8	2
SKM75GB12T4	75	115	1200	1.85	11	6.9	97	2.17	4.7

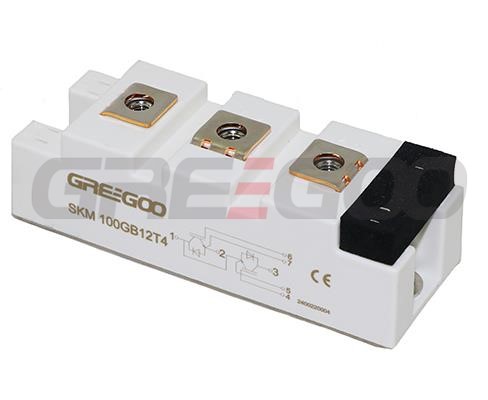

SKM100GB12T4	100	160	1200	1.80	15	10.2	121	2.20	5.9
SKM150GB12T4	150	232	1200	1.81	19.2	15.8	189	2.14	13

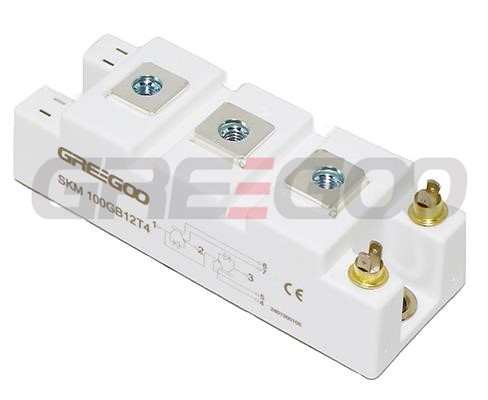

SKM100GB12T4G	100	154	1200	1.90	16.1	8.6	118	2.22	6	3
SKM150GB12T4G	150	223	1200	1.85	18.7	14.1	183	2.17	9	3

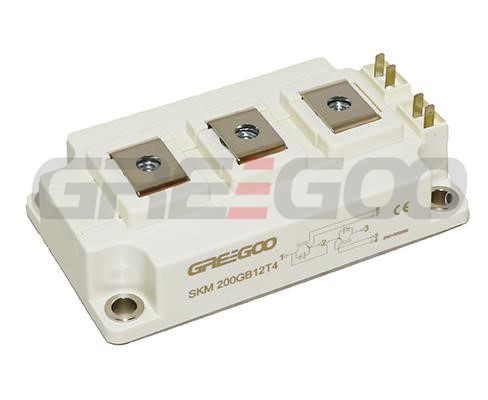

SKM200GB12T4	200	313	1200	1.80	21	20	229	2.20	13	3
SKM300GB12T4	300	422	1200	1.85	27	29	353	2.17	23

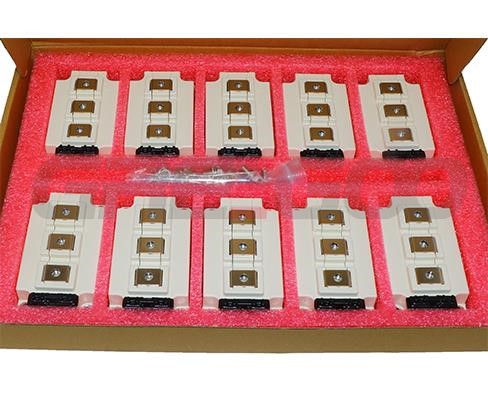

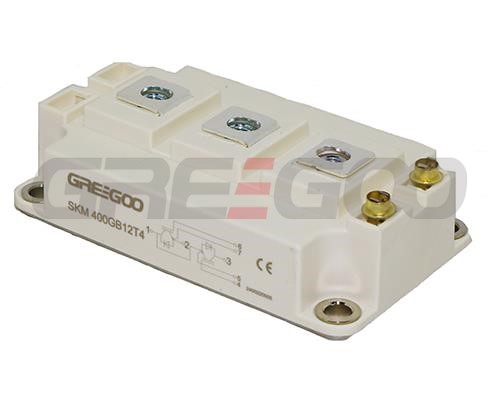

SKM400GB12T4	400	616	1200	1.80	33	42	461	2.20	30.5
SKM450GB12T4	450	699	1200	1.84	32	49	461	2.31	28
SKM450GB12T4D1	450	699	1200	1.84	28	48	623	2.04	32
SKM600GB12T4	600	860	1200	1.80	33	70	623	2.28	40
SKM150GM12T4G	150	229	1200	1.85	19.2	15.8	187	2.17	13	3
SKM200GM12T4	200	313	1200	1.80	21	20	229	2.20	13
SKM300GM12T4	300	422	1200	1.85	27	29	353	2.17	23
SKM400GM12T4	400	616	1200	1.80	33	42	461	2.20	30.5
SKM300GBD12T4	300	422	1200	1.85	27	29	56	2.41	30.5	3
SKM100GAL12F4	100	153	1200	2.05	6.6	8	111	2.55	6.3	2
SKM400GAL12F4	400	548	1200	2.06	28	32	402	2.55	18.5	3
SKM100GAR12F4	100	153	1200	2.05	6.6	8	111	2.55	6.3	2
SKM400GAR12F4	400	548	1200	2.06	28	32	402	2.55	18.5	3
SKM75GB12F4	75	113	1200	2.08	6.8	5.3	98	2.43	3.7	2
SKM100GB12F4	100	153	1200	2.05	6.6	8	111	2.55	6.3
SKM150GB12F4	150	201	1200	2.05	14.5	12	174	2.43	6
SKM150GB12F4G	150	221	1200	2.05	7.8	10.8	197	2.43	8.9	3
SKM200GB12F4	200	312	1200	2.06	7.5	15.7	227	2.55	9.7
SKM300GB12F4	300	380	1200	2.06	16.5	24	334	2.43	16
SKM400GB12F4	400	548	1200	2.06	28	32	402	2.55	18.5
SKM600GA176D	400	660	1700	2.00	255	155	600	1.60	102	4
SKM800GA176D	600	830	1700	2.00	335	245	630	1.60	155	4
SKM145GAL176D	100	160	1700	2.00	60	38	140	1.60	27.5	2
SKM200GAL176D	150	260	1700	2.01	93	58	210	1.70	31	3
SKM400GAL176D	300	432	1700	1.99	170	118	440	1.70	78	3
SKM400GAR176D	300	432	1700	1.99	170	118	440	1.70	78	3
SKM75GB176D	50	80	1700	2.00	25	18	80	1.70	14.5	2
SKM100GB176D	75	125	1700	1.98	44	28.5	100	1.60	21.4
SKM145GB176D	100	160	1700	2.00	60	38	140	1.60	27.5
SKM200GB176D	150	260	1700	2.01	93	58	210	1.70	31	3
SKM400GB176D	300	432	1700	1.99	170	118	440	1.70	78	3
SKM600GA17E4	600	972	1700	1.90	258	246	629	1.98	132	4
SKM100GAL17E4	100	164	1700	1.90	43	39	113	2.00	26	2
SKM200GAL17E4	200	321	1700	1.90	69	79	213	2.00	45	3
SKM400GAL17E4	400	614	1700	1.92	157	180	443	2.00	130	3
SKM100GAR17E4	100	164	1700	1.90	43	39	113	2.00	26	2
SKM200GAR17E4	200	321	1700	1.90	69	79	213	2.00	45	3
SKM400GAR17E4	400	614	1700	1.92	157	180	443	2.00	130	3
SKM75GB17E4	75	125	1700	1.93	30	29	88	2.00	21	2
SKM100GB17E4	100	164	1700	1.90	43	39	113	2.00	26
SKM150GB17E4	150	248	1700	1.90	67	59	169	1.98	32
SKM150GB17E4G	150	242	1700	1.90	39	59	163	2.00	33	3
SKM200GB17E4	200	321	1700	1.90	69	79	213	2.00	45
SKM300GB17E4	300	476	1700	1.91	88	121	314	2.00	77
SKM400GB17E4	400	614	1700	1.92	157	180	443	2.00	130	3
SKM500GB17E4	500	780	1700	1.90	135	210	561	1.99	130	3
SKM400GM17E4	400	614	1700	1.92	157	180	443	2.00	130	3

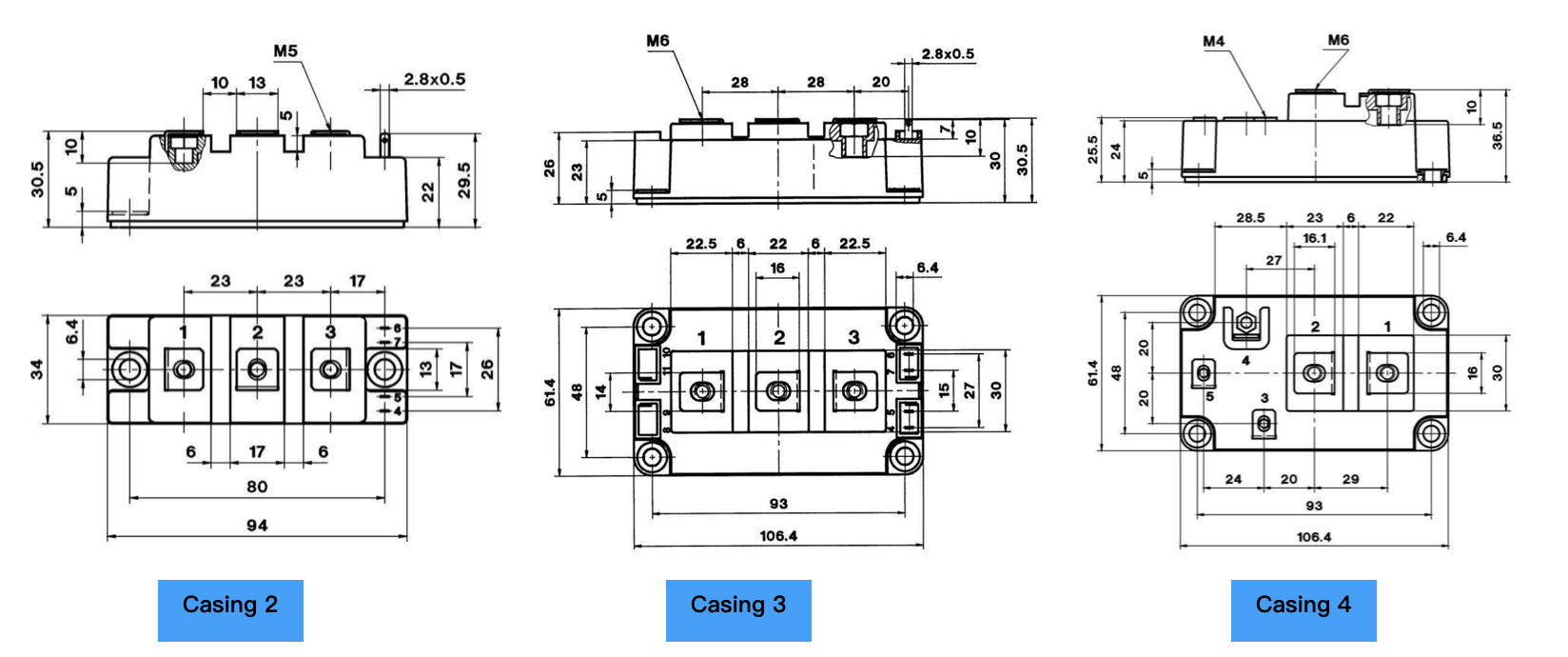

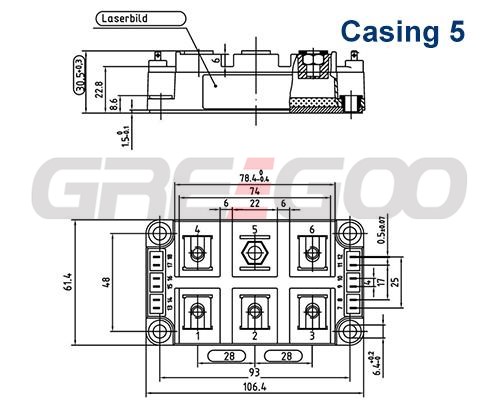

Dimensions

IGBT module casing

FAQ

Q:What are the differences between Thyristor and IGBT modules?

The thyristor module is controlled by current, requiring a current pulse to trigger conduction and cannot be turned off via the gate, only naturally turning off when the current crosses zero, making it suitable for low-frequency, high-power applications. The IGBT module is controlled by voltage, being a fully controllable switch where both turn-on and turn-off can be controlled by gate voltage, with self-turn-off capability, suitable for medium to high-frequency applications. The IGBT operates at a higher frequency than the thyristor, making it ideal for applications requiring precise control.
