600A Single Rectifier Diode Module
Home Products Thyristor Diode ModuleSemikron Thyristor Diode Module600A Single Rectifier Diode Module
600A Single Rectifier Diode Module
Features
- Heat transfer through aluminium nitride ceramic isolated metal baseplate
- Precisious metal pressure contacts for high reliability
Typical Application
• Rectifiers

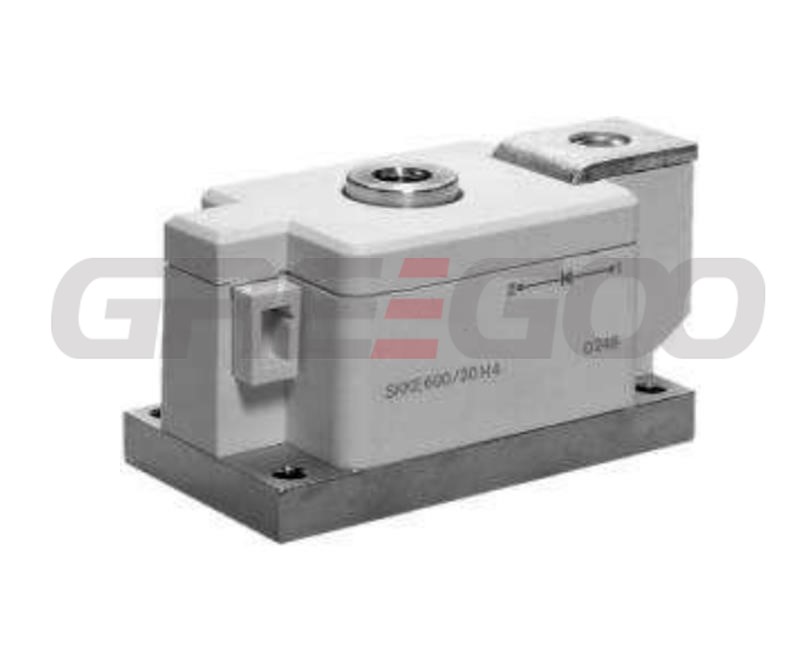

SKKE600/12 SKKE600/16 SKKE600/18 SKKE600/22 SKKE600/24 Rectifier Diode Module
Single Rectifier Diode 50 mm Power Block 1600 V, 600 A module for phase control in pressure contact technology using an isolated copper base plate.
Features
- Pressure contact technology for high reliability
- Industrial standard package
- Electrically insulated baseplate
- Short on fail
- Highest robustness
Benefits
- Designed for high overload and power cycling requirements
- High DC blocking stability over whole lifetime
- High surge current capability especially for short grid spikes
- One supplier for a broad range of Power Block Modules
Need more information?
Contact us to request pricing, availability and customization options.
