Specification

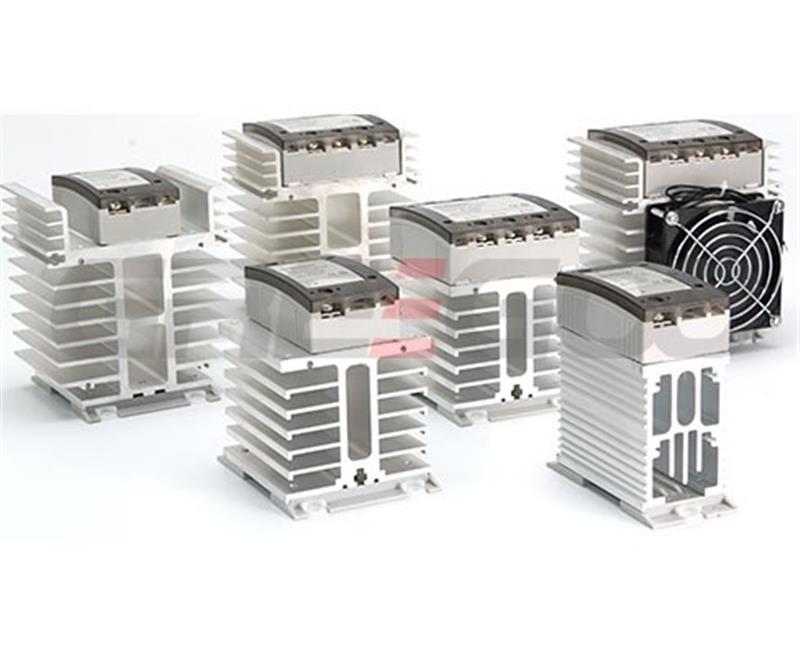

Air cooled solid state relay assemblies

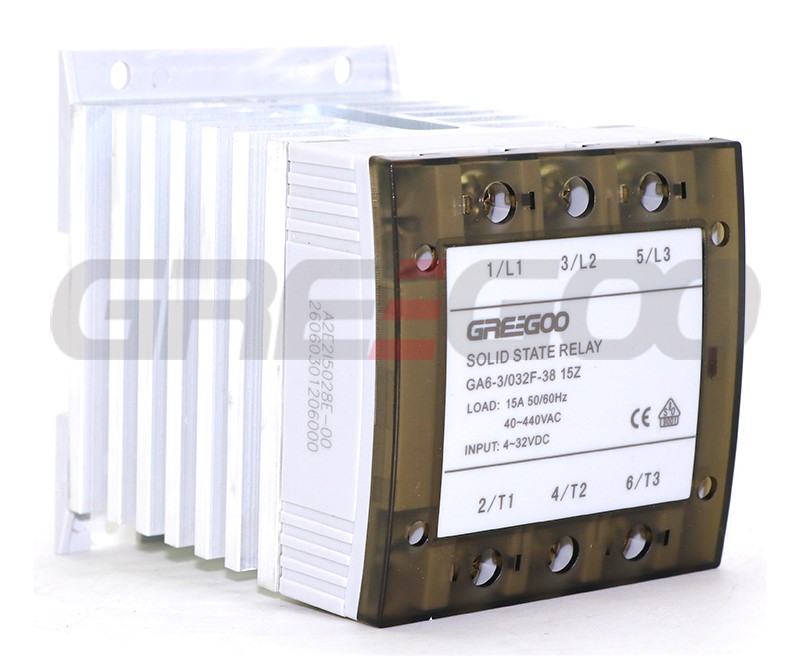

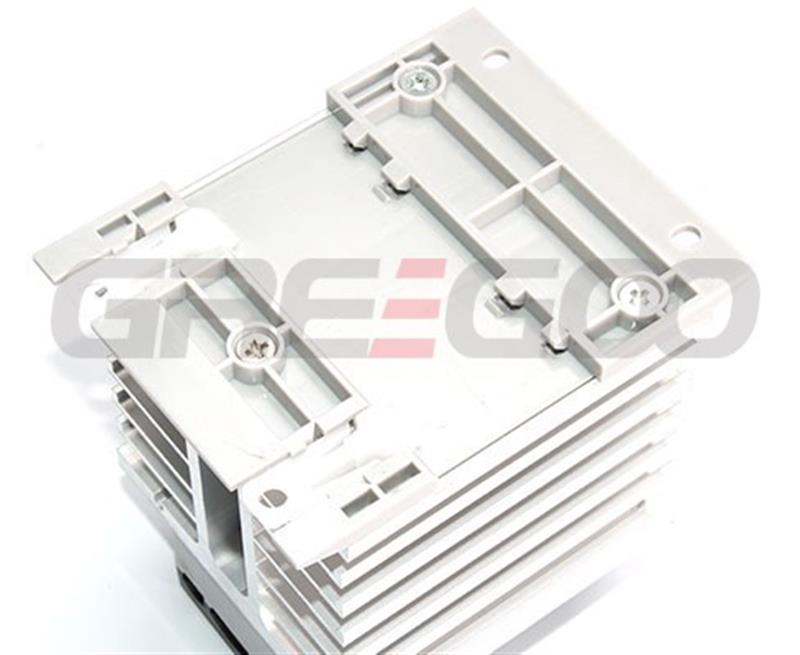

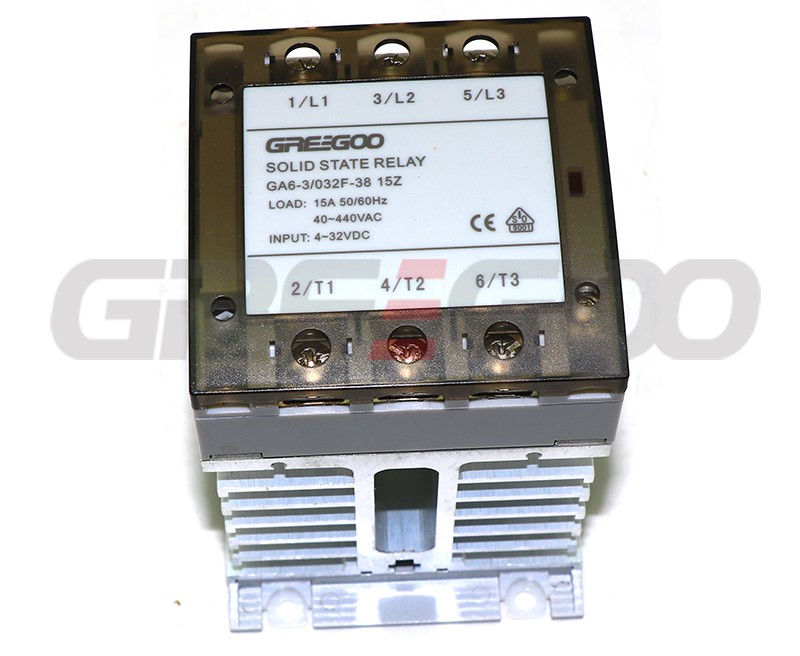

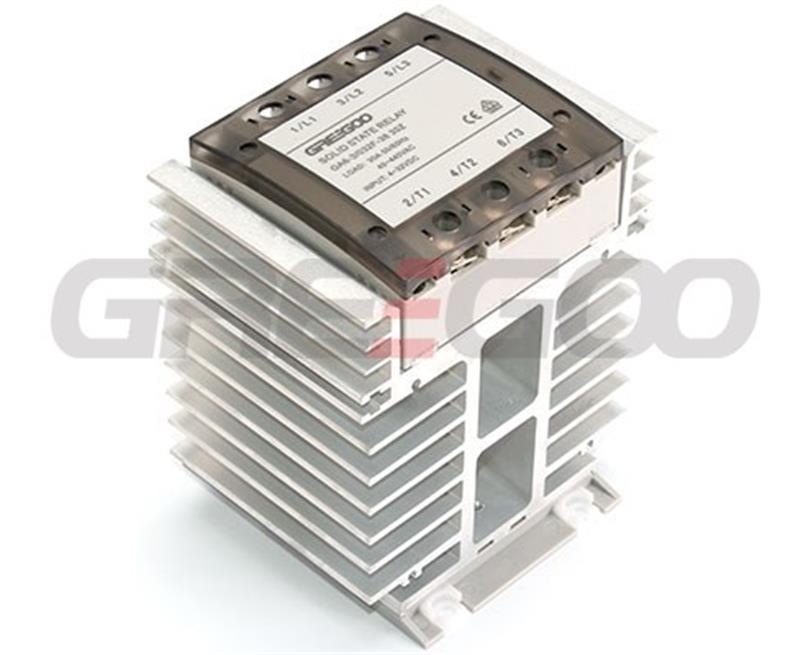

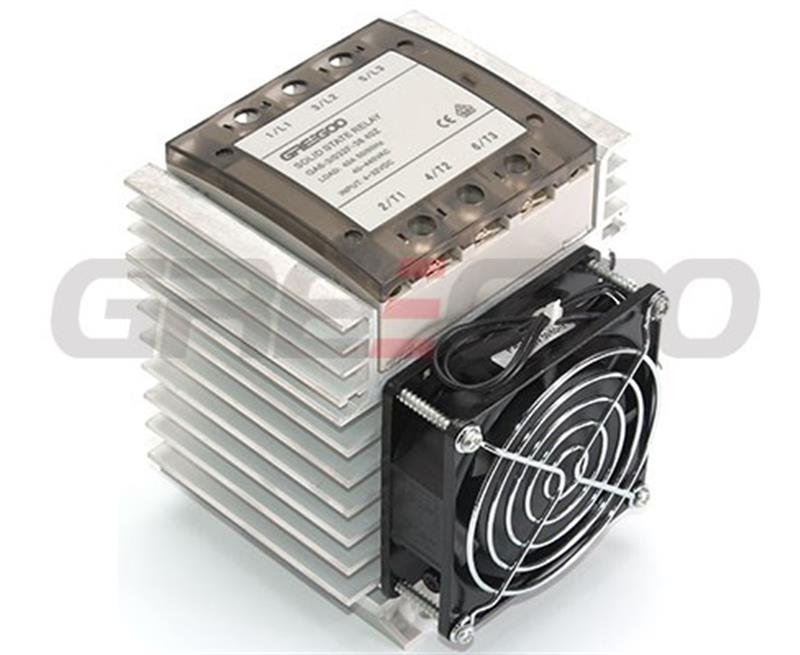

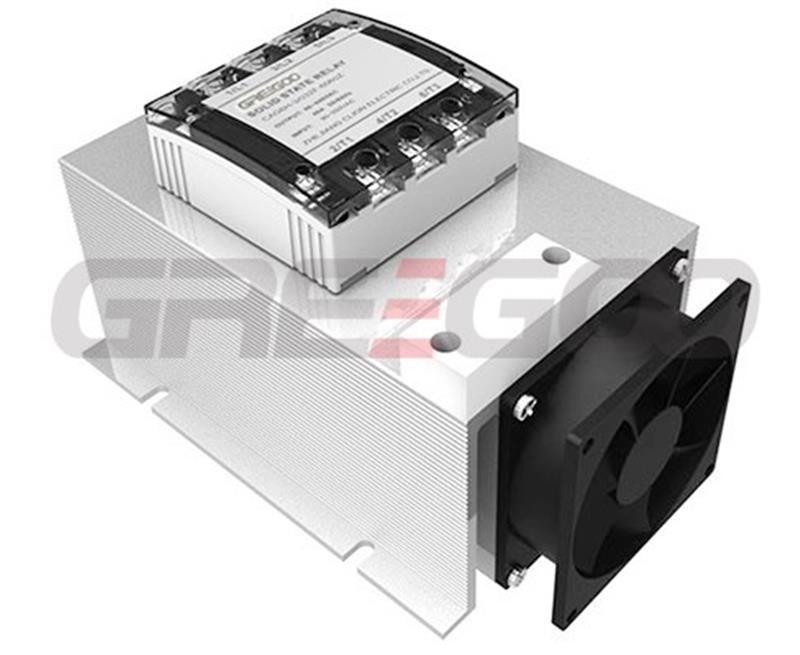

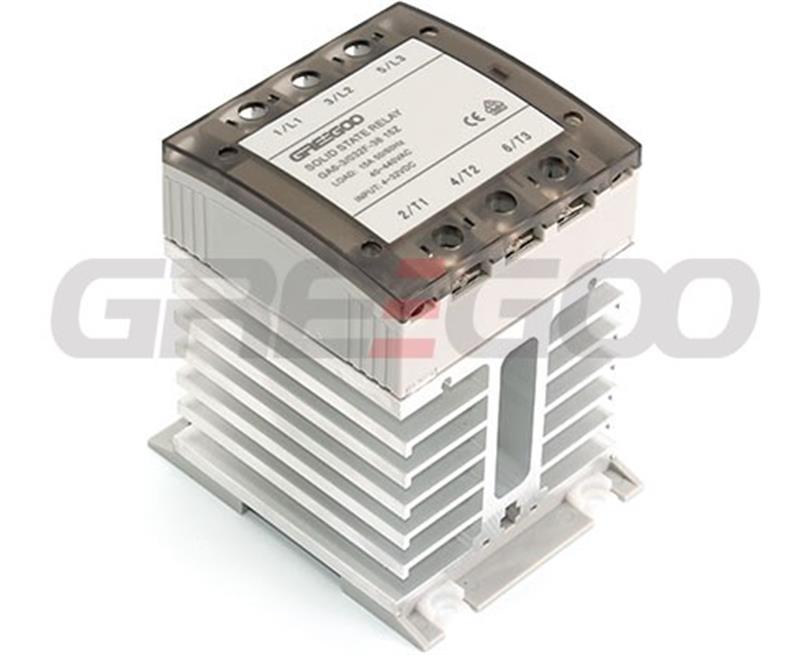

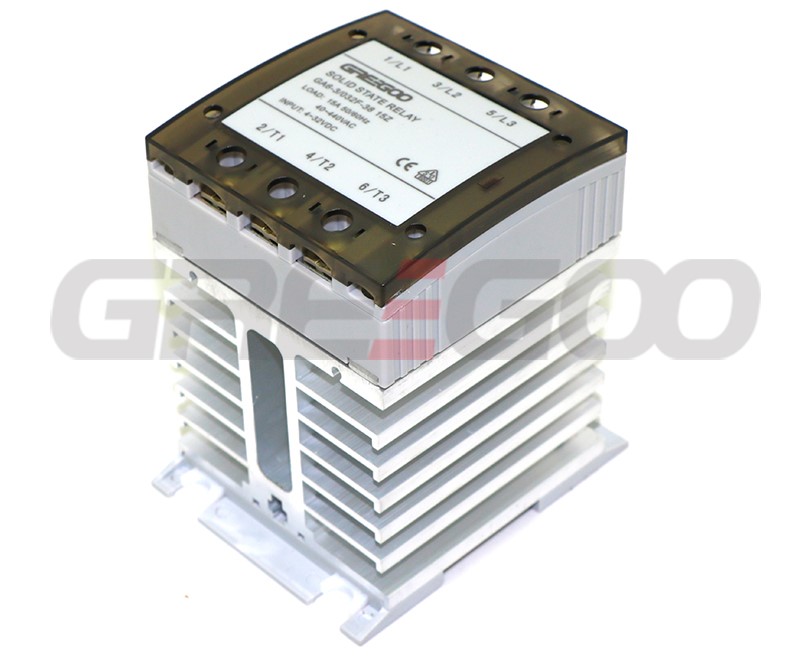

Air cooled solid state relay assemblies, 3 phase, heatsink combined SSR.

Model No.	Control Voltage	Load Voltage	Rated Current	Heatsink	Dimensions
GA6-3/032F-3810Z	4-32VDC	40-440VAC	10A	HH-055	100X80X110
GA6-3/032F-3815Z	4-32VDC	40-440VAC	15A	HH-055	100X80X110
GA6-3/032F-3820Z	4-32VDC	40-440VAC	20A	HH-057	100X110X127
GA6-3/032F-3825Z	4-32VDC	40-440VAC	25A	HH-057	100X110X127
GA6-3/032F-3830Z	4-32VDC	40-440VAC	30A	HH-057	100X110X127
GA6-3/032F-3840Z	4-32VDC	40-440VAC	40A	HH-057F	125X110X127

GA6-3/250F-3810Z	90-250VAC	40-440VAC	10A	HH-055	100X80X110
GA6-3/250F-3815Z	90-250VAC	40-440VAC	15A	HH-055	100X80X110
GA6-3/250F-3820Z	90-250VAC	40-440VAC	20A	HH-057	100X110X127
GA6-3/250F-3825Z	90-250VAC	40-440VAC	25A	HH-057	100X110X127
GA6-3/250F-3830Z	90-250VAC	40-440VAC	30A	HH-057	100X110X127
GA6-3/250F-3840Z	90-250VAC	40-440VAC	40A	HH-057F	125X110X127

FAQ

Download

GA6 series solid state relays with heatsink (PDF)GA6 series solid state relays with heatsink (three phase) (PDF)
