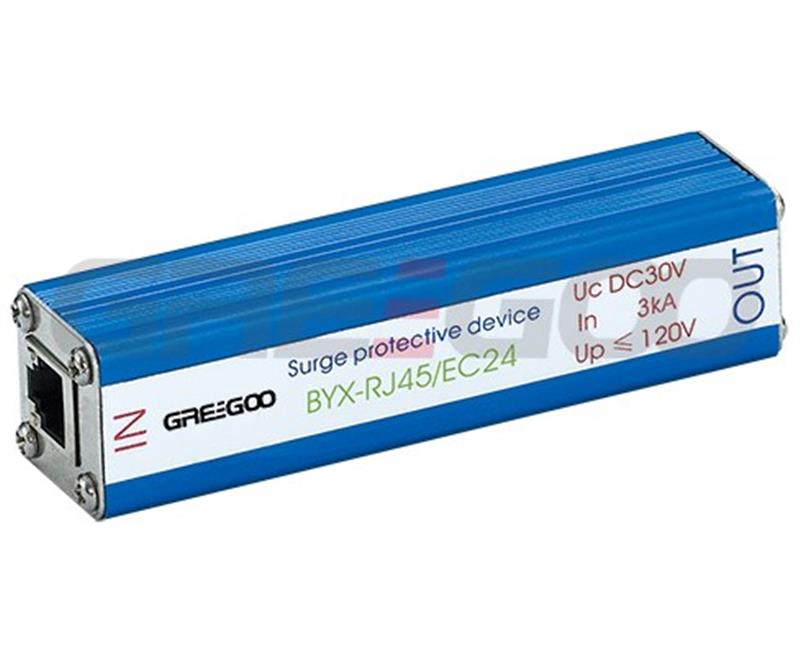

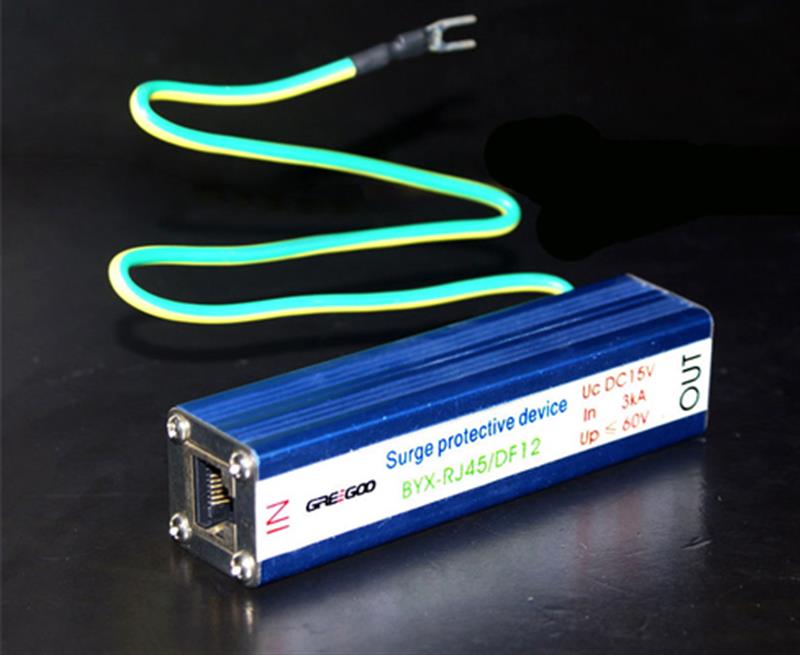

BYX-RJ45 SPD
| Model | Unit | BYX-RJ45/DC5 | BYX-RJ45/CC12 | BYX-RJ45/EC24 | BYX-RJ45/FC48 | BYX-RJ45/CC110 |
| Rated operational voltage (Un) | V | 5V DC | 12V DC | 24V DC | 48V DC | 110V AC |
| Nominal discharge current (8/20us) In | kA | 3 | 3 | 3 | 3 | 3 |
| Voltage protection level (Up) | V | 40 | 60 | 120 | 200 | 500 |
| Frequency range | MHz | 2 | 2 | 2 | 2 | 2 |
| Insert loss | dB | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
| Protection pins | 1,2,3,6 | 2,3,4,5 | 3,4,5,6 | 1,2,3,4,5,6,7,8 | 2,3,4,5 | |
| Reponse time | ns | 1 | 1 | 1 | 1 | 1 |
| Model | Unit | BYX-RJ45/DD5 | BYX-RJ45/CD12 | BYX-RJ45/ED24 | BYX-RJ45/FD48 | BYX-RJ45/CD110 |
| Rated operational voltage (Un) | V | 5V DC | 12V DC | 24V DC | 48V DC | 110V AC |
| Nominal discharge current (8/20us) In | kA | 3 | 3 | 3 | 3 | 3 |
| Voltage protection level (Up) | V | 40 | 60 | 120 | 200 | 500 |
| Frequency range | MHz | 10 | 10 | 10 | 10 | 10 |
| Insert loss | dB | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
| Protection pins | 1,2,3,6 | 2,3,4,5 | 3,4,5,6 | 1,2,3,4,5,6,7,8 | 2,3,4,5 | |
| Reponse time | ns | 1 | 1 | 1 | 1 | 1 |
| Model | Unit | BYX-RJ45/DF5 | BYX-RJ45/CF12 | BYX-RJ45/EF24 | BYX-RJ45/FF48 | BYX-RJ45/DF110 |
| Rated operational voltage (Un) | V | 5V DC | 12V DC | 24V DC | 48V DC | 110V AC |
| Nominal discharge current (8/20us) In | kA | 3 | 3 | 3 | 3 | 3 |
| Voltage protection level (Up) | V | 40 | 60 | 120 | 200 | 500 |
| Frequency range | MHz | 100 | 100 | 100 | 100 | 100 |
| Insert loss | dB | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
| Protection pins | 1,2,3,6 | 2,3,4,5 | 3,4,5,6 | 1,2,3,4,5,6,7,8 | 2,3,4,5 | |
| Reponse time | ns | 1 | 1 | 1 | 1 | 1 |
