Capacitive sensor CM24
Home Products Proximity Photoelectric SensorCapacitive proximity sensorsCapacitive sensor CM24
Product Details

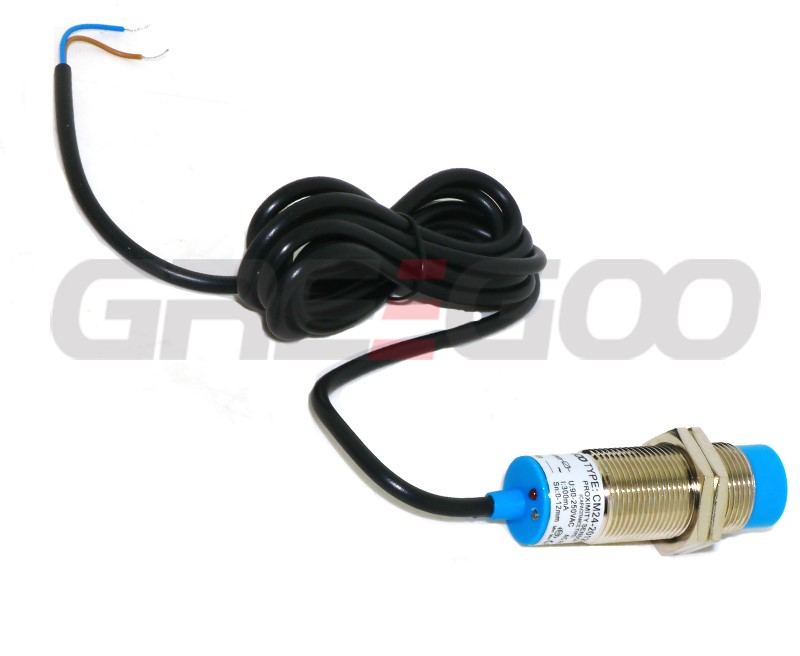

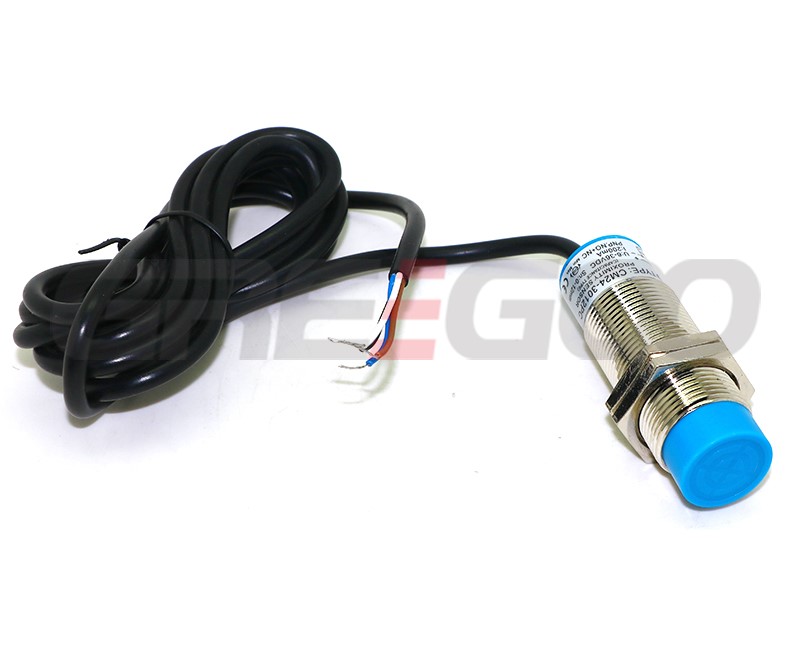

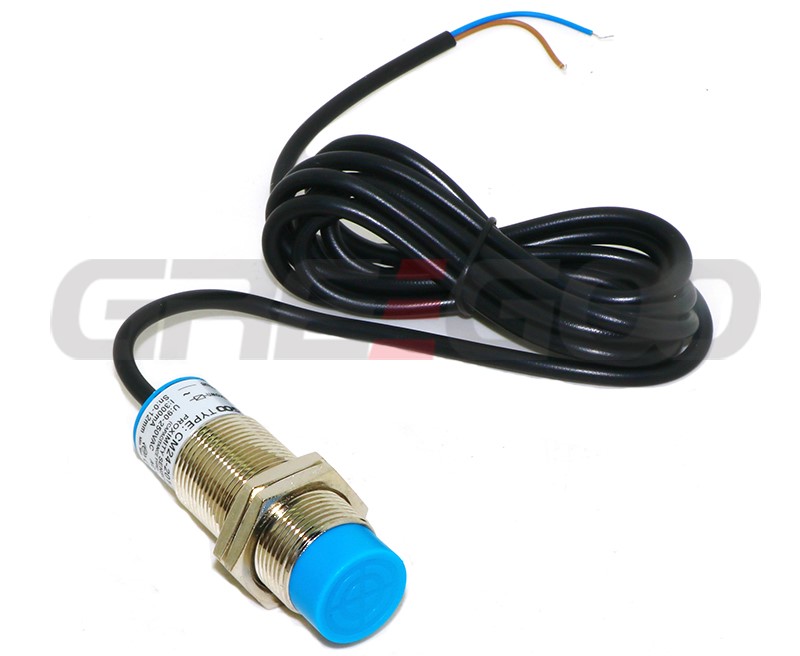

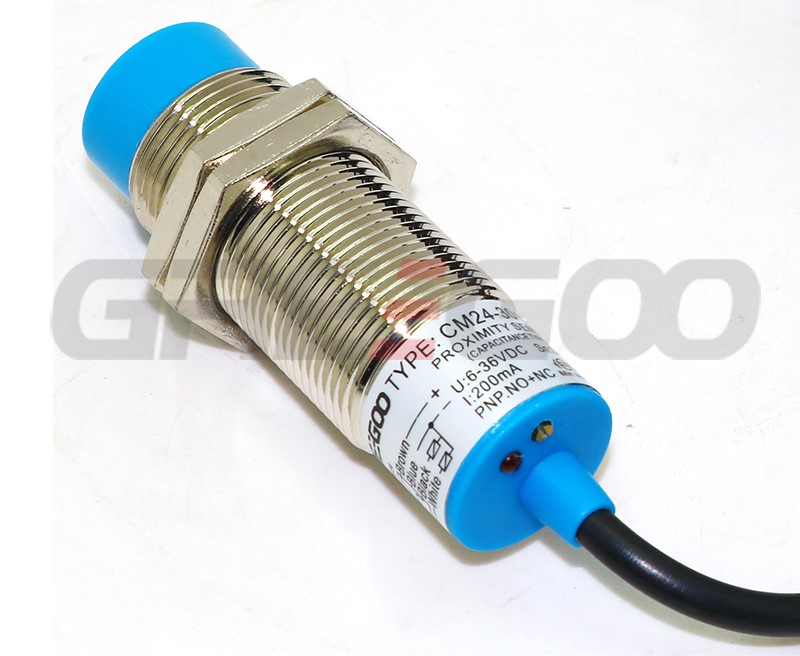

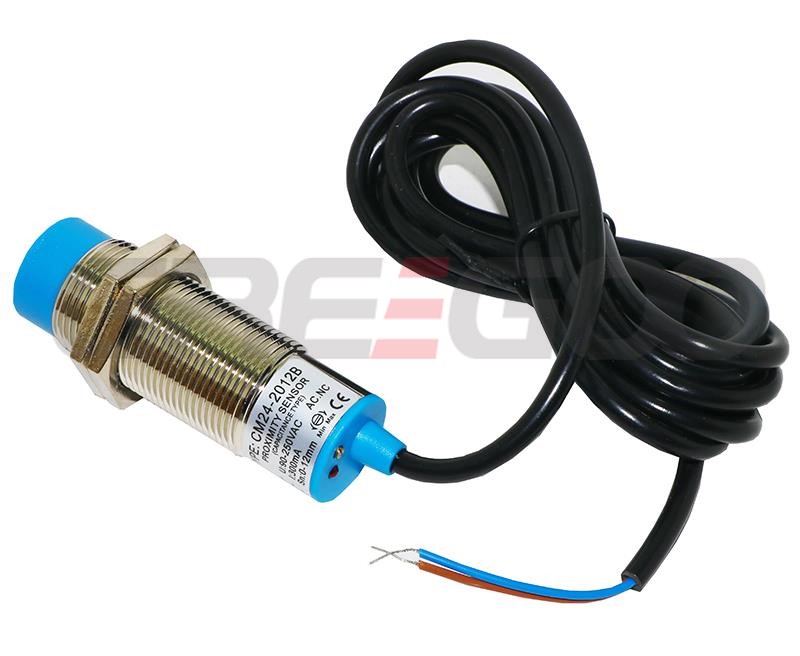

Capacitive sensor CM24
Model NO. | Detection distance | Working voltage | Output | Flush | |
Form | State | ||||
CM24-3008NA | 0 -8mm | DC6-36V | NPN | NO | Flush |
CM24-3008NB | 0 -8mm | DC6-36V | NPN | NC | Flush |
CM24-3008NC | 0 -8mm | DC6-36V | NPN | NO NC | Flush |
CM24-3008PA | 0 -8mm | DC6-36V | PNP | NO | Flush |
CM24-3008PB | 0 -8mm | DC6-36V | PNP | NC | Flush |
CM24-3008PC | 0 -8mm | DC6-36V | PNP | NO NC | Flush |
CM24 -2008A | 0 -8mm | AC90-250V | SCR Control lable silicon | NO | Flush |
CM24-2008B | 0 -8mm | AC90-250V | SCR Control lable silicon | NC | Flush |
CM24-3012NA | 0 -12mm | DC6-36V | NPN | NO | Non-flush |
CM24-3012NB | 0 -12mm | DC6-36V | NPN | NC | Non-flush |
CM24-3012NC | 0 -12mm | DC6-36V | NPN | NO NC | Non-flush |
CM24-3012PA | 0 -12mm | DC6-36V | PNP | NO | Non-flush |
CM24-3012PB | 0 -12mm | DC6-36V | PNP | NC | Non-flush |
CM24-3012PC | 0 -12mm | DC6-36V | PNP | NO NC | Non-flush |
CM24 -2012A | 0 -12mm | AC90-250V | SCR Control lable silicon | NO | Non-flush |
CM24-2012B | 0 -12mm | AC90-250V | SCR Control lable silicon | NC | Non-flush |
