Capacitive sensor CM30
Home Products Proximity Photoelectric SensorCapacitive proximity sensorsCapacitive sensor CM30
Product Details
Capacitive sensor CM30
| Model NO. | Detection distance | Working voltage | Output | Flush | |
| Form | State | ||||
| CM30-3010NA | 0 -10mm | DC6-36V | NPN | NO | Flush |
| CM30-3010NB | 0 -10mm | DC6-36V | NPN | NC | Flush |

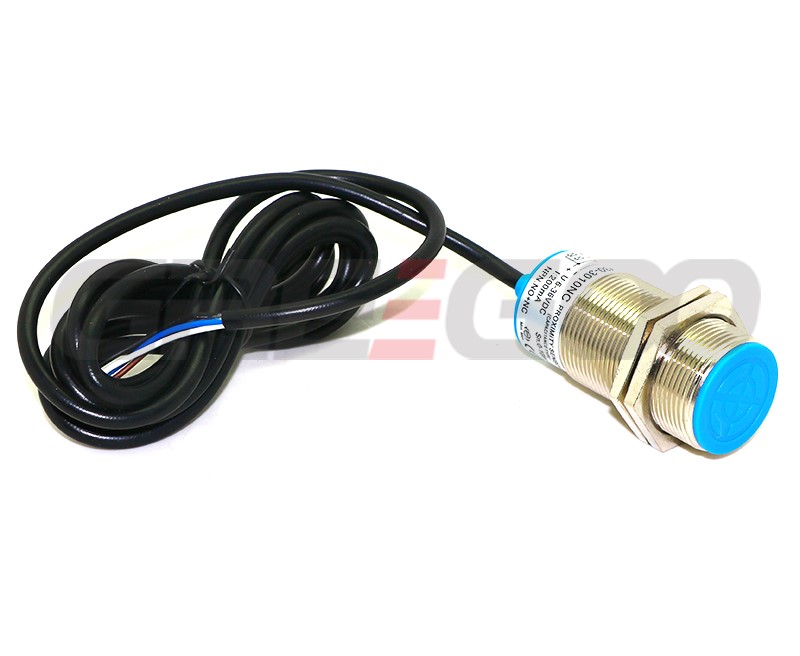

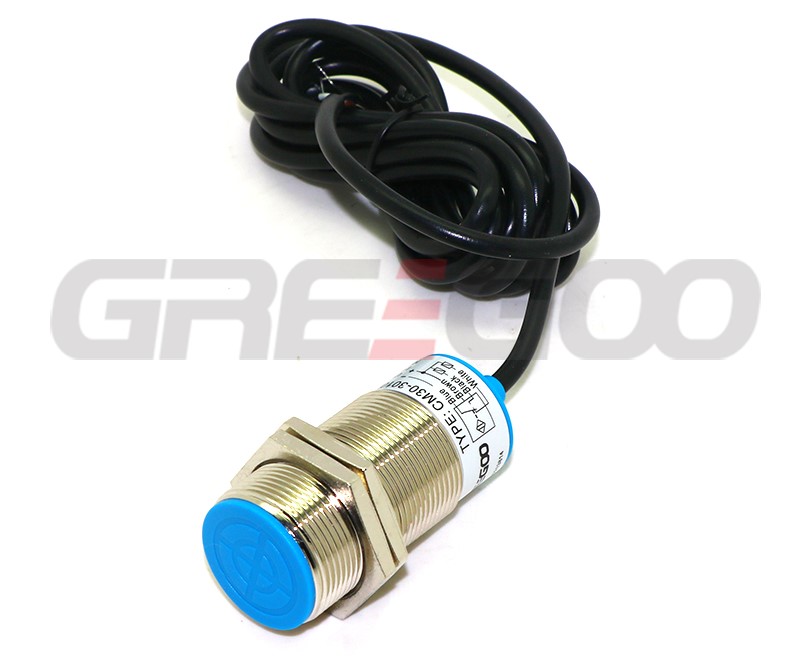

| CM30-3010NC | 0 -10mm | DC6-36V | NPN | NO NC | Flush |
| CM30-3010PA | 0 -10mm | DC6-36V | PNP | NO | Flush |
| CM30-3010PB | 0 -10mm | DC6-36V | PNP | NC | Flush |
| CM30-3010PC | 0 -10mm | DC6-36V | PNP | NO NC | Flush |
| CM30 -2010A | 0 -10mm | AC90-250V | SCR Control lable silicon | NO | Flush |
| CM30-2010B | 0 -10mm | AC90-250V | SCR Control lable silicon | NC | Flush |
| CM30-3015NA | 0 -15mm | DC6-36V | NPN | NO | Non-flush |
| CM30-3015NB | 0 -15mm | DC6-36V | NPN | NC | Non-flush |
| CM30-3015NC | 0 -15mm | DC6-36V | NPN | NO NC | Non-flush |
| CM30-3015PA | 0 -15mm | DC6-36V | PNP | NO | Non-flush |
| CM30-3015PB | 0 -15mm | DC6-36V | PNP | NC | Non-flush |
| CM30-3015PC | 0 -15mm | DC6-36V | PNP | NO NC | Non-flush |
| CM30 -2015A | 0 -15mm | AC90-250V | SCR Control lable silicon | NO | Non-flush |

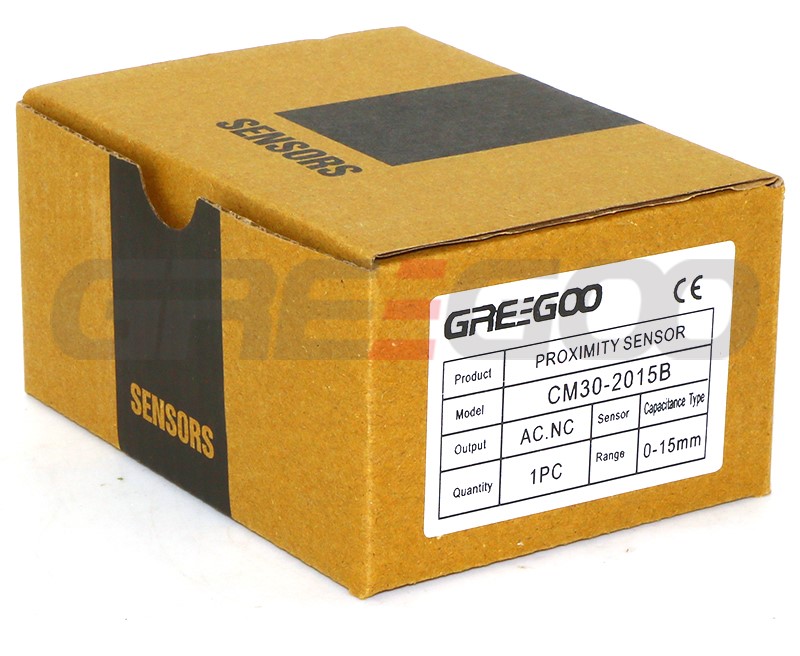

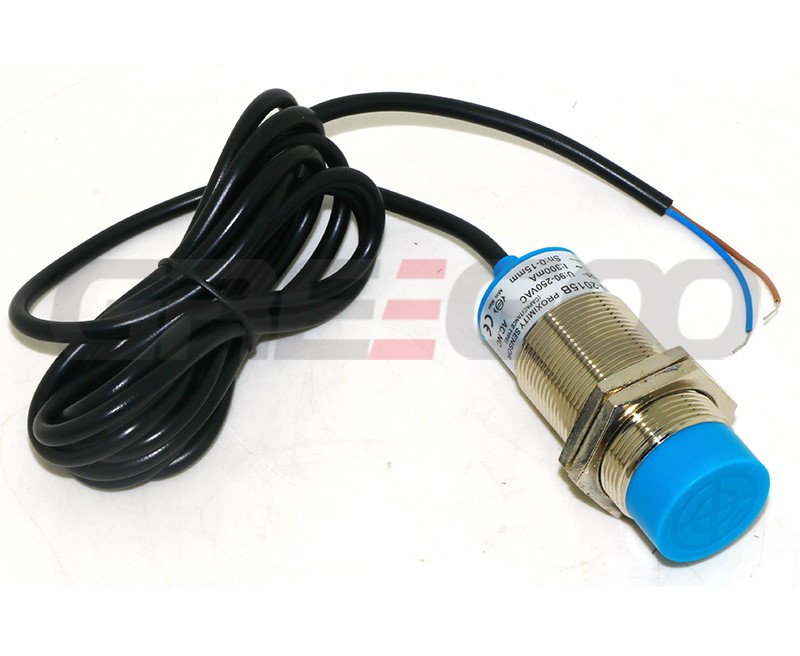

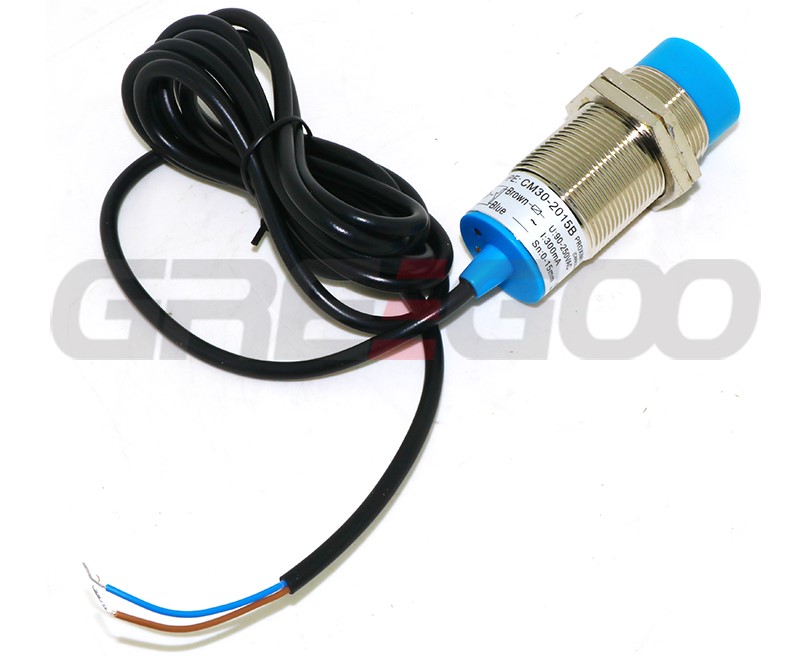

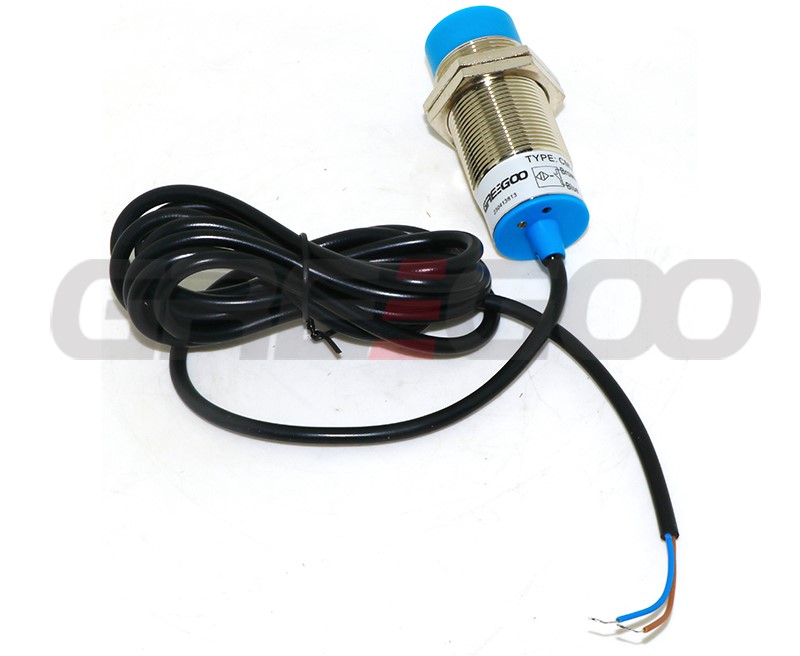

| CM30-2015B | 0 -15mm | AC90-250V | SCR Control lable silicon | NC | Non-flush |
Inquiry
Need more information?
Contact us to request pricing, availability and customization options.
