CHL heavy duty limit switch
Home Products Switch & SwitchgearLimit SwitchCHL heavy duty limit switch
Product Details
CHL heavy duty limit switch

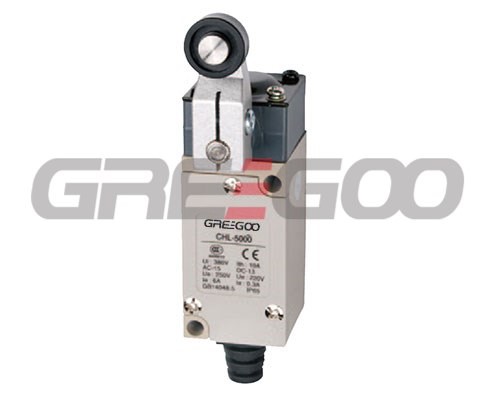

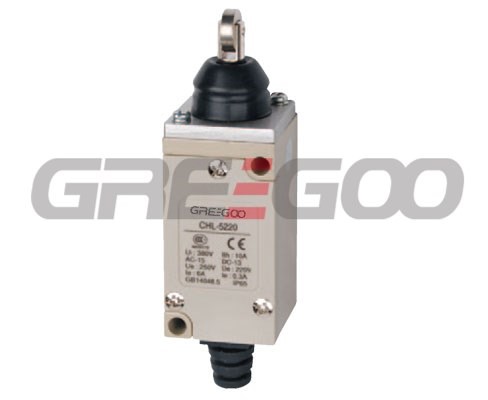

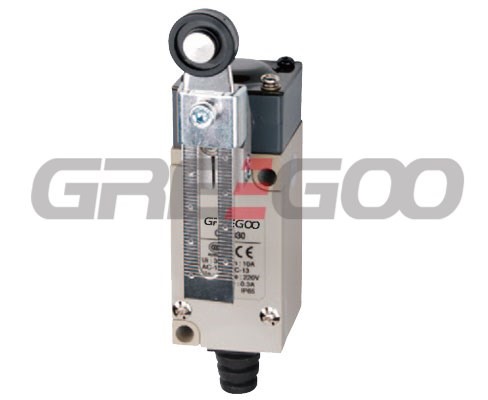

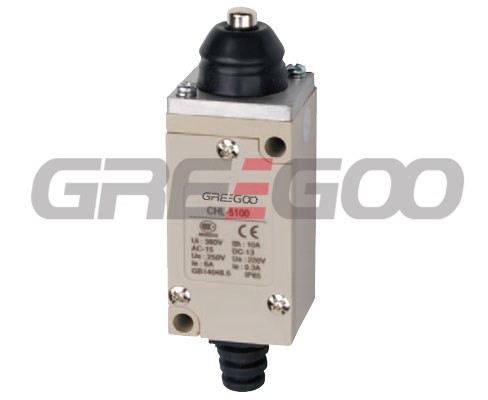

| Models | CHL | CHL5000 | CHL5030 | CHL5050 | CHL5100 | CHL5200 | CHL5220 | CHL5300 | CHL5330 | CHL5381 | CHL5391 |
| Operating force | OF Max. | 750g-cm | 750g-cm | 750g-cm | 750g-cm | 900g-cm | 900g-cm | 150g | 150g | 150g | 550g-cm |
| Release force | RF Min. | 100g-cm | 100g-cm | 100g-cm | 200g | 200g | 200g | 30g | 30g | 30g | 100g-cm |
| Pre-travel | PT Max. | 20 º | 20 º | 20 º | 1.8mm | 1.8mm | 1.8mm | 30mm | 30mm | 30mm | 20 º |
| Tripping position | TP ± 10% | 22.5 º | 22.5 º | 22.5 º | 2.0mm | 2.0mm | 2.0mm | 22.5 º | 22.5 º | 22.5 º | 22.5 º |
| Movement differential | MD Max. | 10 º | 10 º | 10 º | 1.2mm | 1.2mm | 1.2mm | 14 º | 14 º | 14 º | 14 º |
| Over travel | OT Min. | 75 º | 75 º | 75 º | 4.0mm | 4.0mm | 4.0mm | 20mm | 20mm | 20mm | 75 º |
| Total travel | TT Min. | 95 º | 95 º | 95 º | 5.8mm | 5.8mm | 5.8mm | 50mm | 50mm | 50mm | 95 º |
