D62-400 Diode, Press Welded Diode 400A
Home Products Stud Rectifier DiodeGeneral Purpose Stud Diode D62-400 Diode, Press Welded Diode 400A
D62-400 Diode, Press Welded Diode 400A
Diodes type D62 are of modern design with internal spring loaded contacts and pressure welded glass-to-metal seal. Designed for use in power electronic circuits and equipment under normal operating conditions.

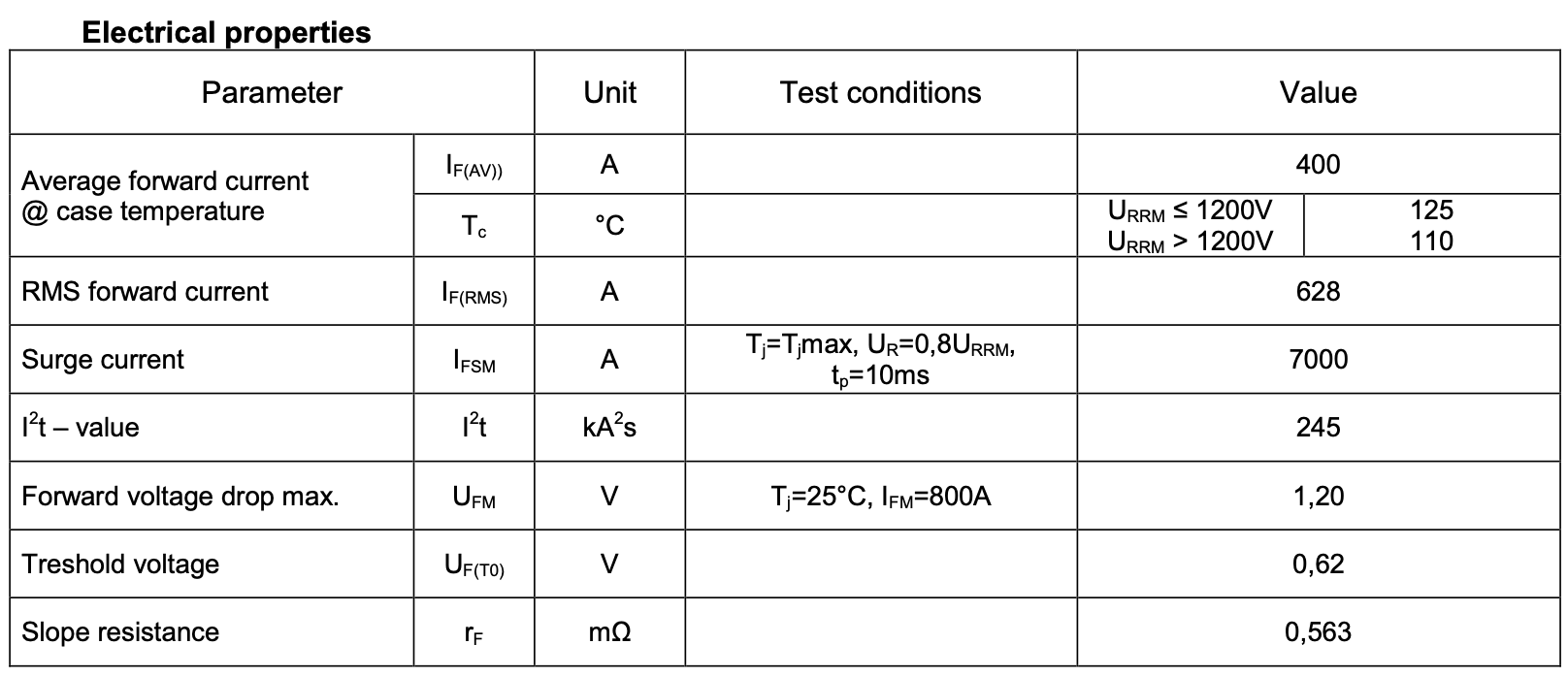

Key Parameter
URRM up to 1600V
IF(AV) 400A
IFSM 7000A
Features
All diffused design
High current capabilities
High surge current capabilities
High rates voltages
Low thermal impedance
Tested according to iec standards
Compact size and small weight
Application
High Voltage Power Supplies
Motor Control
Battery Chargers
Free Wheeling Diode
Resistance Welding
Ordering information
D62-400-16-N/R0
N - Cathode on base
R - Anode on base
