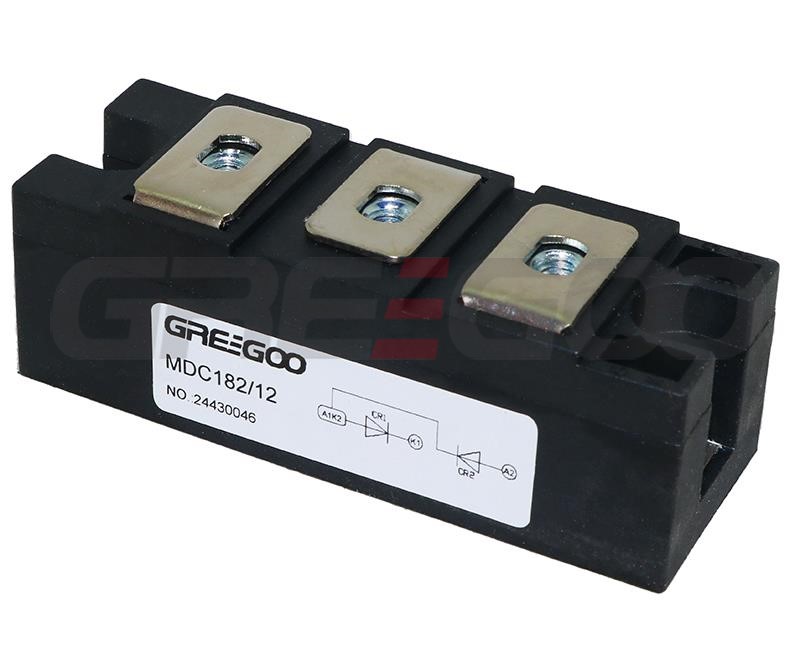

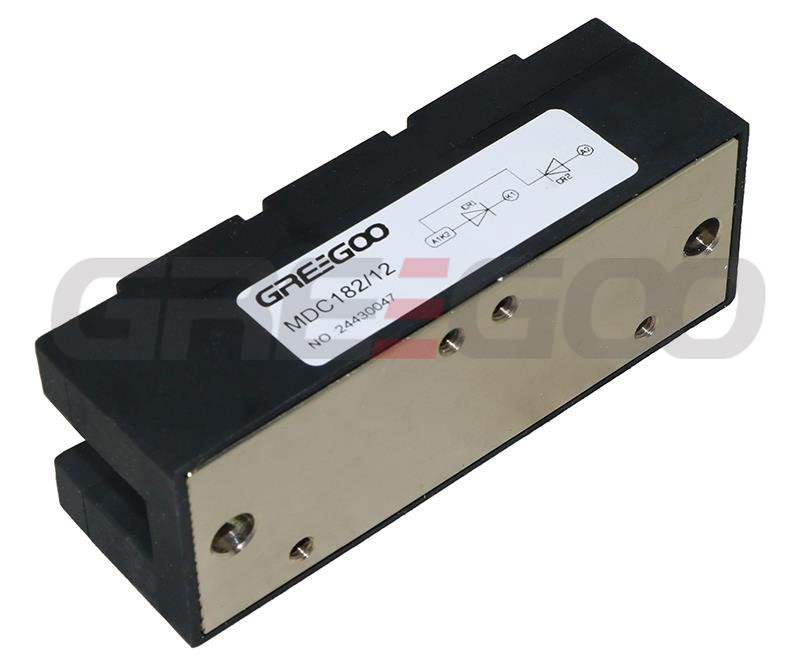

Dual diode module 135-182A
Home Products Thyristor Diode ModuleDual Diode ModuleDual diode module 135-182A
Product Details
Dual diode module 135-182A
| Symbol | Meaning |
| M | Module |
| D | Rectifier diode |
| C | C - in series, A - common anode, K - common cathode, X - anti-parallel |
| 26 | Average current |
| 12 | Voltage code: code x 100 = VRRM |
| Eg. | MDC26-12, Dual diode module, in series connection, 26A, 1600V. |

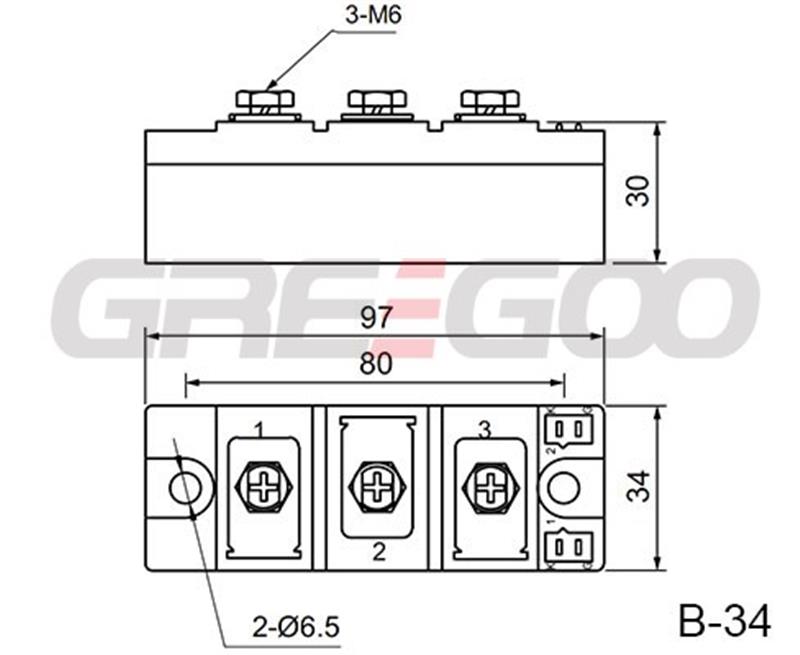

| Model No. | IF(AV) | VRRM | Package |
| MDC135-06 | 135A | 600V | B34 |
| MDC135-10 | 135A | 1000V | B34 |
| MDC135-12 | 135A | 1200V | B34 |
| MDC135-16 | 135A | 1600V | B34 |
| MDC135-18 | 135A | 1800V | B34 |

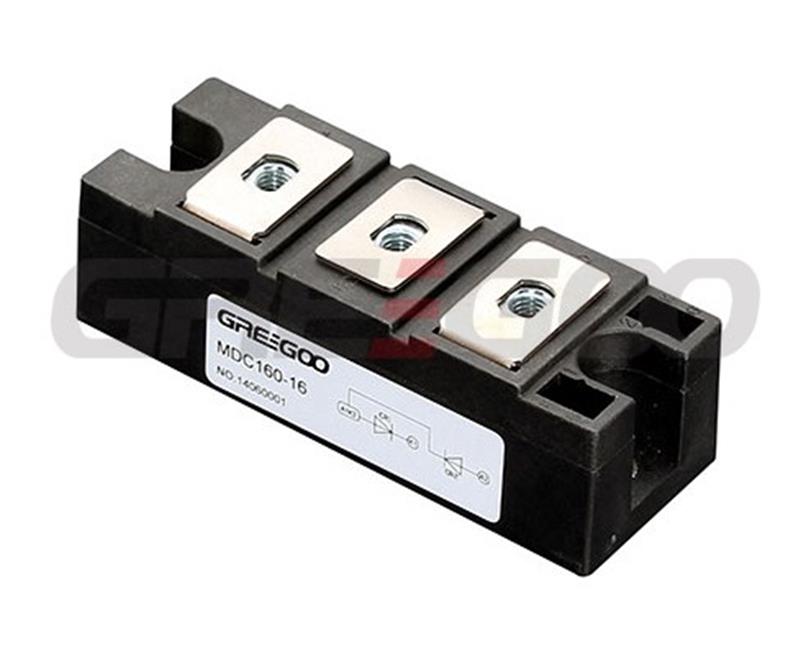

| MDC160-06 | 160A | 600V | B34 |
| MDC160-10 | 160A | 1000V | B34 |
| MDC160-12 | 160A | 1200V | B34 |
| MDC160-16 | 160A | 1600V | B34 |
| MDC160-18 | 160A | 1800V | B34 |
| MDC182-06 | 182A | 600V | B34 |
| MDC182-10 | 182A | 1000V | B34 |
| MDC182-12 | 182A | 1200V | B34 |

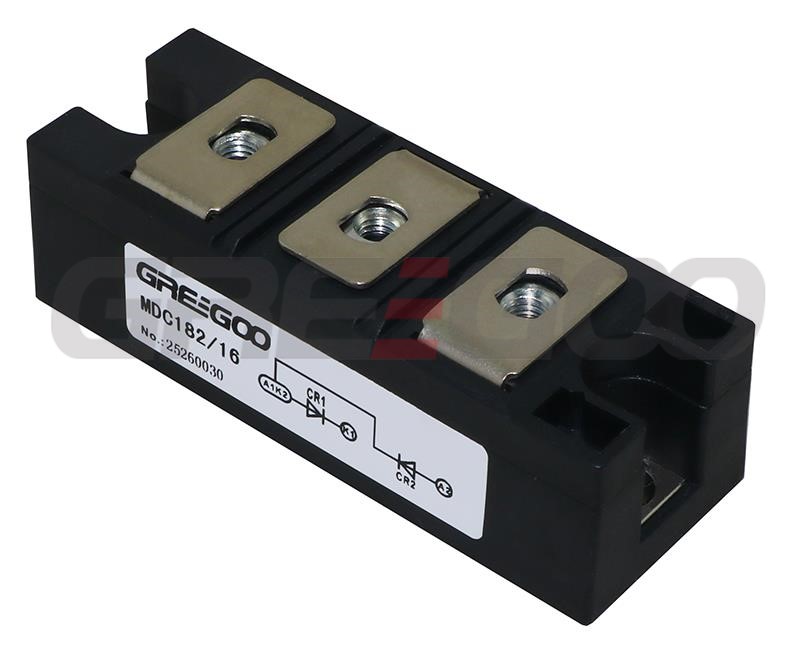

| MDC182-16 | 182A | 1600V | B34 |
| MDC182-18 | 182A | 1800V | B34 |
| MDK135-06 | 135A | 600V | B34 |
| MDK135-10 | 135A | 1000V | B34 |
| MDK135-12 | 135A | 1200V | B34 |
| MDK135-16 | 135A | 1600V | B34 |
| MDK135-18 | 135A | 1800V | B34 |
| MDK160-06 | 160A | 600V | B34 |
| MDK160-10 | 160A | 1000V | B34 |
| MDK160-12 | 160A | 1200V | B34 |
| MDK160-16 | 160A | 1600V | B34 |
| MDK160-18 | 160A | 1800V | B34 |
| MDK182-06 | 182A | 600V | B34 |
| MDK182-10 | 182A | 1000V | B34 |
| MDK182-12 | 182A | 1200V | B34 |
| MDK182-16 | 182A | 1600V | B34 |
| MDK182-18 | 182A | 1800V | B34 |
| MDA135-06 | 135A | 600V | B34 |
| MDA135-10 | 135A | 1000V | B34 |
| MDA135-12 | 135A | 1200V | B34 |
| MDA135-16 | 135A | 1600V | B34 |
| MDA135-18 | 135A | 1800V | B34 |
| MDA160-06 | 160A | 600V | B34 |
| MDA160-10 | 160A | 1000V | B34 |
| MDA160-12 | 160A | 1200V | B34 |
| MDA160-16 | 160A | 1600V | B34 |
| MDA160-18 | 160A | 1800V | B34 |
| MDA182-06 | 182A | 600V | B34 |
| MDA182-10 | 182A | 1000V | B34 |
| MDA182-12 | 182A | 1200V | B34 |
| MDA182-16 | 182A | 1600V | B34 |
| MDA182-18 | 182A | 1800V | B34 |

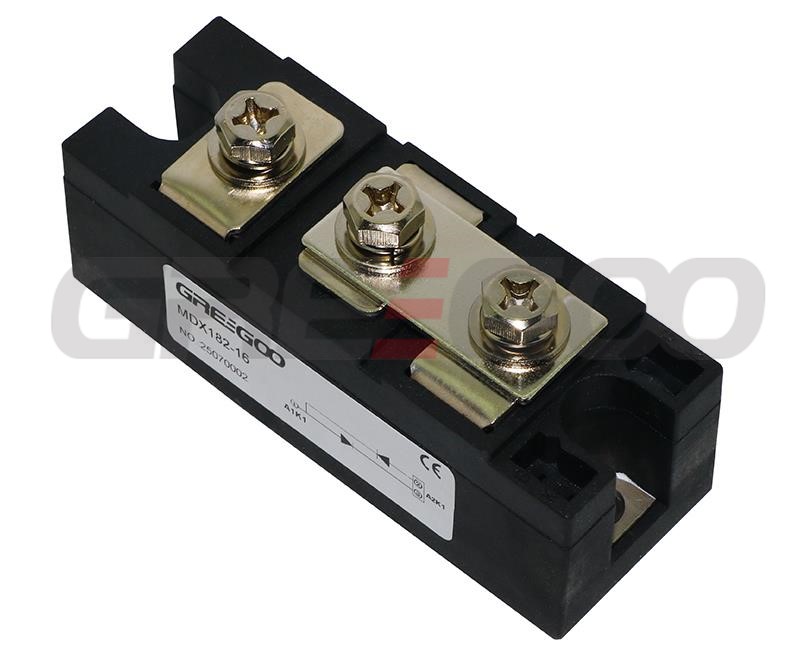

| MDX135-06 | 135A | 600V | B34 |
| MDX135-10 | 135A | 1000V | B34 |
| MDX135-12 | 135A | 1200V | B34 |
| MDX135-16 | 135A | 1600V | B34 |
| MDX135-18 | 135A | 1800V | B34 |
| MDX160-06 | 160A | 600V | B34 |
| MDX160-10 | 160A | 1000V | B34 |
| MDX160-12 | 160A | 1200V | B34 |
| MDX160-16 | 160A | 1600V | B34 |
| MDX160-18 | 160A | 1800V | B34 |
| MDX182-06 | 182A | 600V | B34 |
| MDX182-10 | 182A | 1000V | B34 |
| MDX182-12 | 182A | 1200V | B34 |
| MDX182-16 | 182A | 1600V | B34 |
| MDX182-18 | 182A | 1800V | B34 |
