Dual thyristor module 135-182A
Home Products Thyristor Diode ModuleDual Thyristor ModuleDual thyristor module 135-182A
Product Details

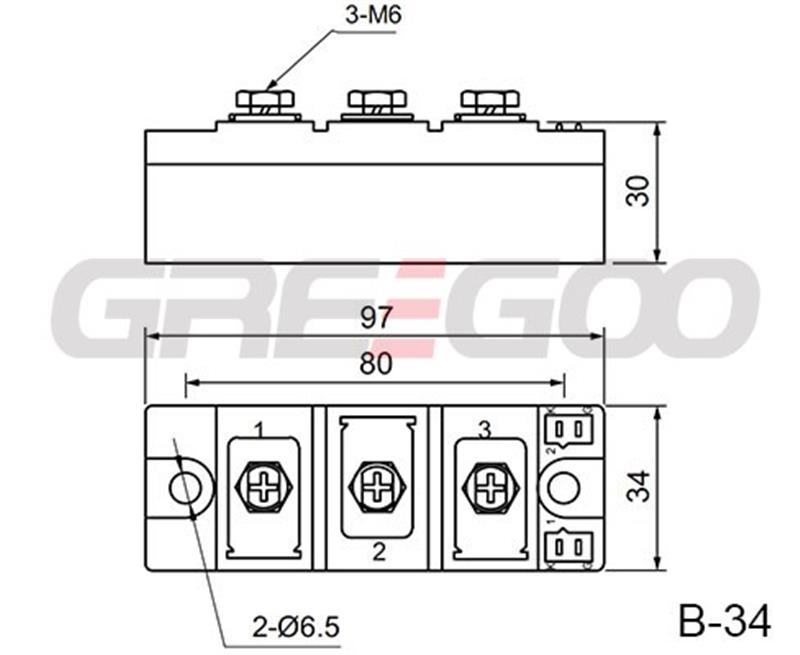

Dual thyristor module 135-182A
| Symbol | Meaning |
| M | Module |
| T | Phase control thyristor |
| C | C - in series, A - common anode, K - common cathode, X - anti-parallel |
| 26 | Average current |
| 12 | Voltage code: code x 100 = VRRM |
| Eg. | MTC26-12, Dual thyristor module, in series connection, 26A, 1600V. |
| VDRMVRRM | IT(AV) | ITSM | dv/dt | di/dt | IDRM | IGT | VGT | IH | VTM/ITM | VTO | rT | Rjc | |
| IRRM | |||||||||||||
| V | TC= | KA | V/us | A/us | mA | mA | V | mA | V /A | V | mΩ | ℃/W | |
| 85℃ A | |||||||||||||
| MTC135,MTA135,MTK135,MTX135 | 600-1800 | 135 | 3.8 | 800 | 100 | 20 | 150 | 2.5 | 100 | 1.75/410 | 0.8 | 2.12 | 0.2 |

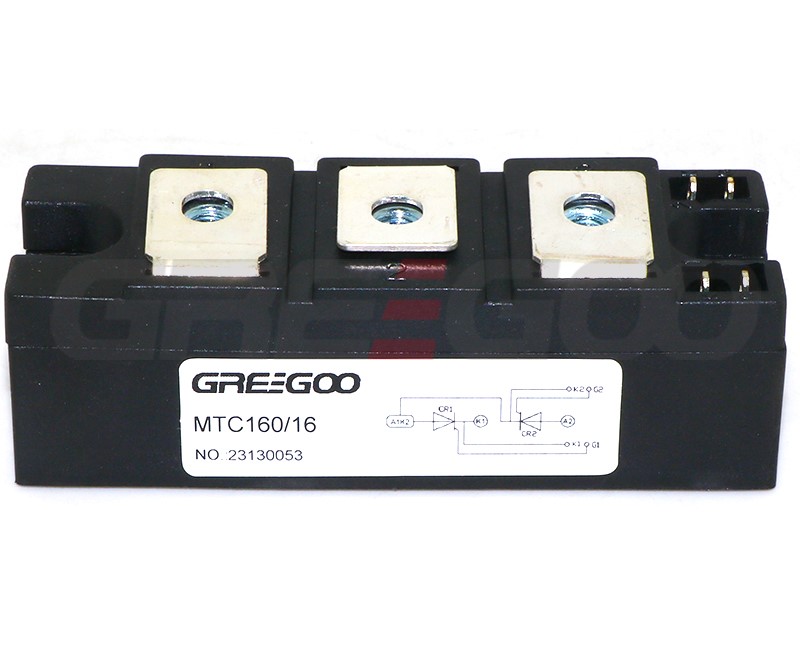

| MTC160,MTA160,MTK160,MTX160 | 600-1800 | 160 | 5.4 | 800 | 100 | 20 | 150 | 2.5 | 100 | 170/480 | 0.8 | 1.69 | 0.17 |

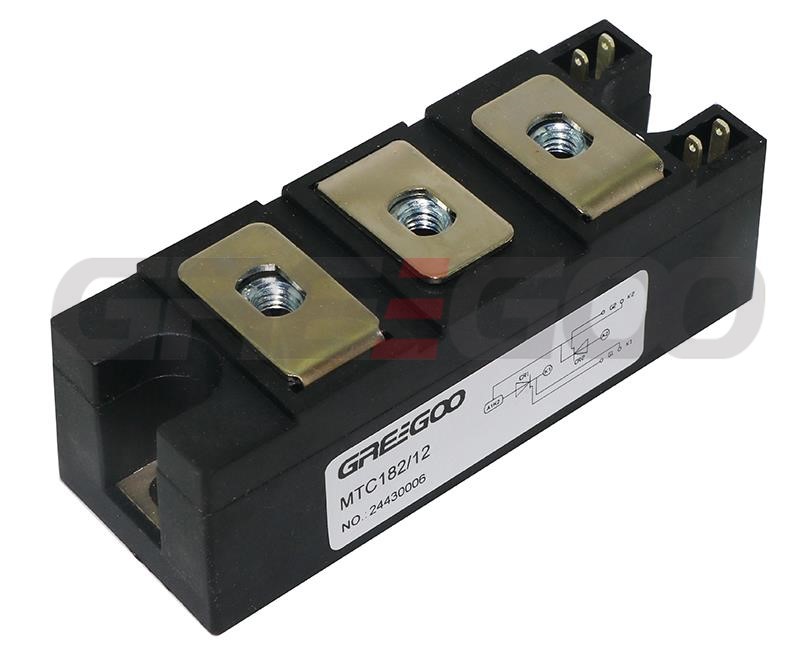

| MTC182,MTA182,MTK182,MTX182 | 600-1800 | 182 | 5.8 | 800 | 100 | 25 | 150 | 2.5 | 100 | 1.62/550 | 0.8 | 1.26 | 0.16 |
