1500A to 2000A thyristor modules
Home Products Thyristor Diode ModuleDual Thyristor Module1500A to 2000A thyristor modules
Product Details

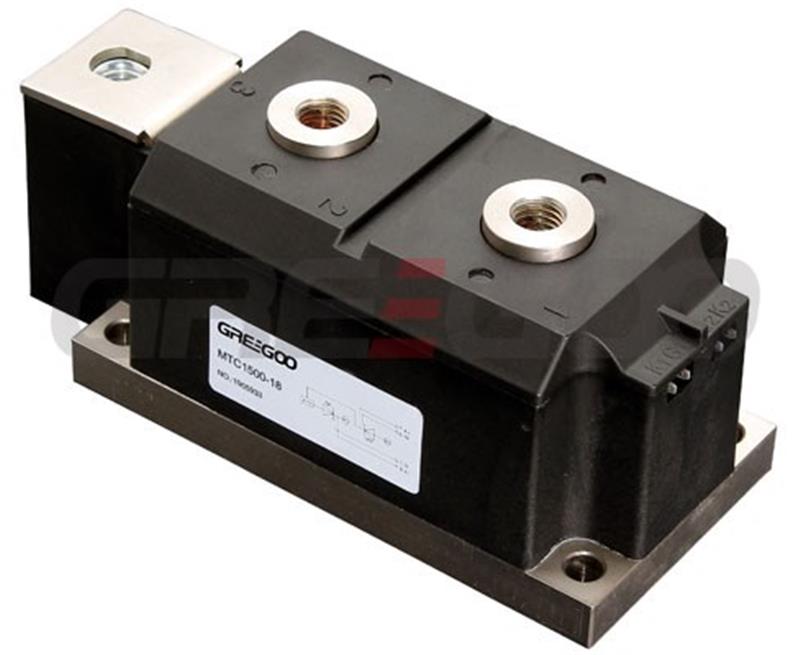

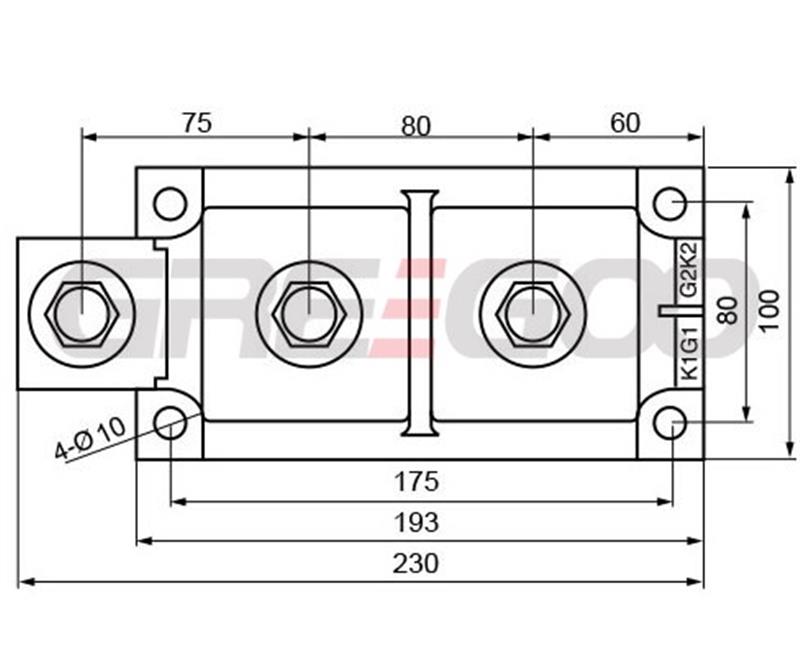

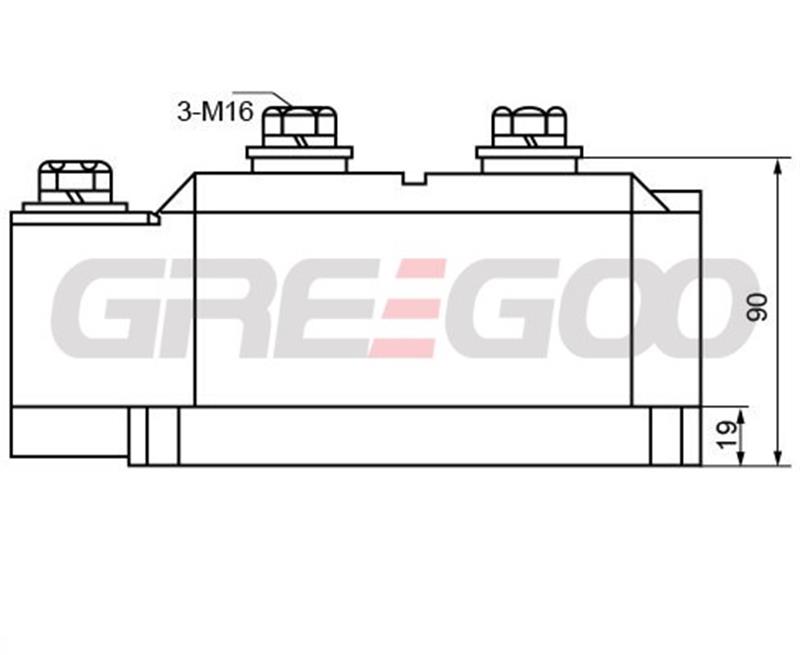

1500A to 2000A thyristor modules
Symbol | Meaning |
M | Module |
T | Phase control thyristor |
C | C - in series, A - common anode, K - common cathode, X - anti-parallel |
26 | Average current |
12 | Voltage code: code x 100 = VRRM |
Eg. | MTC26-12, Dual thyristor module, in series connection, 26A, 1600V. |
Type | VDRMVRRM | IT(AV) | ITSM | dv/dt | di/dt | IDRM | IGT | VGT | IH | VTM/ITM | VTO | rT | Rjc |
IRRM | |||||||||||||
V | TC= | KA | V/us | A/us | mA | mA | V | mA | V /A | V | mΩ | ℃/W | |
85℃ A | |||||||||||||
MTC1500,MTA1500,MTK1500,MTX1500 | 600-1800 | 1500 | 16 | 800 | 100 | 40 | 200 | 3 | 100 | 1.86/2400 | 0.8 | 0.42 | 0.054 |
MTC1800,MTA1800,MTK1800,MTX1800 | 600-1800 | 1800 | 20 | 800 | 100 | 60 | 200 | 3 | 100 | 1.96/3000 | 0.8 | 0.34 | 0.053 |
MTC2000,MTA2000,MTK2000,MTX2000 | 600-1800 | 2000 | 24 | 800 | 100 | 70 | 200 | 3 | 100 | 1.98/3000 | 0.8 | 0.29 | 0.051 |
Download
Inquiry
Need more information?
Contact us to request pricing, availability and customization options.
Related Products

Dual thyristor modules
1.All dataes apply to a single thyristor. 2.All values are for Tj=Tjm ,unless stated otherwise. 3.VTO:Threshold rT:Slope resistance The dataes are used to calculate conduction loss of device and heatsink at Tjm.
