Dual thyristor module 400A 500A
Home Products Thyristor Diode ModuleDual Thyristor ModuleDual thyristor module 400A 500A
Product Details

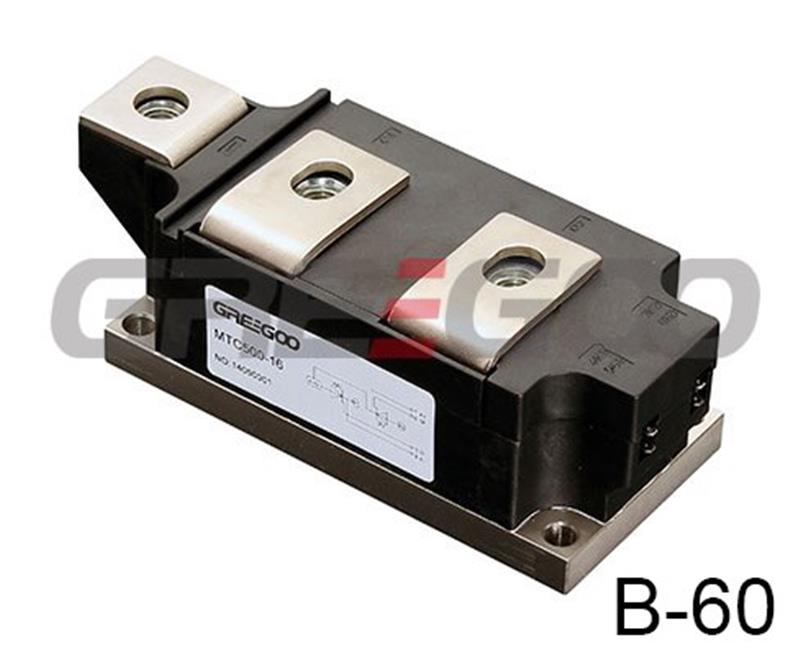

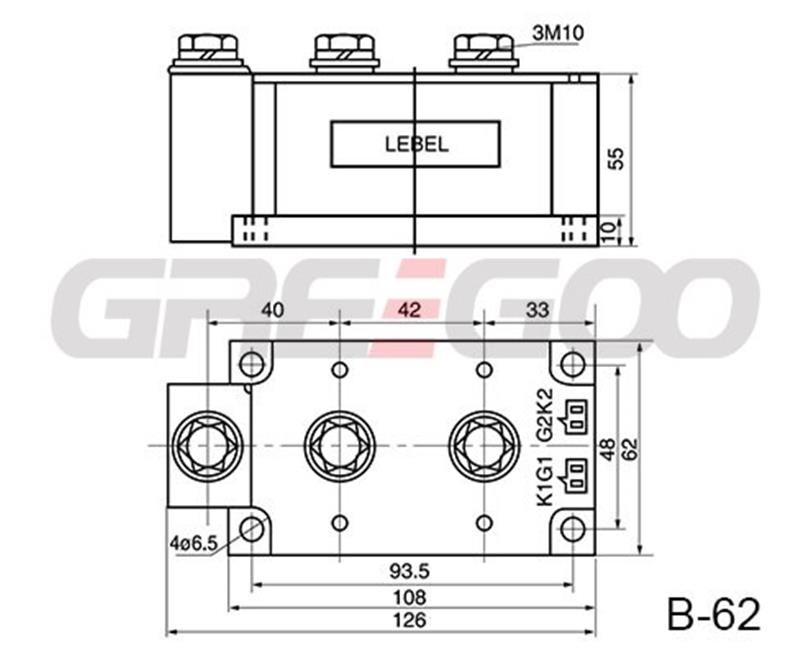

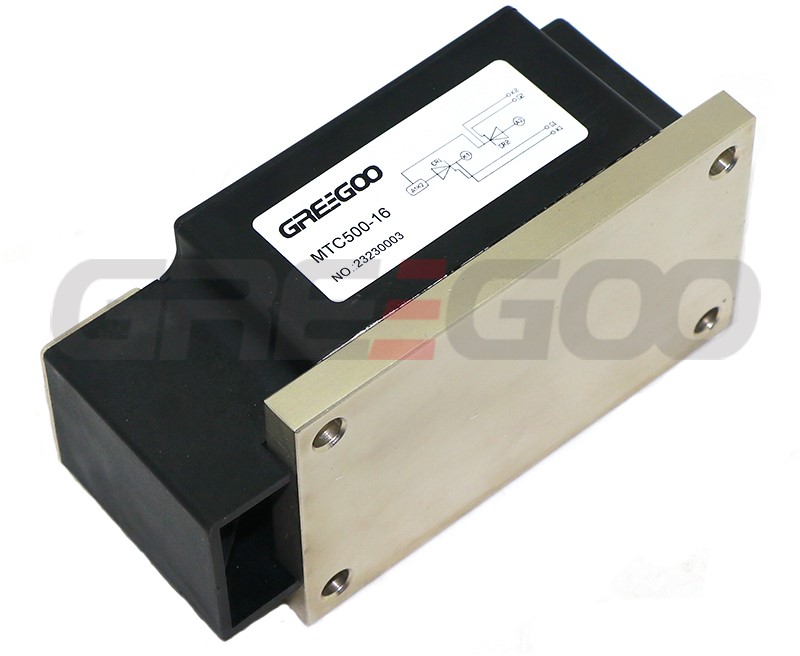

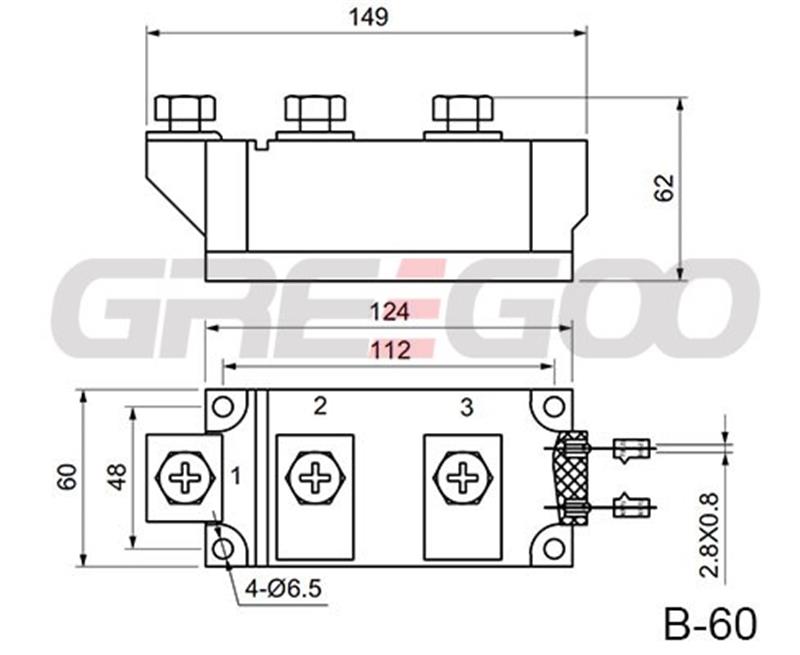

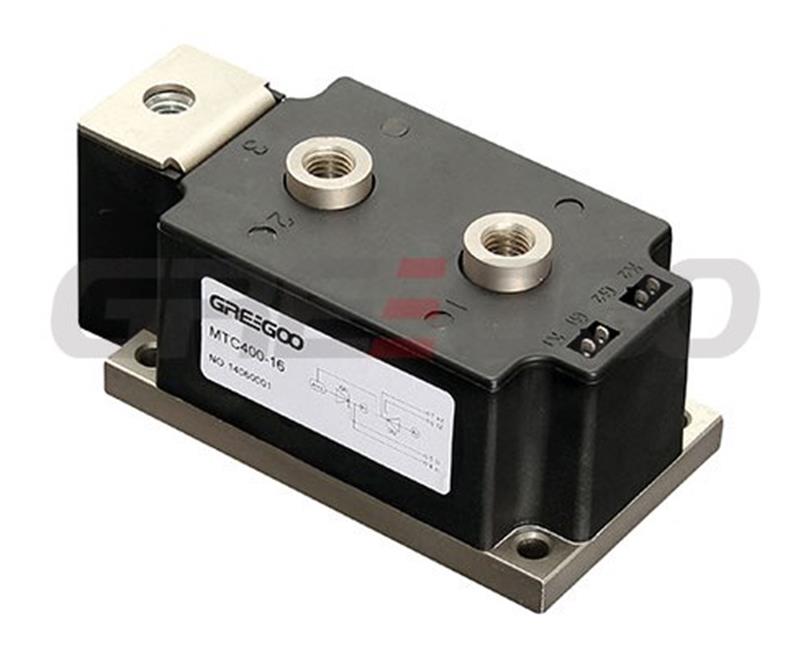

Dual thyristor module 400A 500A
| Symbol | Meaning |
| M | Module |
| T | Phase control thyristor |
| C | C - in series, A - common anode, K - common cathode, X - anti-parallel |
| 26 | Average current |
| 12 | Voltage code: code x 100 = VRRM |
| Eg. | MTC26-12, Dual thyristor module, in series connection, 26A, 1600V. |
| VDRMVRRM | IT(AV) | ITSM | dv/dt | di/dt | IDRM | IGT | VGT | IH | VTM/ITM | VTO | rT | Rjc | |
| IRRM | |||||||||||||
| V | TC= | KA | V/us | A/us | mA | mA | V | mA | V /A | V | mΩ | ℃/W | |
| 85℃ A | |||||||||||||
| MTC400,MTA400,MTK400,MTX400 | 600-1800 | 400 | 12 | 800 | 100 | 40 | 200 | 3 | 100 | 1.52/1200 | 0.8 | 0.49 | 0.08 |
| MTC500,MTA500,MTK500,MTX500 | 600-1800 | 500 | 16 | 800 | 100 | 40 | 200 | 3 | 100 | 1.44/1500 | 0.8 | 0.34 | 0.065 |
