Product Details

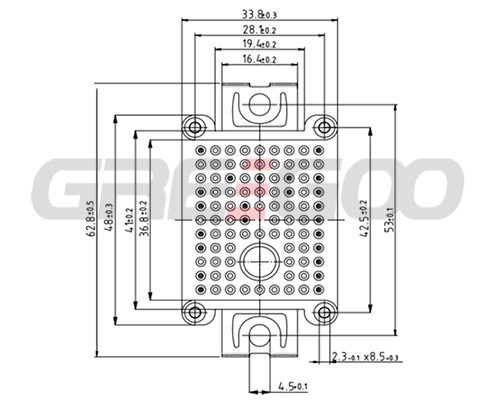

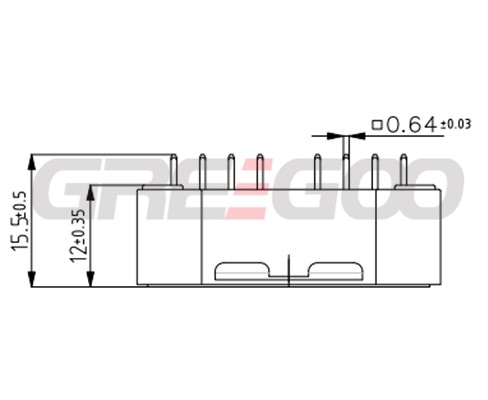

E1 full bridge 3 phase bridge PIM NPC
| Type | VCES | IC | VCE(sat) | E(on off) | Rth(J-C) | Packages |
| Tc=25℃ | Tc=80℃ | Tj=25℃ | Tj=125℃ | |||
| (V) | (A) | (V) | (mJ) | (K/W) | ||
| G25FF120TK | 1200 | 25 | 2.2 | 5.46 | 0.72 | E1 |
| G35FF120TK | 1200 | 35 | 2.2 | 7.9 | 0.45 | E1 |
| G15PI60TK | 1200 | 15 | 2.2 | 2.95 | 0.85 | E1 |
| G20FF60TE | 600 | 20 | 1.7 | 1.2 | 1.27 | E1 |
| G30FF60TE | 600 | 30 | 1.7 | 1.8 | 0.85 | E1 |
| G50FF60TE | 600 | 50 | 1.7 | 2.7 | 0.75 | E1 |
| G20FF60TK | 600 | 20 | 1.9 | 1 | 0.06 | E1 |
| G30FF60TK | 600 | 30 | 1.9 | 1.5 | 0.71 | E1 |
| G50FF60TK | 600 | 50 | 1.9 | 3 | 0.65 | E1 |
| G20PI60TE | 600 | 20 | 1.7 | 1.2 | 0.98 | E1 |
| G30PI60TE | 600 | 30 | 1.7 | 1.8 | 0.55 | E1 |
| G20PI60TK | 600 | 20 | 1.9 | 1.07 | 0.76 | E1 |
| G30PI60TK | 600 | 30 | 1.9 | 1.5 | 0.42 | E1 |
Inquiry
Need more information?
Contact us to request pricing, availability and customization options.
