G3 single switch
Home Products IGBT Power Module IGBT Module HousingG3 single switch
Product Details

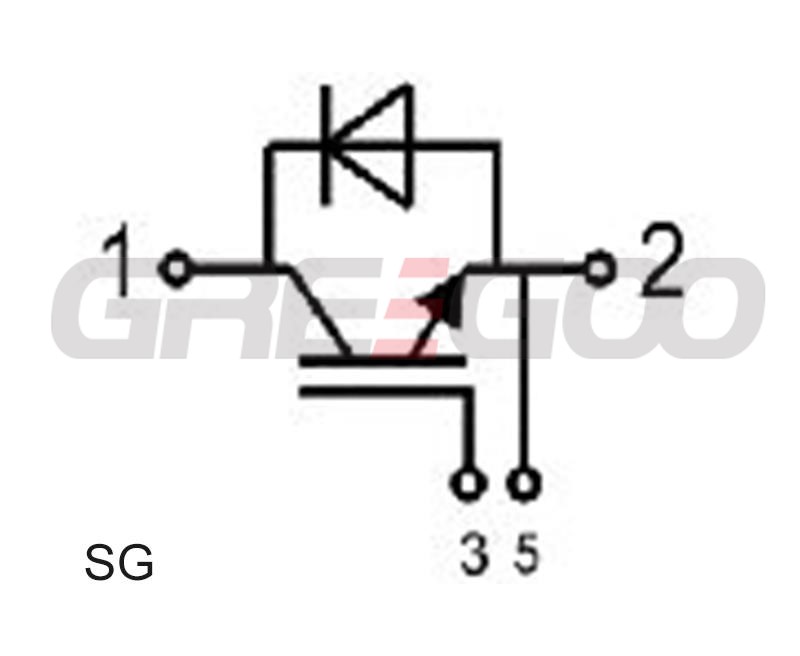

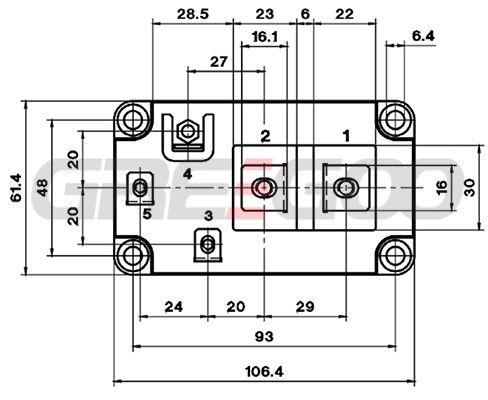

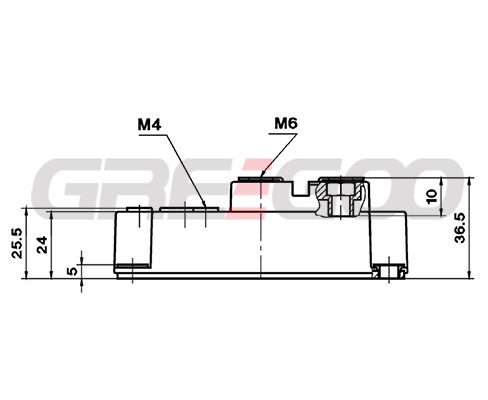

G3 single switch
| Type | VCES | IC | VCE(sat) | E(on off) | Rth(J-C) | Packages |
| Tc=25℃ | Tc=80℃ | Tj=25℃ | Tj=125℃ | |||
| (V) | (A) | (V) | (mJ) | (K/W) | ||
| G300SG120TE | 1200 | 300 | 1.9 | 36 | 0.12 | G3 |
| G400SG120TE | 1200 | 400 | 1.9 | 39 | 0.11 | G3 |
| G600SG120TE | 1200 | 600 | 1.9 | 64.8 | 0.08 | G3 |
| G300SG120TK | 1200 | 300 | 2.2 | 25 | 0.13 | G3 |
| G400SG120TK | 1200 | 400 | 2.2 | 30 | 0.1 | G3 |
| G600SG120TK | 1200 | 600 | 2.2 | 48 | 0.07 | G3 |

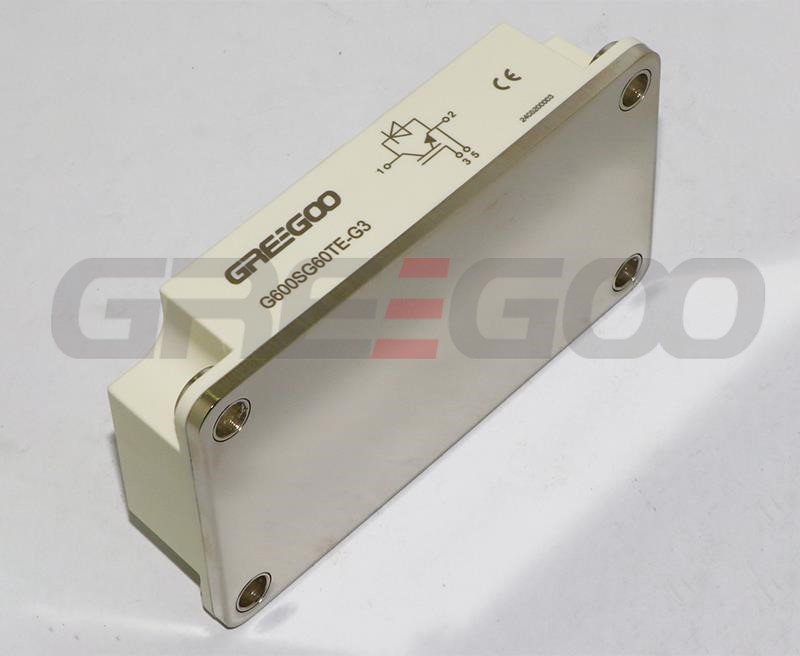

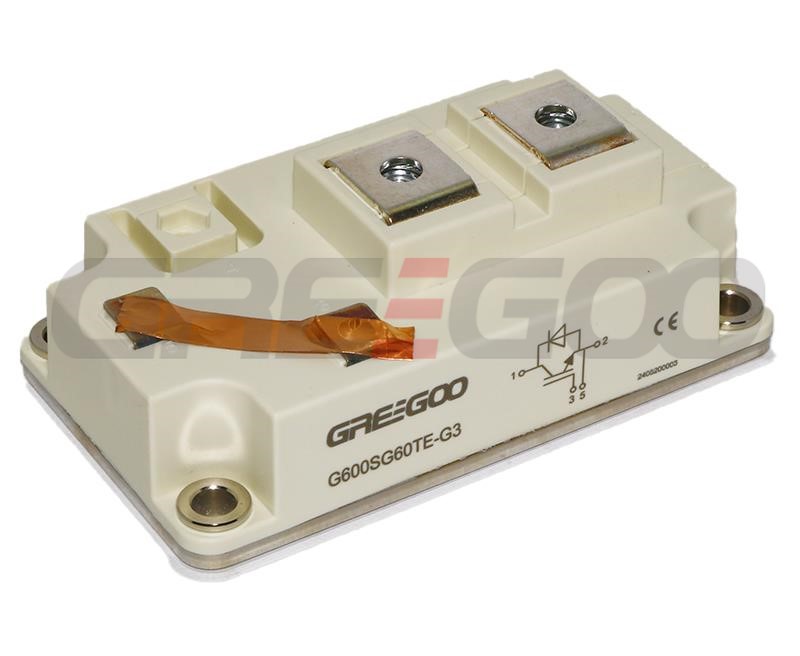

| G600SG60TE | 600 | 600 | 1.7 | 32.5 | 0.25 | G3 |
| G800SG60TE | 600 | 800 | 1.7 | 38 | 0.25 | G3 |
| G600SG60TK | 600 | 600 | 1.9 | 25 | 0.1 | G3 |
| G800SG60TK | 600 | 800 | 1.9 | 32.9 | 0.08 | G3 |
| G200SG170S | 1700 | 200 | 2.3 | 155 | 0.08 | G3 |
| G300SG170S | 1700 | 300 | 2.3 | 225 | 0.06 | G3 |
| G400SG170S | 1700 | 400 | 2.3 | 205 | 0.06 | G3 |
| G600SG170S | 1700 | 600 | 2.3 | 245 | 0.04 | G3 |
