GDZ08 DC load solid state relay
Home Products DC Load Solid State RelayDC output solid state relayGDZ08 DC load solid state relay
Product Details

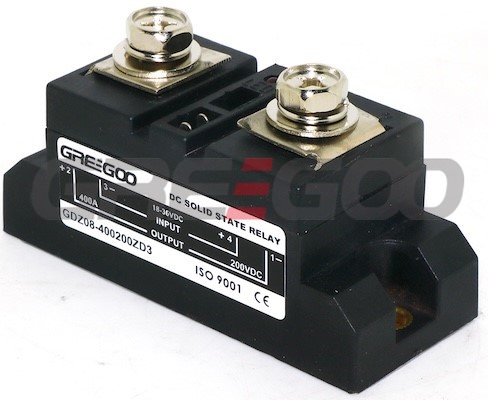

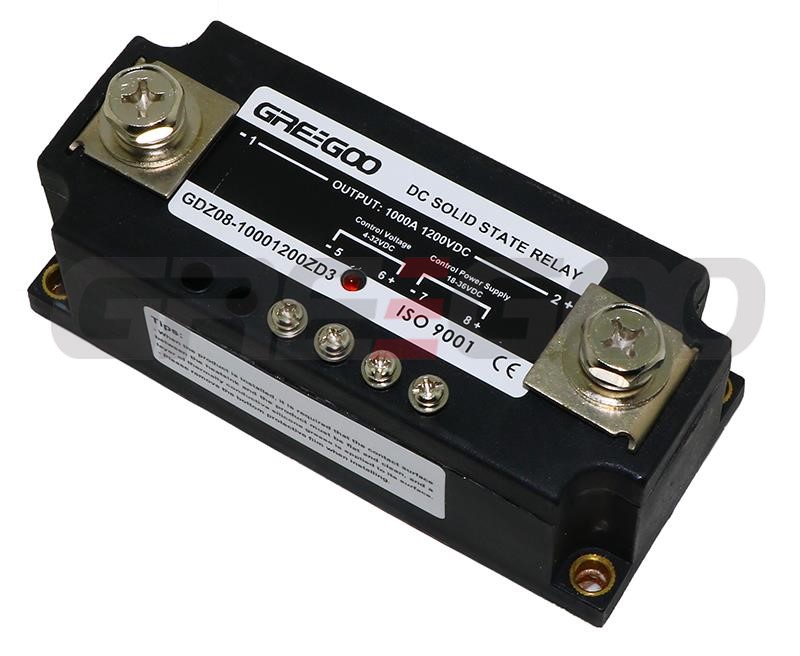

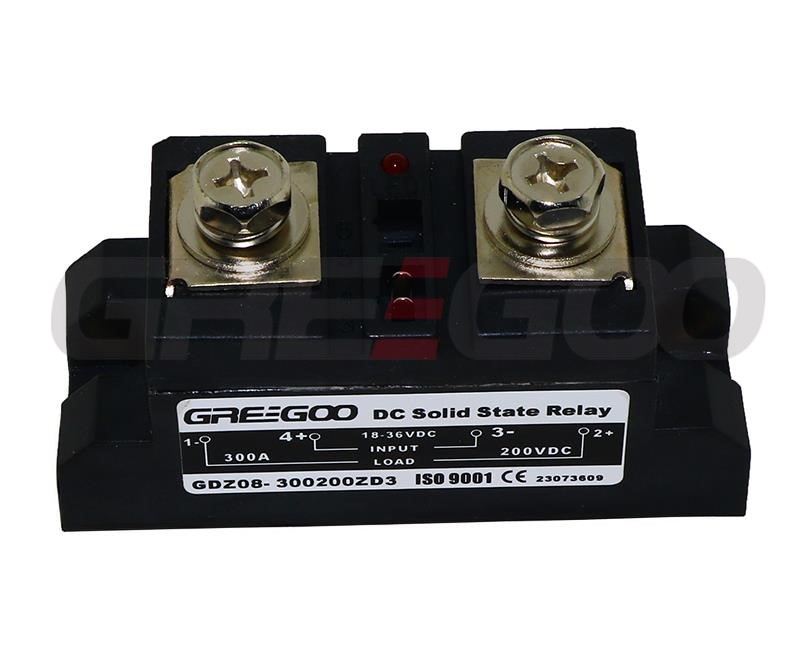

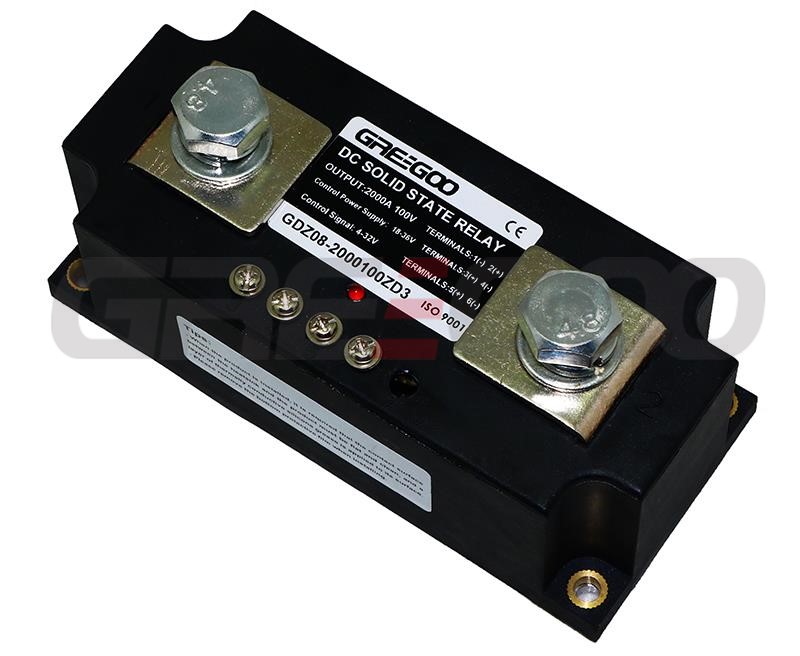

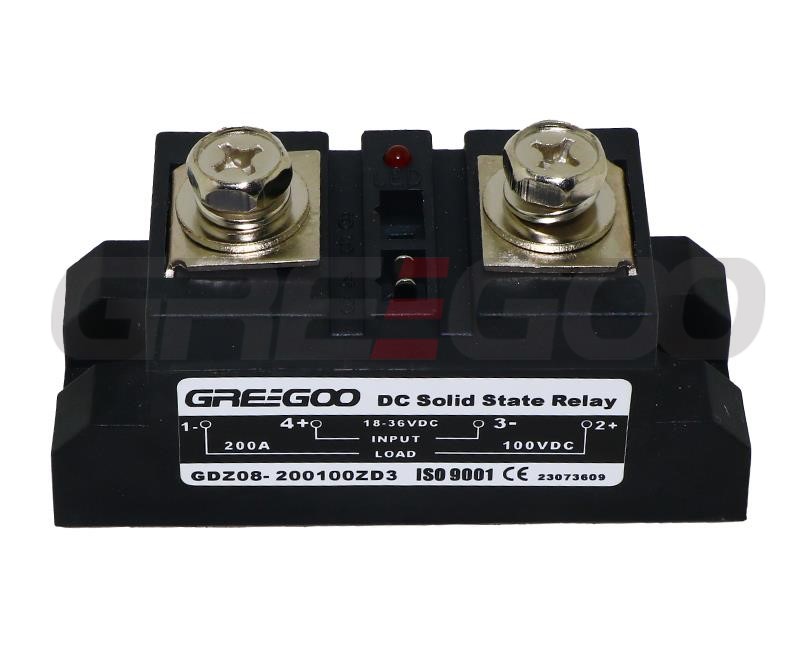

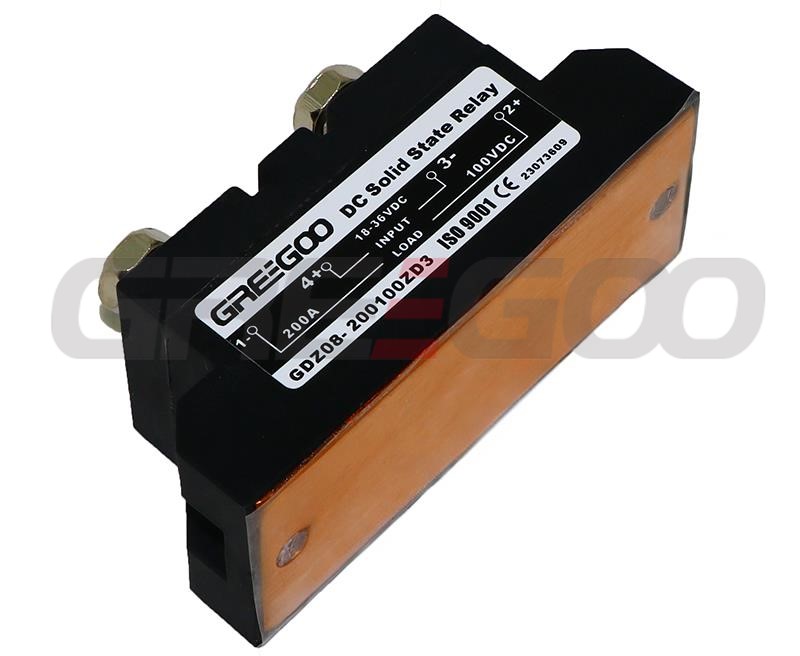

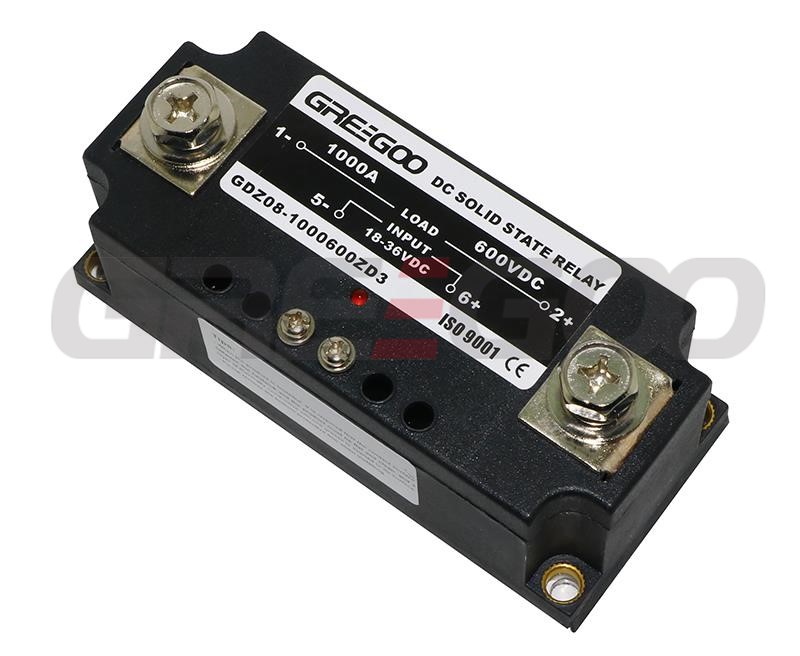

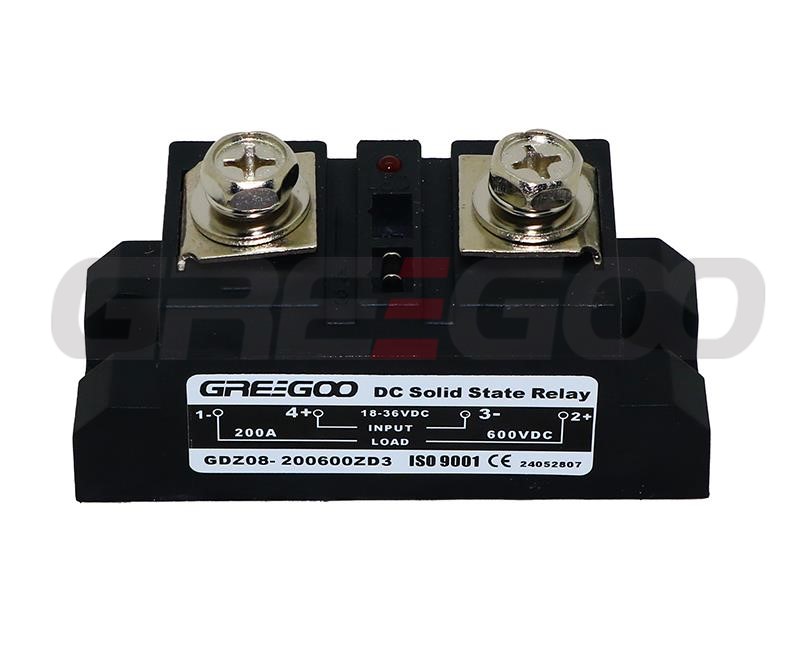

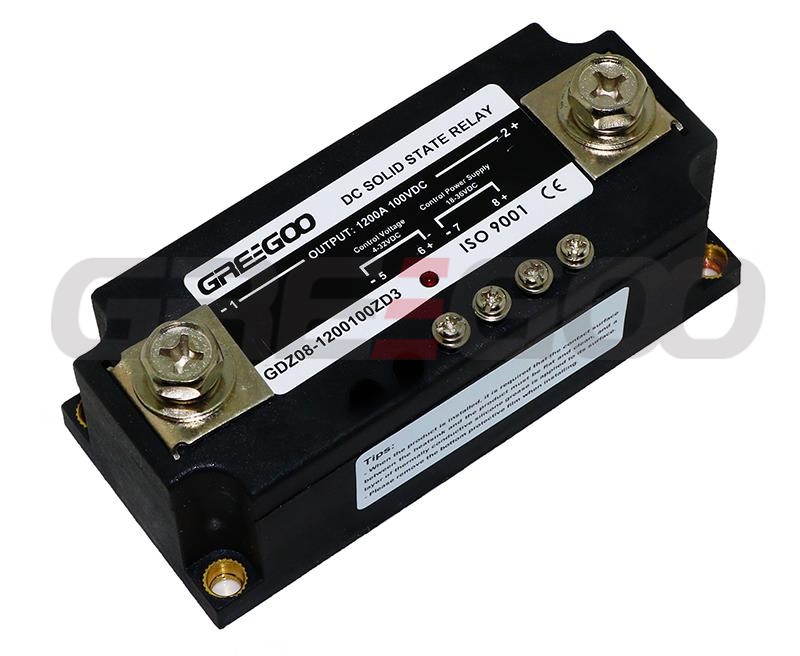

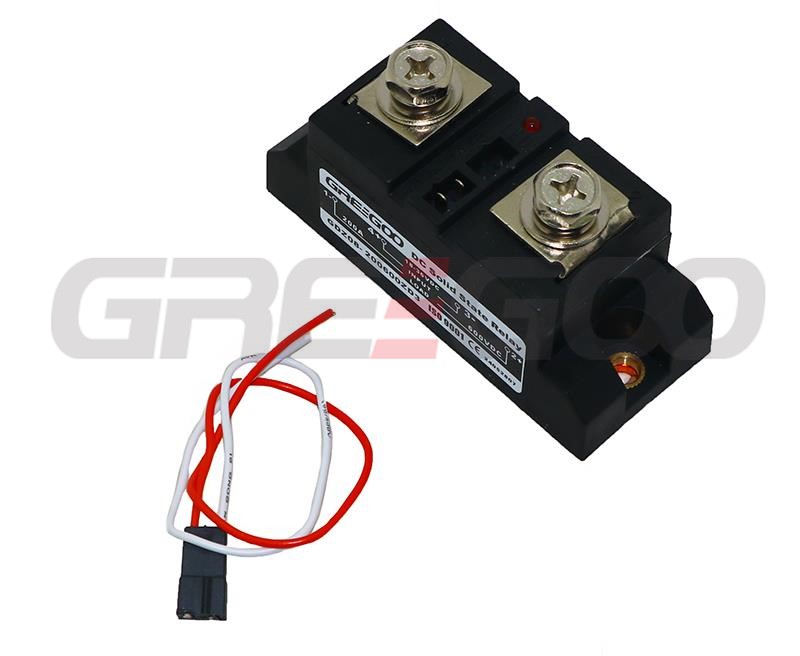

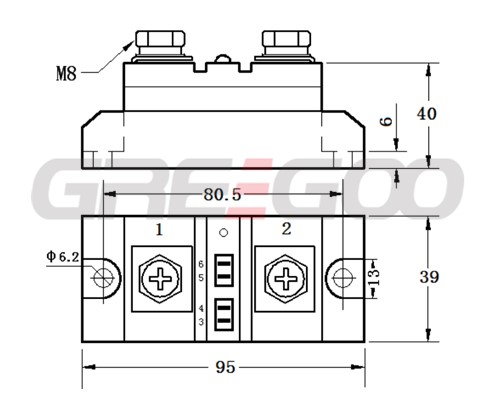

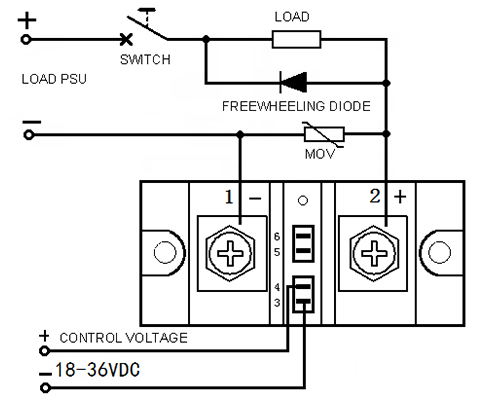

GDZ08 DC load solid state relay
- Electromagnetic optocoupler isolation between input and output circuits.
- Control signal compatible with PLC, TTL, PWM logic interfaces.
- LED indicator for working status.
- Built-in input under-voltage protection and output transient over-voltage absorption protection.
- Solid-state, contactless output with fast switching speed, no sparks or arcing.
- Encapsulated in epoxy resin, providing corrosion and shock resistance, ensuring stable and reliable switch operation.
- The product is mainly used for controlling high-power DC power supply equipment such as PTC DC heaters, new energy conversion, battery charging and discharging, capacitors, etc.
GDZ08 specification
| Model | GDZ08 |
|---|---|
| Control Voltage | 12-15VDC; 18-36VDC |
| Control Current | 30-80mA; 25-70mA |
| Under-voltage Protection | 12V control power supply <10VDC self-lock; 18V control power supply <16VDC self-lock |
| Operating Indicator | LED |
| Maximum Voltage | 100VDC; 200VDC; 600VDC; 1200VDC |
| Maximum Current | 120, 150, 180, 200, 300, 400A, 500A. |
| On-State Voltage Drop | ≤1.0 – 2.5 V |
| Off-State Voltage | 100V; 200V; 600V; 1200V |
| Transient Voltage Suppression | 80V; 180V; 480V; 1000V |
| Overcurrent Protection | None; L: Output current 50%; Z: Output current 100% |
| Switching Time | ≤0.16mS (120A-200A); ≤0.2mS (300A-500A) |
| Switching Characteristics | MOS or IGBT - Solid-state contactless switch characteristics |
| Isolation Voltage | ≥1800-2500 V |
| Insulation Voltage | ≥2000-2500 V |
| Operating Temperature | -25 to 75 ℃ |
| Heat Dissipation Condition | Heat sink with additional fan cooling |
| Load Current Safety Factor | Resistive load: 2.5-4x; Inductive load: 3-6x |
GDZ08C specification
| Model | GDZ08C |
|---|---|
| Control Power Supply | 12-15VDC-2W or 18-36VDC-2W |
| Control Signal | 4-32VDC switch signal or PWM pulse width modulation signal |
| Control Current | 8-20mA |
| Operating Indicator | LED |
| Maximum Voltage | 100, 200, 600, 1200VDC |
| Maximum Current | 120, 150, 200, 300, 400, 500A. |
| On-State Voltage Drop | 0.5-2.5 VDC |
| Off-State Voltage | 100VDC, 200VDC, 600VDC, 1200VDC |
| Transient Voltage Protection | 80V, 180V, 480V, 1000V |
| Protection Current | None; L: Output current 50%; Z: Output current 100% |
| Switching Time | ≤0.08mS (120A-200A); ≤0.1mS (300A-500A) |
| Switching Characteristics | MOS or IGBT |
| Isolation Voltage | ≥1800-2500 V |
| Insulation Voltage | ≥2000-2500 V |
| Operating Temperature | -25 to 75 ℃ |
| Heat Dissipation Condition | Heat sink required for ≥60A, fan cooling for ≥80A |
| Load Current Safety Factor | Resistive load: 2-4x; Inductive load: 4-8x |
