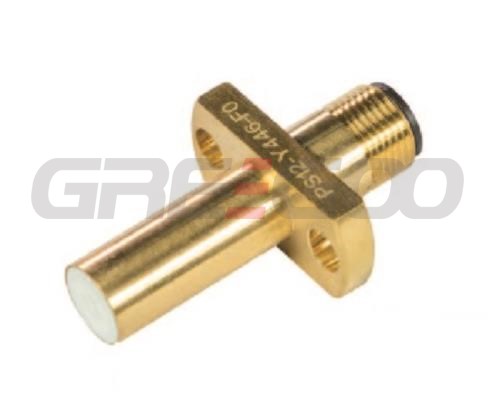

High Speed Inductive Sensor
|
Model |
PS12-Y446-F0 |
|
Sensing distance |
4mm |
|
Response frequency |
2kHZ |
|
Voltage |
10-30V DC |
|
Current |
35mA |
|
Output |
PNP |
|
Output state |
NO |
|
Connecting type |
4 poles socket |
|
Housing |
Brass |
|
Operating Temperature |
0℃-75℃ |
|
Humidity |
Up to 85% |
Need more information?
Contact us to request pricing, availability and customization options.
