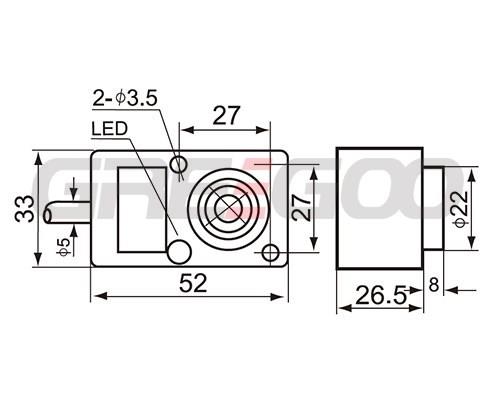

Inductive proximity sensor LMF12
Model NO. | Detection distance | Working voltage | Output | Flush | |
Form | State | ||||
LMF12-3008NA | 8mm | DC6-36V | NPN | NO | Non-flush |
LMF12-3008NB | 8mm | DC6-36V | NPN | NC | Non-flush |
LMF12-3008NC | 8mm | DC6-36V | NPN | NO NC | Non-flush |
LMF12-3008PA | 8mm | DC6-36V | PNP | NO | Non-flush |
LMF12-3008PB | 8mm | DC6-36V | PNP | NC | Non-flush |
LMF12-3008PC | 8mm | DC6-36V | PNP | NO NC | Non-flush |
LMF12-3008LA | 8mm | DC6-36V | Two wire system | NO | Non-flush |
LMF12 -3008LB | 8mm | DC6-36V | Two wire system | NC | Non-flush |
LMF12 -2008A | 8mm | AC90-250V | SCR control lable silicon | NO | Non-flush |
LMF12-2008B | 8mm | AC90-250V | SCR control lable silicon | NC | Non-flush |
