Inductive proximity switch LMF45
Home Products Proximity Photoelectric SensorInductive proximity sensor (Rectangular type)Inductive proximity switch LMF45
Product Details

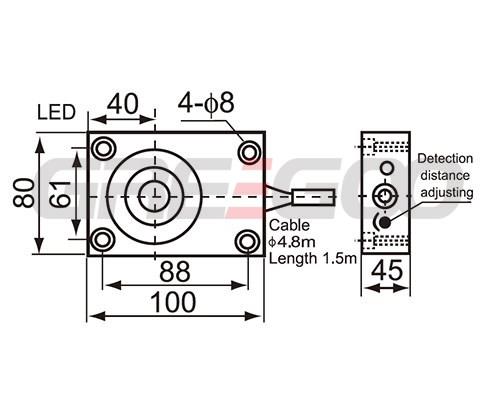

Inductive proximity switch LMF45
| Model NO. | Detection distance | Working voltage | Output | Response frequency | Flush | |
| Form | State | |||||
| LMF45-3050NA | 0 -50mm | DC6-36V | NPN | NO | 200Hz | Non-flush |
| LMF45-3050NB | 0 -50mm | DC6-36V | NPN | NC | 200Hz | Non-flush |
| LMF45-3050NC | 0 -50mm | DC6-36V | NPN | NO NC | 200Hz | Non-flush |
| LMF45-3050PA | 0 -50mm | DC6-36V | PNP | NO | 200Hz | Non-flush |
| LMF45-3050PB | 0 -50mm | DC6-36V | PNP | NC | 200Hz | Non-flush |
| LMF45-3050PC | 0 -50mm | DC6-36V | PNP | NO NC | 200Hz | Non-flush |
| LMF45-3050LA | 0 -50mm | DC6-36V | Two wire system | NO | 200Hz | Non-flush |
| LMF45 -3050LB | 0 -50mm | DC6-36V | Two wire system | NC | 200Hz | Non-flush |
| LMF45 -2050A | 0 -50mm | AC90-250V | SCR Control label silicon | NO | 5Hz | Non-flush |
| LMF45-2050B | 0 -50mm | AC90-250V | SCR Control label silicon | NC | 5Hz | Non-flush |
