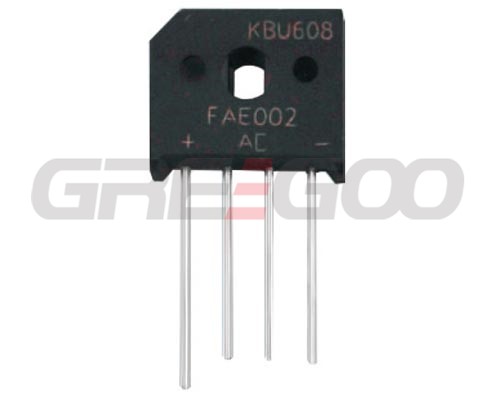

KBU Series Bridge Rectifier
|
TYPE |
Repetitive Peak Reverse Voltage |
Maximum
Average Rectified
Current
|
Maximum
Forward Peak
Surge Current
|
Maximum
Forward Voltage
|
Maximum Reverse Current |
Junction
Temperature
|
Insulating Voltage |
|||
|
VRRN |
IF(AV)@Tc |
IFSM |
VF @IF |
RRM @TA |
TJM |
VISO |
||||
|
(V) |
(A) |
(℃) |
(A) |
(V) |
(A) |
25℃(μA) |
125℃(uA) |
(℃) |
(V) |
|
|
KBU606 |
600 |
6 |
85 |
160 |
1.0 |
3 |
5 |
500 |
150 |
2500 |
|
KBU608 |
800 |
6 |
85 |
160 |
1.0 |
3 |
5 |
500 |
150 |
2500 |
|
KBU610 |
1000 |
6 |
85 |
160 |
1.0 |
3 |
5 |
500 |
150 |
2500 |
|
KBU806 |
600 |
8 |
85 |
160 |
1.0 |
3 |
5 |
500 |
150 |
2500 |
|
KBU808 |
800 |
8 |
85 |
160 |
1.0 |
3 |
5 |
500 |
150 |
2500 |
|
KBU810 |
1000 |
8 |
85 |
160 |
1.0 |
3 |
5 |
500 |
150 |
2500 |
|
KBU1006 |
600 |
10 |
85 |
160 |
1.0 |
3 |
5 |
500 |
150 |
2500 |
|
KBU1008 |
800 |
10 |
85 |
160 |
1.0 |
3 |
5 |
500 |
150 |
2500 |
|
KBU1010 |
1000 |
10 |
85 |
160 |
1.0 |
3 |
5 |
500 |
150 |
2500 |
