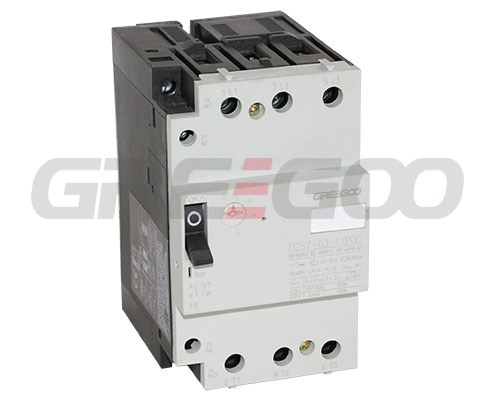

Motor Protection Circuit Breaker (E3VU)
Standard power ratings of 3-phase motors 50/60Hz in category AC-3 (kW) | Setting range of thermal trips (A) | Norminal breaking capacity (A) | Thermal current Ie in (A) | Reference |
0.1-0.16 | 1.9 | 0.16 | E3VU13-XB00 | |
0.06 | 0.16-0.24 | 2.9 | 0.24 | E3VU13-XC00 |
0.09/0.12 | 0.24-0.4 | 4.8 | 0.4 | E3VU13-XD00 |
0.12/0.18 | 0.4-0.6 | 7.2 | 0.6 | E3VU13-XE00 |
0.25 | 0.6-1 | 12 | 1 | E3VU13-XF00 |
0.37/0.55 | 1-1.6 | 19 | 1.6 | E3VU13-XG00 |
0.75 | 1.6-2.4 | 29 | 2.4 | E3VU13-XH00 |
1.1 | 2-3.2 | 38 | 3.2 | E3VU13-NH00 |
1.1/1.5 | 2.4-4 | 48 | 4 | E3VU13-XJ00 |
1.5/2.2 | 3.2-5 | 60 | 5 | E3VU13-NJ00 |
2.2 | 4-6 | 72 | 6 | E3VU13-XK00 |
3 | 5-8 | 96 | 8 | E3VU13-NK00 |
6-10 | 120 | 10 | E3VU13-XL00 | |
4/5.5 | 8-13 | 156 | 13 | E3VU13-NL00 |
7.5 | 10-16 | 190 | 16 | E3VU13-XM00 |
7.5 | 14-20 | 240 | 20 | E3VU13-XN00 |
11 | 18-25 | 300 | 25 | E3VU13-XP00 |
0.37/0.55 | 1-1.6 | 19 | 1.6 | E3VU16-XG00 |
0.75 | 1.6-2.4 | 29 | 2.4 | E3VU16-XH00 |
1.1/1.5 | 2.4-4 | 48 | 4 | E3VU16-XJ00 |
2.2 | 4-6 | 72 | 6 | E3VU16-XK00 |
3/4 | 6-10 | 120 | 10 | E3VU16-XL00 |
5.5/7.5 | 10-16 | 190 | 16 | E3VU16-XM00 |
11 | 16-25 | 300 | 25 | E3VU16-XN00 |
15 | 22-32 | 380 | 32 | E3VU16-XP00 |
18.5 | 28-40 | 480 | 40 | E3VU16-XQ00 |
22 | 36-52 | 600 | 52 | E3VU16-XR00 |
45-63 | 600 | 63 | E3VU16-KS00 |
