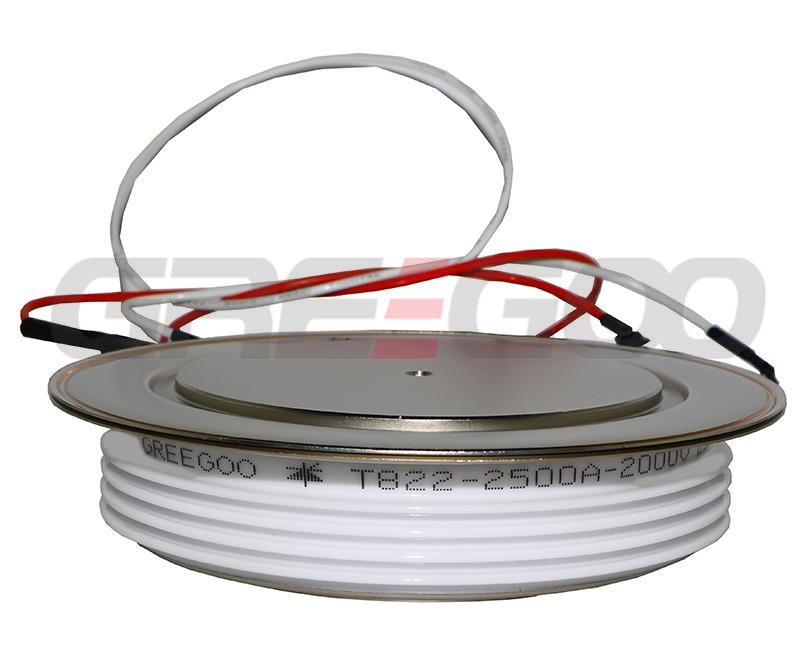

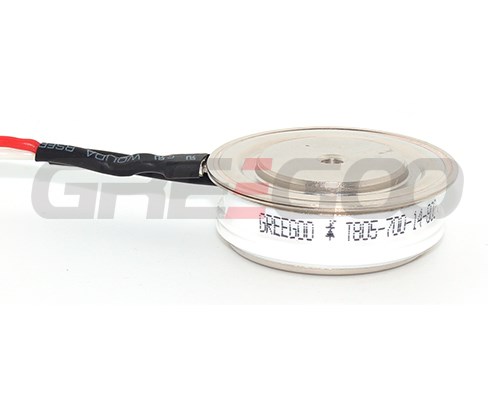

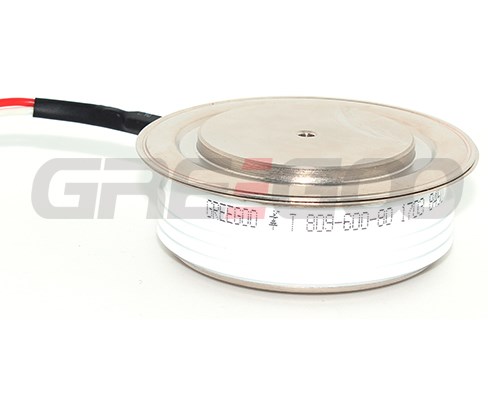

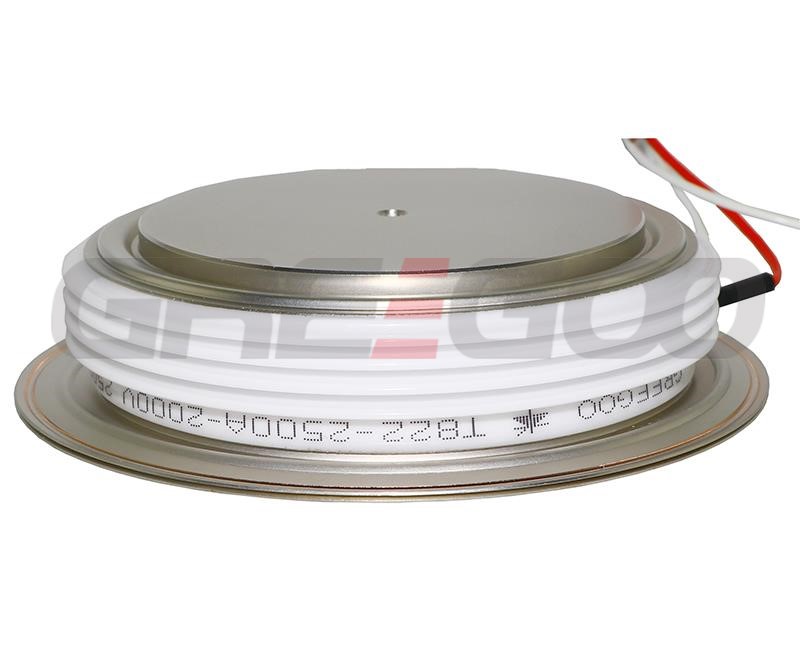

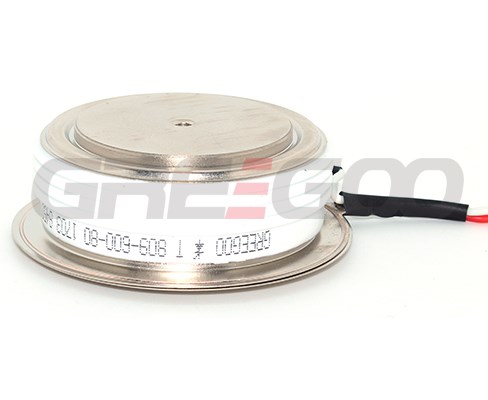

Phase Control Thyristors (Alloying Type)

Phase Control Thyristors (Alloying Type)

Features
- Double-side cooling
- High mean current
- High surge current

Typical applications
- High power drive
- High voltage supplies
- Motor control


Type=
VRRM/100
IT(AV)@
Tc=70oC
VDRM VRRM ITSM@
TVJM
&10ms
VTM@ITM
&TC=25oC
VTO@
TVJM
rT@
TVJM
TVJM RthJC RthCH F±10% Outline
A V kA A V V oC K/W K/W kN
UP to 1400V
T806-400 400 600-1400 6.3 600 1.4 0.85 0.64 125 0.08 0.02 5 19/42/13
T805-700 700 600-1400 9.1 1500 1.75 0.95 0.53 125 0.041 0.01 5 25/42/14
T807-800 850 600-1400 12.8 1500 1.6 0.87 0.382 125 0.035 0.01 10 29/47/14
T808-900 900 600-1400 15 1500 1.35 0.85 0.33 125 0.035 0.008 15 34/58/26
T809-1700 1700 600-1400 26 1500 1.2 0.86 0.16 125 0.02 0.005 22 47/75/26
T804-1800 1850 600-1400 29 3000 1.4 0.84 0.13 125 0.018 0.005 30 53/85/26
T811-2600 2640 600-1400 47 3000 1.3 0.87 0.098 125 0.0125 0.004 45 63/100/26
T822-3300 3310 600-1400 60 3000 1.15 0.83 0.092 125 0.01 0.003 56 73/110/26
UP to 1800V
T806-300 320 1200-1800 5 600 1.8 0.93 1.15 125 0.08 0.02 5 19/42/13
T805-600 640 1200-1800 8.3 1500 1.9 1.09 0.587 125 0.041 0.01 5 25/42/14
T807-700 770 1200-1800 11.5 1500 1.8 0.9 0.5 125 0.035 0.01 10 29/47/14
T808-800 850 1200-1800 14 1500 1.6 0.91 0.36 125 0.035 0.008 15 34/58/26
T809-1500 1520 1200-1800 25 1500 1.35 0.88 0.2 125 0.02 0.005 22 47/75/26
T804-1700 1710 1200-1800 28 3000 1.5 0.88 0.16 125 0.018 0.005 30 53/85/26

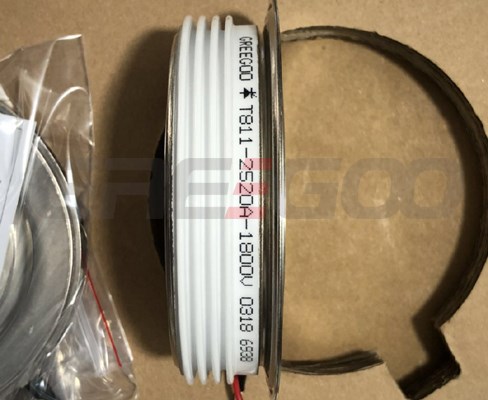

T811-2500 2520 1200-1800 45 3000 1.45 0.91 0.12 125 0.0125 0.004 45 63/100/26
T822-3000 3030 1200-1800 60 3000 1.35 0.9 0.11 125 0.01 0.003 56 73/110/26
UP to 2600V
T805-500 510 2000-2400 7.8 1500 2.4 0.94 1.036 125 0.041 0.01 5 25/42/14
T807-600 670 2000-2400 10 1500 2.15 0.92 0.72 125 0.035 0.01 10 29/47/14
T804-1400 1470 2000-2400 23 3000 1.8 0.96 0.23 125 0.018 0.005 30 53/85/26
T811-2100 2110 2000-2400 35 3000 1.65 0.96 0.179 125 0.0125 0.004 45 63/100/26
T822-2700 2730 2000-2400 45 3000 1.45 0.9 0.137 125 0.01 0.003 56 73/110/26
T808-750 750 2000-2600 11 1500 1.85 0.95 0.5 125 0.035 0.008 15 34/58/26
T809-1400 1400 2000-2600 24 1500 1.5 0.89 0.27 125 0.02 0.005 22 47/75/26
UP to 3400V
T811-1800 1850 2400-2800 30 3000 1.9 1.02 0.25 125 0.0125 0.004 45 63/100/26
T822-2400 2470 2400-2800 43 3000 1.65 0.98 0.17 125 0.01 0.003 56 73/110/26
T808-700 700 2400-3000 10.5 1500 1.9 1 0.6 125 0.035 0.008 15 34/58/26
T809-1300 1300 2400-3000 23 1500 1.55 0.95 0.3 125 0.02 0.005 22 47/75/26
T805-400 410 2400-3400 6.3 1500 2.8 1.04 1.725 125 0.041 0.01 5 25/42/14
T807-500 530 2400-3400 8 1500 2.65 0.98 1.2 125 0.035 0.01 10 29/47/14
T808-500 580 2800-3400 8.4 1500 2.4 1.03 0.97 125 0.035 0.008 15 34/58/26
T809-1000 1010 2800-3400 17 1500 2.05 1.08 0.56 125 0.02 0.005 22 47/75/26
T804-1200 1240 2400-3400 19.2 3000 2.25 1.06 0.35 125 0.018 0.005 30 53/85/26
T811-1700 1770 2800-3400 30 3000 2.1 1.05 0.298 125 0.0125 0.004 45 63/100/26
T822-2100 2190 2800-3400 33 3000 1.85 1 0.235 125 0.01 0.003 56 73/110/26
UP to 5200V
T808-400 480 3600-4200 7 1000 2.85 1.15 1.47 125 0.035 0.008 15 34/58/26
T809-800 870 3600-4200 15 1500 2.5 1.15 0.799 125 0.02 0.005 22 47/75/26
T804-900 960 3600-4200 14.7 3000 2.8 1.15 0.68 125 0.018 0.005 30 53/85/26
T811-1400 1440 3600-4200 25 3000 2.45 1.15 0.452 125 0.0125 0.004 45 63/100/26
T822-1800 1880 3600-4200 25 3000 2.2 1.14 0.36 125 0.01 0.003 56 73/110/26
T822-1400 1470 4600-5200 23.5 3000 2.8 1.18 0.525 125 0.01 0.003 56 73/110/26
