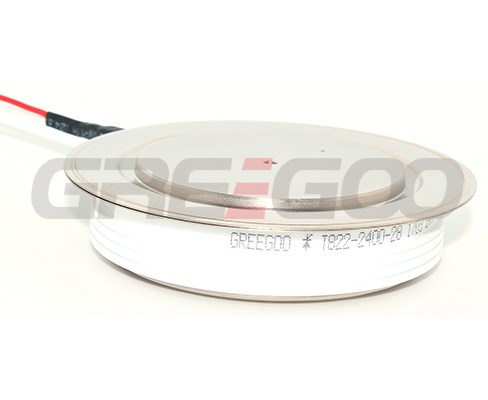

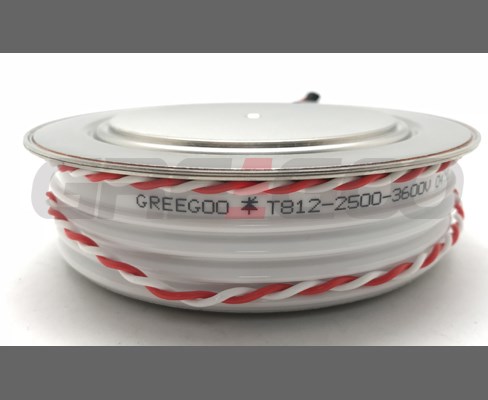

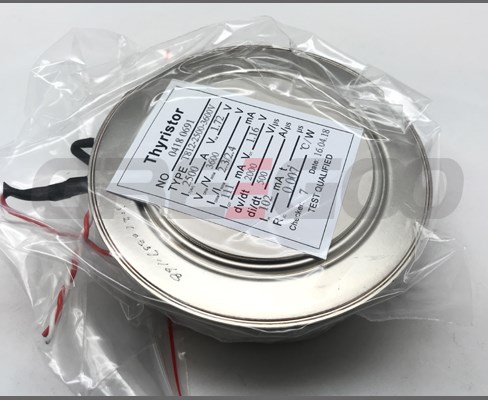

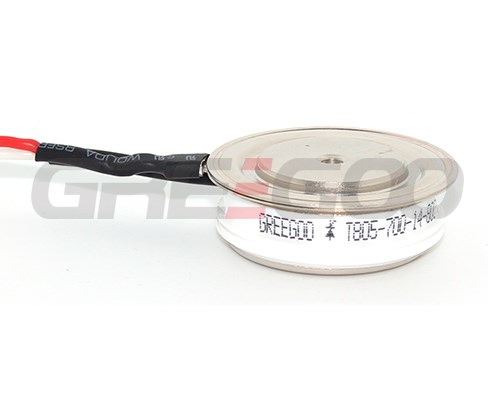

Phase Control Thyristors (Free Floating Type)
Features
- Double-side cooling
- High mean current
- High surge current
Applications
- High power drive
- High voltage supplies
- Motor control
Type= VRRM/100 |
IF(AV) | VDSM VRSM | VDRM VRRM | ITSM@ TVJM &10ms |
VTM@ITM &TC=TVJM |
VTO@ TVJM |
rT@ TVJM |
TVJM | RthJC | RthCH | F±10% | Outline | ||
@Tc | ||||||||||||||
A | oC | V | V | kA | A | V | V | mΩ | oC | K/W | K/W | kN | ||
UP to 2200V | ||||||||||||||
T816-6000 | 6020 | 70 | 1400-1800 | 1400-1800 | 94 | 3000 | 1 | 0.83 | 0.056 | 125 | 0.005 | 0.002 | 90 | 100/150/26 |
T812-3900 | 3920 | 70 | 1800-2200 | 1800-2200 | 64.5 | 3000 | 1.15 | 0.86 | 0.095 | 125 | 0.007 | 0.002 | 70 | 84/120/26 |
T816-5200 | 5270 | 70 | 1800-2200 | 1800-2200 | 80 | 3000 | 1.05 | 0.87 | 0.061 | 125 | 0.0057 | 0.002 | 90 | 100/150/35 |
T816-5700 | 5750 | 70 | 1800-2200 | 1800-2200 | 80 | 3000 | 1.05 | 0.87 | 0.061 | 125 | 0.005 | 0.002 | 90 | 100/150/26 |
UP to 2800V | ||||||||||||||
T812-3300 | 3300 | 70 | 2200-2800 | 2200-2800 | 60 | 3000 | 1.4 | 0.95 | 0.15 | 125 | 0.007 | 0.002 | 70 | 84/120/26 |
T816-4700 | 4760 | 70 | 2200-2800 | 2200-2800 | 75 | 3000 | 1.14 | 0.9 | 0.08 | 125 | 0.0057 | 0.002 | 90 | 100/150/35 |
T816-5100 | 5190 | 70 | 2200-2800 | 2200-2800 | 75 | 3000 | 1.14 | 0.9 | 0.08 | 125 | 0.005 | 0.002 | 90 | 100/150/26 |
T814-6800 | 6810 | 70 | 2200-2600 | 2200-2600 | 105 | 3000 | 1.04 | 0.88 | 0.052 | 125 | 0.004 | 0.001 | 120 | 110/172/35 |
UP to 3400V | ||||||||||||||
T812-3200 | 3270 | 70 | 2800-3400 | 2800-3400 | 54 | 3000 | 1.41 | 0.95 | 0.153 | 125 | 0.007 | 0.002 | 70 | 84/120/26 |
T816-4200 | 4240 | 70 | 2800-3400 | 2800-3400 | 69 | 3000 | 1.21 | 0.86 | 0.115 | 125 | 0.0057 | 0.002 | 90 | 100/150/35 |
T816-4600 | 4610 | 70 | 2800-3400 | 2800-3400 | 69 | 3000 | 1.21 | 0.86 | 0.115 | 125 | 0.005 | 0.002 | 90 | 100/150/26 |
T814-6300 | 6330 | 70 | 2600-3200 | 2600-3200 | 100 | 3000 | 1.09 | 0.88 | 0.07 | 125 | 0.004 | 0.001 | 120 | 110/172/35 |
UP to 4200V | ||||||||||||||
T808-500 | 500 | 70 | 3600-4200 | 3600-4200 | 6.4 | 1000 | 2.5 | 1.05 | 1.45 | 125 | 0.035 | 0.008 | 15 | 34/58/26 |
T809-1000 | 1090 | 70 | 3600-4200 | 3600-4200 | 15 | 1000 | 1.65 | 1.05 | 0.6 | 125 | 0.017 | 0.005 | 22 | 47/75/26 |
T822-1900 | 1910 | 70 | 3600-4200 | 3600-4200 | 32 | 1500 | 1.41 | 0.96 | 0.3 | 125 | 0.011 | 0.003 | 50 | 63/102/35 |
T822-2000 | 2030 | 70 | 3600-4200 | 3600-4200 | 32 | 1500 | 1.41 | 0.96 | 0.3 | 125 | 0.01 | 0.003 | 50 | 63/102/26 |
T812-3000 | 3000 | 70 | 3600-4200 | 3600-4200 | 52 | 3000 | 1.55 | 0.95 | 0.2 | 125 | 0.007 | 0.002 | 70 | 84/120/26 |
T816-3900 | 3970 | 70 | 3600-4200 | 3600-4200 | 60 | 3000 | 1.35 | 0.97 | 0.126 | 125 | 0.0057 | 0.002 | 90 | 100/150/35 |
T816-4300 | 4320 | 70 | 3600-4200 | 3600-4200 | 60 | 3000 | 1.35 | 0.97 | 0.126 | 125 | 0.005 | 0.002 | 90 | 100/150/26 |
T814-5200 | 5250 | 70 | 3600-4200 | 3600-4200 | 97.5 | 3000 | 1.24 | 0.9 | 0.114 | 125 | 0.004 | 0.001 | 120 | 110/172/35 |
UP to 5200V | ||||||||||||||
T808-400 | 400 | 70 | 4600-5200 | 4200-4600 | 5 | 1000 | 2.8 | 1.1 | 1.7 | 125 | 0.045 | 0.008 | 15 | 34/58/35 |
T809-800 | 830 | 70 | 4600-5200 | 4200-4600 | 12.4 | 1000 | 1.9 | 1.12 | 0.78 | 125 | 0.022 | 0.005 | 22 | 47/75/35 |
T811-1300 | 1300 | 70 | 4600-5200 | 4200-4600 | 20 | 1500 | 1.73 | 1.1 | 0.42 | 125 | 0.015 | 0.004 | 40 | 63/100/35 |
T822-1800 | 1840 | 70 | 4600-5200 | 4200-4600 | 29 | 1500 | 1.5 | 1.03 | 0.315 | 125 | 0.011 | 0.003 | 50 | 63/102/35 |
T812-2300 | 2360 | 70 | 4600-5200 | 4200-4600 | 42 | 3000 | 1.7 | 1.01 | 0.23 | 125 | 0.009 | 0.002 | 70 | 78/120/35 |
T812-2700 | 2770 | 70 | 4600-5200 | 4200-4600 | 42 | 3000 | 1.7 | 1.01 | 0.23 | 125 | 0.007 | 0.002 | 70 | 84/120/26 |
T816-3400 | 3460 | 70 | 4600-5200 | 4200-4600 | 55 | 3000 | 1.54 | 1 | 0.18 | 125 | 0.0057 | 0.002 | 90 | 100/150/35 |
T814-5000 | 5000 | 70 | 4600-5200 | 4200-4600 | 85.2 | 3000 | 1.38 | 1 | 0.125 | 125 | 0.004 | 0.001 | 120 | 110/172/35 |
UP to 6500V | ||||||||||||||
T808-300 | 350 | 70 | 5400-6500 | 4500-5600 | 4.5 | 1000 | 3.5 | 1.2 | 2.3 | 125 | 0.045 | 0.008 | 15 | 34/58/35 |
T808-400 | 420 | 70 | 5400-6500 | 4500-5600 | 4.5 | 1000 | 3.5 | 1.2 | 2.3 | 125 | 0.035 | 0.008 | 15 | 34/58/26 |
T809-700 | 730 | 70 | 5400-6500 | 4500-5600 | 11.8 | 1000 | 2.25 | 1.2 | 1.05 | 125 | 0.022 | 0.005 | 22 | 47/75/35 |
T809-800 | 850 | 70 | 5400-6500 | 4500-5600 | 11.8 | 1000 | 2.25 | 1.2 | 1.05 | 125 | 0.017 | 0.005 | 22 | 47/75/26 |
T811-1000 | 1010 | 70 | 5400-6500 | 4500-5600 | 14 | 1500 | 2.37 | 1.2 | 0.78 | 125 | 0.015 | 0.004 | 40 | 63/100/35 |
T811-1100 | 1140 | 70 | 5400-6500 | 4500-5600 | 14 | 1500 | 2.37 | 1.2 | 0.78 | 125 | 0.013 | 0.004 | 40 | 63/100/26 |
T822-1300 | 1360 | 70 | 5400-6500 | 4500-5600 | 21.9 | 1500 | 2.12 | 1.15 | 0.645 | 125 | 0.011 | 0.003 | 50 | 63/102/35 |
T822-1400 | 1450 | 70 | 5400-6500 | 4500-5600 | 21.9 | 1500 | 2.12 | 1.15 | 0.645 | 125 | 0.01 | 0.003 | 50 | 63/102/26 |
T812-1800 | 1800 | 70 | 5400-6500 | 4500-5600 | 32 | 3000 | 2.49 | 1.25 | 0.412 | 125 | 0.009 | 0.002 | 70 | 78/120/35 |
T812-2100 | 2100 | 70 | 5400-6500 | 4500-5600 | 32 | 3000 | 2.49 | 1.25 | 0.412 | 125 | 0.007 | 0.002 | 70 | 78/120/26 |
T816-2800 | 2800 | 70 | 5400-6500 | 4500-5600 | 45 | 3000 | 2 | 1.18 | 0.274 | 125 | 0.0057 | 0.002 | 90 | 100/150/35 |
T816-3000 | 3070 | 70 | 5400-6500 | 4500-5600 | 45 | 3000 | 2 | 1.18 | 0.274 | 125 | 0.005 | 0.002 | 90 | 100/150/26 |
T814-4200 | 4250 | 70 | 5400-6500 | 4500-5600 | 71.4 | 3000 | 1.69 | 1.13 | 0.185 | 125 | 0.004 | 0.001 | 120 | 110/172/35 |
UP to 8000V | ||||||||||||||
T812-1600 | 1600 | 70 | 6800-7200 | 6300-6800 | 32 | 3000 | 2.5 | 1.25 | 0.42 | 125 | 0.009 | 0.002 | 70 | 78/120/35 |
T808-300 | 300 | 70 | 7500-8000 | 7000-7500 | 4 | 500 | 2.9 | 1.45 | 2.9 | 125 | 0.045 | 0.008 | 15 | 34/58/35 |

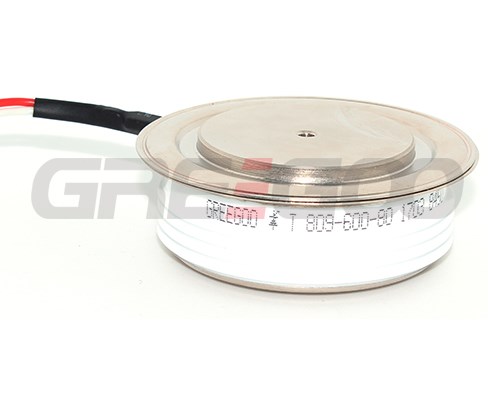

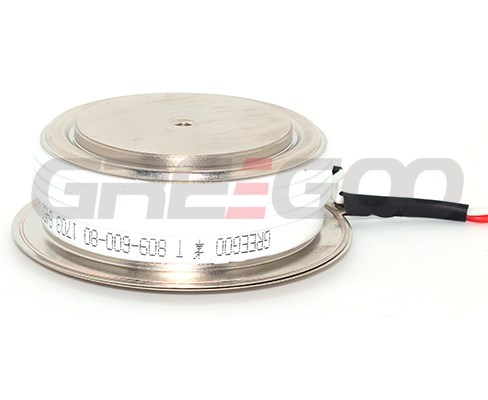

T809-600 | 600 | 70 | 7500-8000 | 7000-7500 | 12.1 | 1000 | 2.9 | 1.35 | 1.55 | 125 | 0.022 | 0.005 | 22 | 47/75/35 |
T816-1900 | 1980 | 70 | 7500-8000 | 7000-7500 | 55 | 3000 | 2.55 | 1.25 | 0.435 | 110 | 0.0057 | 0.002 | 90 | 100/150/35 |
UP to 8500V | ||||||||||||||
T808-300 | 300 | 70 | 8000-8500 | 7500-8000 | 4 | 500 | 2.95 | 1.47 | 2.95 | 125 | 0.045 | 0.008 | 15 | 34/58/35 |
T809-500 | 540 | 70 | 8000-8500 | 7500-8000 | 12.1 | 1000 | 2.9 | 1.35 | 1.55 | 115 | 0.022 | 0.005 | 22 | 47/75/35 |
T816-1900 | 1900 | 70 | 8000-8500 | 7500-8000 | 35 | 3000 | 2.88 | 1.32 | 0.52 | 115 | 0.0057 | 0.002 | 90 | 100/150/35 |
T814-2400 | 2400 | 70 | 8000-8500 | 7500-8000 | 40 | 3000 | 2.5 | 1.3 | 0.4 | 90 | 0.004 | 0.001 | 120 | 110/172/35 |
Dimension = Contact OD/Flange OD/Height(mm)
