Product Details

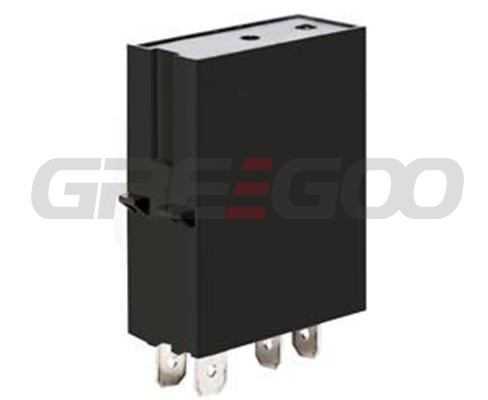

Plug in DC load Solid State Relay

Greegoo ED Series DC Output Plug-in Solid State Relays are designed to replace industry standard 12 x 29 mm plug-in Electromechanical Relays, offering substantial performance advantages over traditional EMR switching solutions in many applications. Available in SPST NO, NC, NO NC configuration, single output and dual output, the ED Series offer output ratings of 1A, 3A, 5A, 8A or 12 Amps at 4 to 400 VDC, and they are IEC rated and CE compliant.



Feature

• DC output Solid State Relay in an Industry standard EMR plug in package

• Ratings of 1, 3, 5, 8 & 12 Amps

• Load voltage range of 2-48 and 4-400DC.

• Fits standard DIN rail & PCB mountable sockets

• LED input status indicator

• AC or DC control

• IEC Rated, CE & RoHS Compliant

• Motor Controller Rated



Application

• Battery Management Systems

• Backup Power Supplies

• Valves

• Vending Equipment

• Lighting control

• Medical Equipment

• Test Equipment



Model Explanation:

ED- series DC load plug in type SSR relays

S - Standard type; H - AC/DC no polarity; P - Positive to Load; N - Negative to Load

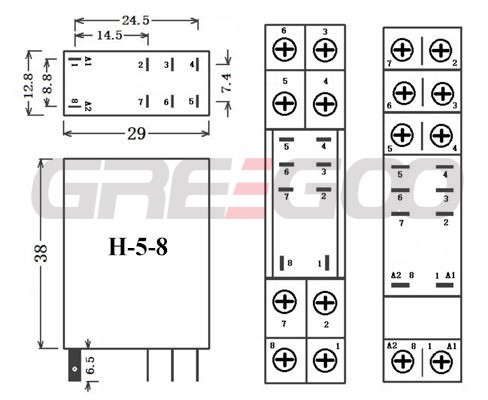

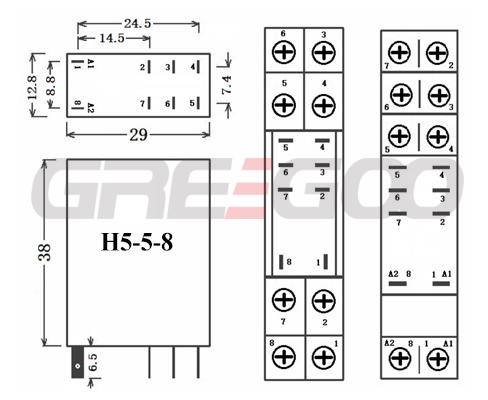

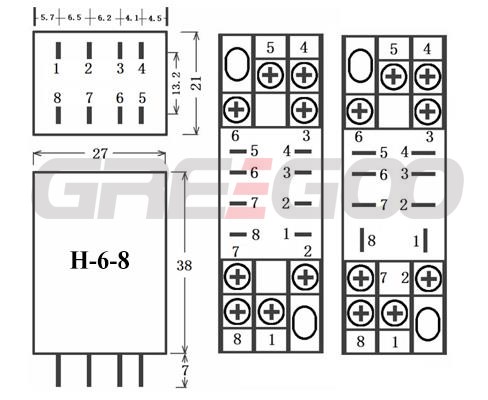

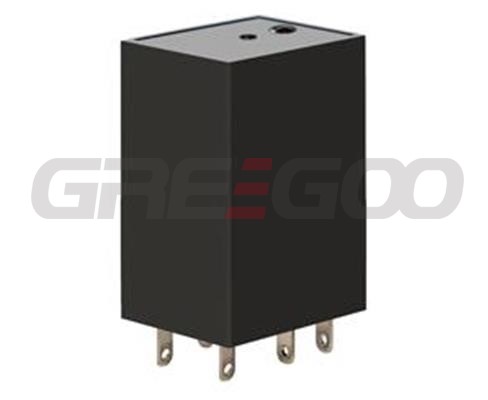

5 - Relay socket code H5; 6 - Relay socket code H6

1 - Single output; 2 - Dual output

K - Normal Open; B - Normal Close

01 - 1A; 03 - 3A; 05 - 5A; 08 - 8A; 12 - 12A

40 - 4-400VDC; 30 - 5-300VDC; 48 - 2-48VDC

D - Dc control; A - Ac control



General purpose Standard type of PLUG-IN DC output Solid State Relays

Model Switch mode Control voltage Operating voltage Rated current Relay Base SSR size Note

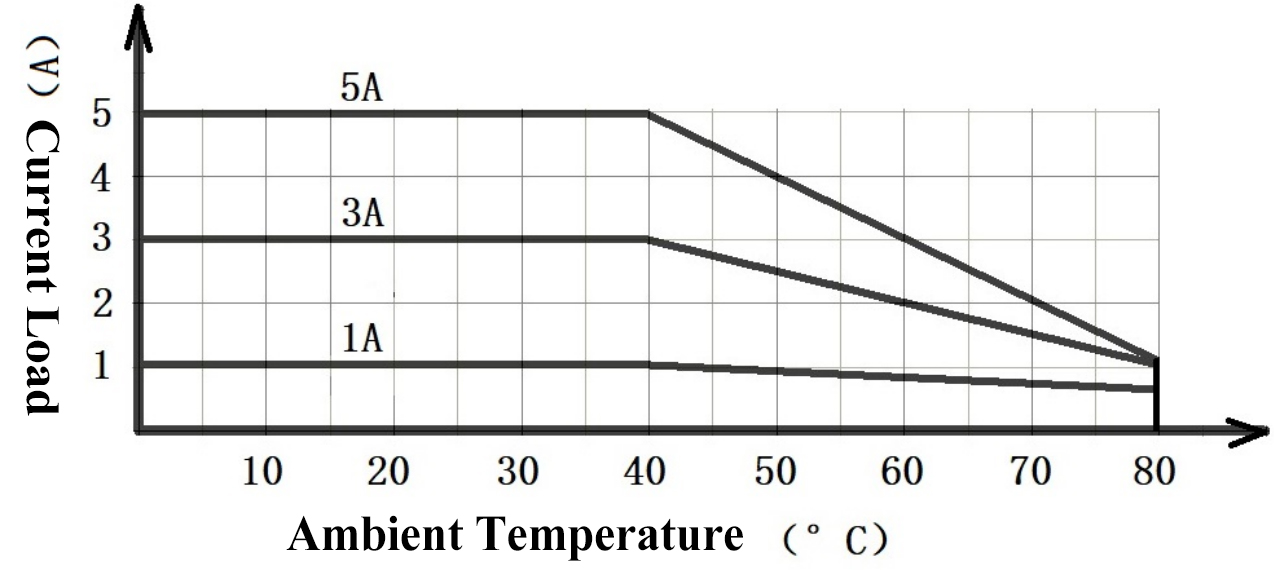

EDS51K-0140D 1NO 5-28VDC 4-400VDC 1A 12x29mm 38x29mm General Purpose
EDS51K-0340D 1NO 5-28VDC 4-400VDC 3A 12x29mm 38x29mm General Purpose
EDS51K-0540D 1NO 5-28VDC 4-400VDC 5A 12x29mm 38x29mm General Purpose
EDS51K-0140A 1NO 9-24VAC 4-400VDC 1A 12x29mm 38x29mm General Purpose
EDS51K-0340A 1NO 9-24VAC 4-400VDC 3A 12x29mm 38x29mm General Purpose
EDS51K-0540A 1NO 9-24VAC 4-400VDC 5A 12x29mm 38x29mm General Purpose

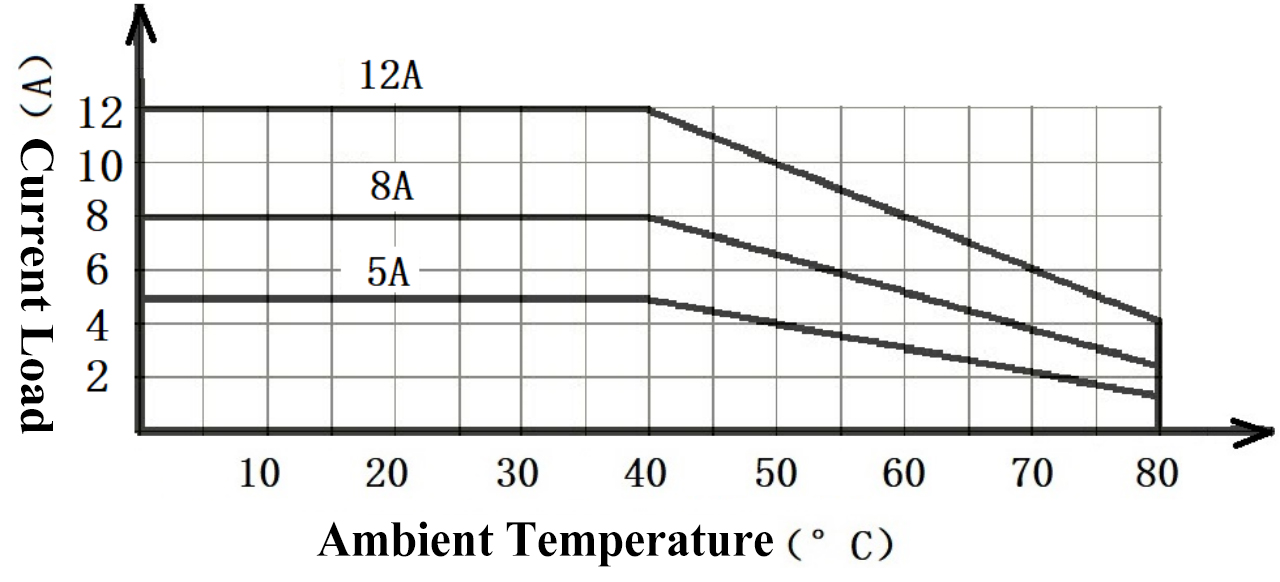

EDS51K-0548D 1NO 5-28VDC 2-48VDC 5A 12x29mm 38x29mm General Purpose
EDS51K-0848D 1NO 5-28VDC 2-48VDC 8A 12x29mm 38x29mm General Purpose
EDS51K-1248D 1NO 5-28VDC 2-48VDC 12A 12x29mm 38x29mm General Purpose
EDS51K-0548A 1NO 9-24VAC 2-48VDC 5A 12x29mm 38x29mm General Purpose
EDS51K-0848A 1NO 9-24VAC 2-48VDC 8A 12x29mm 38x29mm General Purpose
EDS51K-1248A 1NO 9-24VAC 2-48VDC 12A 12x29mm 38x29mm General Purpose
EDS52K-0140D 2NO 5-28VDC 4-400VDC 1A 12x29mm 38x29mm General Purpose
EDS52K-0340D 2NO 5-28VDC 4-400VDC 3A 12x29mm 38x29mm General Purpose
EDS52K-0540D 2NO 5-28VDC 4-400VDC 5A 12x29mm 38x29mm General Purpose
EDS52K-0548D 2NO 5-28VDC 2-48VDC 5A 12x29mm 38x29mm General Purpose
EDS52K-0848D 2NO 5-28VDC 2-48VDC 8A 12x29mm 38x29mm General Purpose
EDS52K-1248D 2NO 5-28VDC 2-48VDC 12A 12x29mm 38x29mm General Purpose
EDS62K-0140D 2NO 4-32VDC 48-400VDC 1A 21x27mm 38x27mm General Purpose
EDS62K-0340D 2NO 4-32VDC 48-400VDC 3A 21x27mm 38x27mm General Purpose
EDS62K-0540D 2NO 4-32VDC 48-400VDC 5A 21x27mm 38x27mm General Purpose
EDS62K-0548D 2NO 4-32VDC 2-48VDC 5A 21x27mm 38x27mm General Purpose
EDS62K-0848D 2NO 4-32VDC 2-48VDC 8A 21x27mm 38x27mm General Purpose
EDS62K-1248D 2NO 4-32VDC 2-48VDC 12A 21x27mm 38x27mm General Purpose



AC/DC, No Polarity DC Load Plug in SSR relays

Model Switch mode Control voltage Operating voltage Rated current Relay Base SSR size Note
EDH51K-0130D 1NO 5-28VDC 5-300VDC 1A 12x29mm 38x29mm No polarity,AC/DC
EDH51K-0330D 1NO 5-28VDC 5-300VDC 3A 12x29mm 38x29mm No polarity,AC/DC
EDH51K-0530D 1NO 5-28VDC 5-300VDC 5A 12x29mm 38x29mm No polarity,AC/DC
EDH51K-0130A 1NO 9-24VAC 5-300VDC 1A 12x29mm 38x29mm No polarity,AC/DC
EDH51K-0330A 1NO 9-24VAC 5-300VDC 3A 12x29mm 38x29mm No polarity,AC/DC
EDH51K-0530A 1NO 9-24VAC 5-300VDC 5A 12x29mm 38x29mm No polarity,AC/DC
EDH51K-0548D 1NO 5-28VDC 3-48VDC 5A 12x29mm 38x29mm No polarity,AC/DC
EDH51K-0848D 1NO 5-28VDC 3-48VDC 8A 12x29mm 38x29mm No polarity,AC/DC
EDH51K-1248D 1NO 5-28VDC 3-48VDC 12A 12x29mm 38x29mm No polarity,AC/DC
EDH51K-0548A 1NO 9-24VAC 3-48VDC 5A 12x29mm 38x29mm No polarity,AC/DC
EDH51K-0848A 1NO 9-24VAC 3-48VDC 8A 12x29mm 38x29mm No polarity,AC/DC
EDH51K-1248A 1NO 9-24VAC 3-48VDC 12A 12x29mm 38x29mm No polarity,AC/DC
EDH52K-0130D 2NO 5-28VDC 5-300VDC 1A 12x29mm 38x29mm No polarity,AC/DC
EDH52K-0330D 2NO 5-28VDC 5-300VDC 3A 12x29mm 38x29mm No polarity,AC/DC
EDH52K-0530D 2NO 5-28VDC 5-300VDC 5A 12x29mm 38x29mm No polarity,AC/DC
EDH52K-0548D 2NO 5-28VDC 3-48VDC 5A 12x29mm 38x29mm No polarity,AC/DC
EDH52K-0848D 2NO 5-28VDC 3-48VDC 8A 12x29mm 38x29mm No polarity,AC/DC
EDH52K-1248D 2NO 5-28VDC 3-48VDC 12A 12x29mm 38x29mm No polarity,AC/DC
EDH62K-0130D 2NO 5-28VDC 5-300VDC 1A 21x27mm 38x27mm No polarity,AC/DC
EDH62K-0330D 2NO 5-28VDC 5-300VDC 3A 21x27mm 38x27mm No polarity,AC/DC
EDH62K-0530D 2NO 5-28VDC 5-300VDC 5A 21x27mm 38x27mm No polarity,AC/DC
EDH62K-0548D 2NO 5-28VDC 3-48VDC 5A 21x27mm 38x27mm No polarity,AC/DC
EDH62K-0848D 2NO 5-28VDC 3-48VDC 8A 21x27mm 38x27mm No polarity,AC/DC
EDH62K-1248D 2NO 5-28VDC 3-48VDC 12A 21x27mm 38x27mm No polarity,AC/DC



Positive to Load PLUG-IN DC output SSR relays

Model Switch mode Control voltage Operating voltage Rated current Relay Base SSR size Note
EDP51K-0140D 1NO 4-32VDC 80-400VDC 1A 12x29mm 38x29mm Positive to Load
EDP51K-0340D 1NO 4-32VDC 80-400VDC 3A 12x29mm 38x29mm Positive to Load
EDP51K-0540D 1NO 4-32VDC 80-400VDC 5A 12x29mm 38x29mm Positive to Load
EDP51K-0548D 1NO 4-32VDC 12-48VDC 5A 12x29mm 38x29mm Positive to Load
EDP51K-0848D 1NO 4-32VDC 12-48VDC 8A 12x29mm 38x29mm Positive to Load
EDP51K-1248D 1NO 4-32VDC 12-48VDC 12A 12x29mm 38x29mm Positive to Load
EDP51K-0140A 1NO 5-28VAC 80-400VDC 1A 12x29mm 38x29mm Positive to Load
EDP51K-0340A 1NO 5-28VAC 80-400VDC 3A 12x29mm 38x29mm Positive to Load
EDP51K-0540A 1NO 5-28VAC 80-400VDC 5A 12x29mm 38x29mm Positive to Load
EDP51K-0548A 1NO 5-28VAC 12-48VDC 5A 12x29mm 38x29mm Positive to Load
EDP51K-0848A 1NO 5-28VAC 12-48VDC 8A 12x29mm 38x29mm Positive to Load
EDP51K-1248A 1NO 5-28VAC 12-48VDC 12A 12x29mm 38x29mm Positive to Load
EDP51B-0140D 1NC 4-32VDC 80-400VDC 1A 12x29mm 38x29mm Positive to Load
EDP51B-0340D 1NC 4-32VDC 80-400VDC 3A 12x29mm 38x29mm Positive to Load
EDP51B-0540D 1NC 4-32VDC 80-400VDC 5A 12x29mm 38x29mm Positive to Load
EDP51B-0548D 1NC 4-32VDC 12-48VDC 5A 12x29mm 38x29mm Positive to Load
EDP51B-0848D 1NC 4-32VDC 12-48VDC 8A 12x29mm 38x29mm Positive to Load
EDP51B-1248D 1NC 4-32VDC 12-48VDC 12A 12x29mm 38x29mm Positive to Load
EDP51B-0140A 1NC 5-28VAC 80-400VDC 1A 12x29mm 38x29mm Positive to Load
EDP51B-0340A 1NC 5-28VAC 80-400VDC 3A 12x29mm 38x29mm Positive to Load
EDP51B-0540A 1NC 5-28VAC 80-400VDC 5A 12x29mm 38x29mm Positive to Load
EDP51B-0548A 1NC 5-28VAC 12-48VDC 5A 12x29mm 38x29mm Positive to Load
EDP51B-0848A 1NC 5-28VAC 12-48VDC 8A 12x29mm 38x29mm Positive to Load
EDP51B-1248A 1NC 5-28VAC 12-48VDC 12A 12x29mm 38x29mm Positive to Load
EDP52K-0140D 2NO 4-32VDC 80-400VDC 1A 12x29mm 38x29mm Positive to Load
EDP52K-0340D 2NO 4-32VDC 80-400VDC 3A 12x29mm 38x29mm Positive to Load
EDP52K-0540D 2NO 4-32VDC 80-400VDC 5A 12x29mm 38x29mm Positive to Load
EDP52K-0548D 2NO 4-32VDC 12-48VDC 5A 12x29mm 38x29mm Positive to Load
EDP52K-0848D 2NO 4-32VDC 12-48VDC 8A 12x29mm 38x29mm Positive to Load
EDP52K-1248D 2NO 4-32VDC 12-48VDC 12A 12x29mm 38x29mm Positive to Load
EDP52KB-0140D 1NO 1NC 4-32VDC 80-400VDC 1A 12x29mm 38x29mm Positive to Load
EDP52KB-0340D 1NO 1NC 4-32VDC 80-400VDC 3A 12x29mm 38x29mm Positive to Load
EDP52KB-0540D 1NO 1NC 4-32VDC 80-400VDC 5A 12x29mm 38x29mm Positive to Load
EDP52KB-0548D 1NO 1NC 4-32VDC 12-48VDC 5A 12x29mm 38x29mm Positive to Load
EDP52KB-0848D 1NO 1NC 4-32VDC 12-48VDC 8A 12x29mm 38x29mm Positive to Load
EDP52KB-1248D 1NO 1NC 4-32VDC 12-48VDC 12A 12x29mm 38x29mm Positive to Load
EDP62K-0140D 2NO 4-32VDC 80-400VDC 1A 21x27mm 38x27mm Positive to Load
EDP62K-0340D 2NO 4-32VDC 80-400VDC 3A 21x27mm 38x27mm Positive to Load
EDP62K-0540D 2NO 4-32VDC 80-400VDC 5A 21x27mm 38x27mm Positive to Load
EDP62K-0548D 2NO 4-32VDC 12-48VDC 5A 21x27mm 38x27mm Positive to Load
EDP62K-0848D 2NO 4-32VDC 12-48VDC 8A 21x27mm 38x27mm Positive to Load
EDP62K-1248D 2NO 4-32VDC 12-48VDC 12A 21x27mm 38x27mm Positive to Load
EDP62K-0140A 2NO 5-28VAC 80-400VDC 1A 21x27mm 38x27mm Positive to Load
EDP62K-0340A 2NO 5-28VAC 80-400VDC 3A 21x27mm 38x27mm Positive to Load
EDP62K-0540A 2NO 5-28VAC 80-400VDC 5A 21x27mm 38x27mm Positive to Load
EDP62K-0548A 2NO 5-28VAC 12-48VDC 5A 21x27mm 38x27mm Positive to Load
EDP62K-0848A 2NO 5-28VAC 12-48VDC 8A 21x27mm 38x27mm Positive to Load
EDP62K-1248A 2NO 5-28VAC 12-48VDC 12A 21x27mm 38x27mm Positive to Load
EDP62KB-0140D 1NO 1NC 4-32VDC 80-400VDC 1A 21x27mm 38x27mm Positive to Load
EDP62KB-0340D 1NO 1NC 4-32VDC 80-400VDC 3A 21x27mm 38x27mm Positive to Load
EDP62KB-0540D 1NO 1NC 4-32VDC 80-400VDC 5A 21x27mm 38x27mm Positive to Load
EDP62KB-0548D 1NO 1NC 4-32VDC 12-48VDC 5A 21x27mm 38x27mm Positive to Load
EDP62KB-0848D 1NO 1NC 4-32VDC 12-48VDC 8A 21x27mm 38x27mm Positive to Load
EDP62KB-1248D 1NO 1NC 4-32VDC 12-48VDC 12A 21x27mm 38x27mm Positive to Load
EDP62KB-0140A 1NO 1NC 5-28VAC 80-400VDC 1A 21x27mm 38x27mm Positive to Load
EDP62KB-0340A 1NO 1NC 5-28VAC 80-400VDC 3A 21x27mm 38x27mm Positive to Load
EDP62KB-0540A 1NO 1NC 5-28VAC 80-400VDC 5A 21x27mm 38x27mm Positive to Load
EDP62KB-0548A 1NO 1NC 5-28VAC 12-48VDC 5A 21x27mm 38x27mm Positive to Load
EDP62KB-0848A 1NO 1NC 5-28VAC 12-48VDC 8A 21x27mm 38x27mm Positive to Load
EDP62KB-1248A 1NO 1NC 5-28VAC 12-48VDC 12A 21x27mm 38x27mm Positive to Load



Negative to Load DC Solid State Relays, Plug In type

Model Switch mode Control voltage Operating voltage Rated current Relay Base SSR size Note
EDN51K-0140D 1NO 4-32VDC 80-400VDC 1A 12x29mm 38x29mm Negative to Load
EDN51K-0340D 1NO 4-32VDC 80-400VDC 3A 12x29mm 38x29mm Negative to Load
EDN51K-0540D 1NO 4-32VDC 80-400VDC 5A 12x29mm 38x29mm Negative to Load
EDN51K-0548D 1NO 4-32VDC 12-48VDC 5A 12x29mm 38x29mm Negative to Load
EDN51K-0848D 1NO 4-32VDC 12-48VDC 8A 12x29mm 38x29mm Negative to Load
EDN51K-1248D 1NO 4-32VDC 12-48VDC 12A 12x29mm 38x29mm Negative to Load
EDN51B-0140D 1NC 4-32VDC 80-400VDC 1A 12x29mm 38x29mm Negative to Load
EDN51B-0340D 1NC 4-32VDC 80-400VDC 3A 12x29mm 38x29mm Negative to Load
EDN51B-0540D 1NC 4-32VDC 80-400VDC 5A 12x29mm 38x29mm Negative to Load
EDN51B-0548D 1NC 4-32VDC 12-48VDC 5A 12x29mm 38x29mm Negative to Load
EDN51B-0848D 1NC 4-32VDC 12-48VDC 8A 12x29mm 38x29mm Negative to Load
EDN51B-1248D 1NC 4-32VDC 12-48VDC 12A 12x29mm 38x29mm Negative to Load
EDN52K-0140D 2NO 4-32VDC 80-400VDC 1A 12x29mm 38x29mm Negative to Load
EDN52K-0340D 2NO 4-32VDC 80-400VDC 3A 12x29mm 38x29mm Negative to Load
EDN52K-0540D 2NO 4-32VDC 80-400VDC 5A 12x29mm 38x29mm Negative to Load
EDN52K-0548D 2NO 4-32VDC 12-48VDC 5A 12x29mm 38x29mm Negative to Load
EDN52K-0848D 2NO 4-32VDC 12-48VDC 8A 12x29mm 38x29mm Negative to Load
EDN52K-1248D 2NO 4-32VDC 12-48VDC 12A 12x29mm 38x29mm Negative to Load
EDN52KB-0140D 1NO 1NC 4-32VDC 80-400VDC 1A 12x29mm 38x29mm Negative to Load
EDN52KB-0340D 1NO 1NC 4-32VDC 80-400VDC 3A 12x29mm 38x29mm Negative to Load
EDN52KB-0540D 1NO 1NC 4-32VDC 80-400VDC 5A 12x29mm 38x29mm Negative to Load
EDN52KB-0548D 1NO 1NC 4-32VDC 12-48VDC 5A 12x29mm 38x29mm Negative to Load
EDN52KB-0848D 1NO 1NC 4-32VDC 12-48VDC 8A 12x29mm 38x29mm Negative to Load
EDN52KB-1248D 1NO 1NC 4-32VDC 12-48VDC 12A 12x29mm 38x29mm Negative to Load
EDN62K-0140D 2NO 4-32VDC 80-400VDC 1A 21x27mm 38x27mm Negative to Load
EDN62K-0340D 2NO 4-32VDC 80-400VDC 3A 21x27mm 38x27mm Negative to Load
EDN62K-0540D 2NO 4-32VDC 80-400VDC 5A 21x27mm 38x27mm Negative to Load
EDN62K-0548D 2NO 4-32VDC 12-48VDC 5A 21x27mm 38x27mm Negative to Load
EDN62K-0848D 2NO 4-32VDC 12-48VDC 8A 21x27mm 38x27mm Negative to Load
EDN62K-1248D 2NO 4-32VDC 12-48VDC 12A 21x27mm 38x27mm Negative to Load
EDN62KB-0140D 1NO 1NC 4-32VDC 80-400VDC 1A 21x27mm 38x27mm Negative to Load
EDN62KB-0340D 1NO 1NC 4-32VDC 80-400VDC 3A 21x27mm 38x27mm Negative to Load
EDN62KB-0540D 1NO 1NC 4-32VDC 80-400VDC 5A 21x27mm 38x27mm Negative to Load
EDN62KB-0548D 1NO 1NC 4-32VDC 12-48VDC 5A 21x27mm 38x27mm Negative to Load
EDN62KB-0848D 1NO 1NC 4-32VDC 12-48VDC 8A 21x27mm 38x27mm Negative to Load
EDN62KB-1248D 1NO 1NC 4-32VDC 12-48VDC 12A 21x27mm 38x27mm Negative to Load
EDN62KB-0140A 1NO 1NC 5-28VAC 80-400VDC 1A 21x27mm 38x27mm Negative to Load
EDN62KB-0340A 1NO 1NC 5-28VAC 80-400VDC 3A 21x27mm 38x27mm Negative to Load
EDN62KB-0540A 1NO 1NC 5-28VAC 80-400VDC 5A 21x27mm 38x27mm Negative to Load
EDN62KB-0548A 1NO 1NC 5-28VAC 12-48VDC 5A 21x27mm 38x27mm Negative to Load
EDN62KB-0848A 1NO 1NC 5-28VAC 12-48VDC 8A 21x27mm 38x27mm Negative to Load
EDN62KB-1248A 1NO 1NC 5-28VAC 12-48VDC 12A 21x27mm 38x27mm Negative to Load




Inquiry

Need more information?

Contact us to request pricing, availability and customization options.

Copyright © Greegoo Electric Co., Ltd.

WeChat

WhatsApp

GreegooChina@Gmail.com

Send an Enquiry

We value your privacy

We use cookies to enhance your browsing experience, serve personalized ads or content, and analyze our traffic. By clicking "Accept All", you consent to our use of cookies.

Consent Preferences

Consent Preferences
