Product details

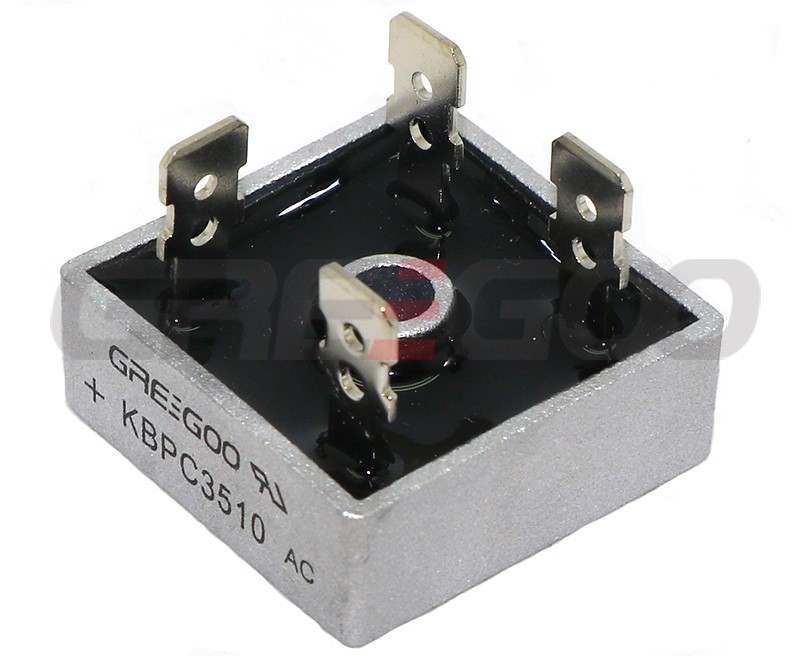

Single phase bridge rectifier KBPC3510

Feature
■ International standard package
■ Low forward voltage drop
■ Isolation voltage 2000V Application Maximum value

Electrical characteristics
■ DC power suppliers for apparatus device
■ Input rectifying power supply for PWM converters
■ Inverter welders

Specification
Type V RRM I O @T I FSM I R V FM @I FM
V A A uA V A
KBPC1002 200 10 55 200 10 1.1 5
KBPC1006 600 10 55 200 10 1.1 5

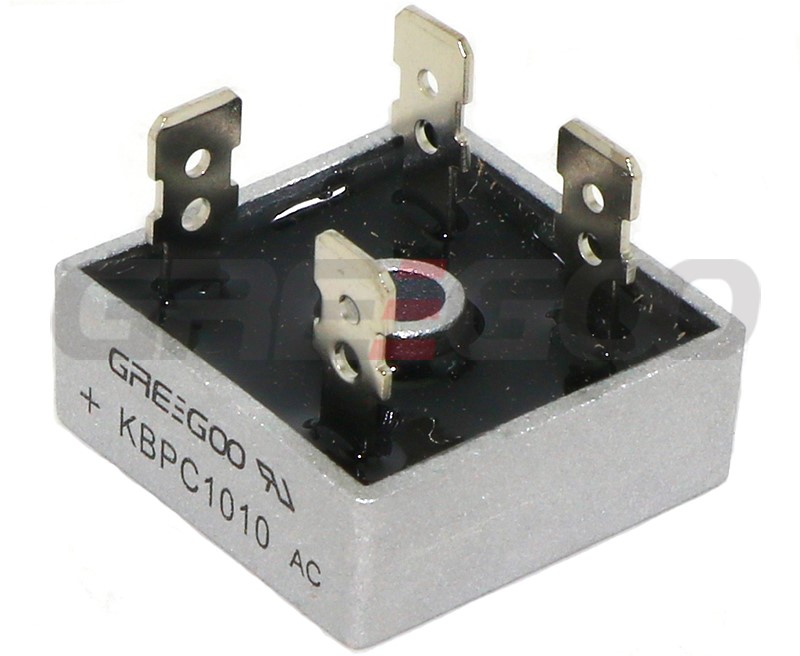

KBPC1010 1000 10 55 200 10 1.1 5

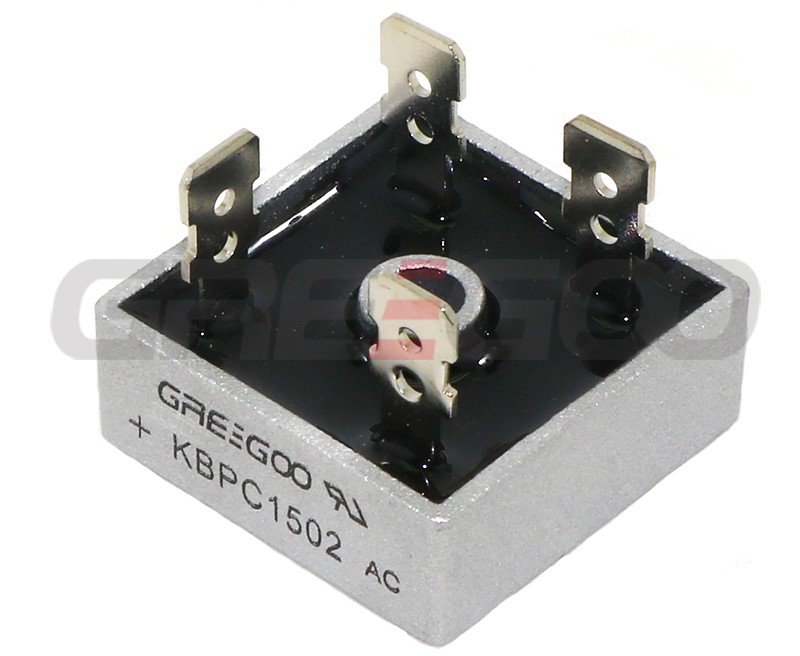

KBPC1502 200 15 55 300 10 1.2 7.5

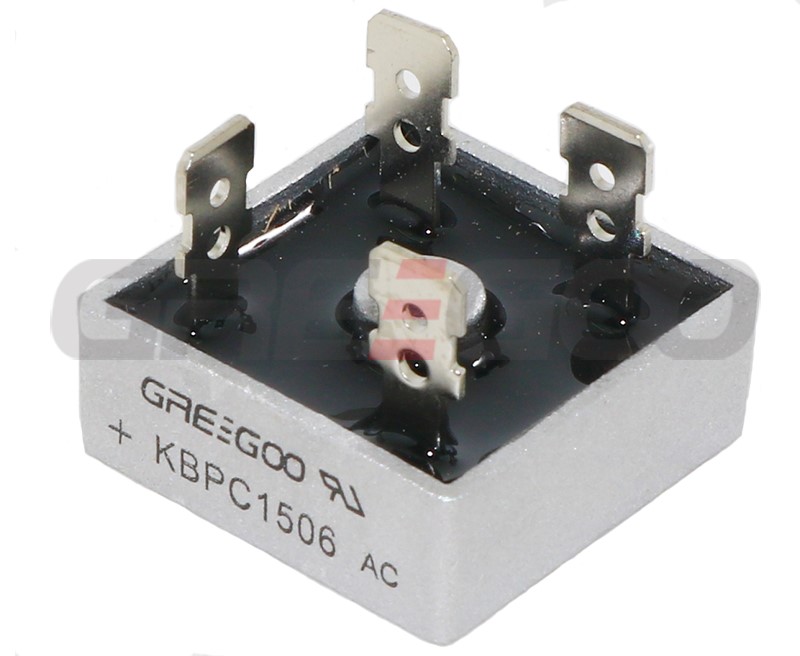

KBPC1506 600 15 55 300 10 1.2 7.5
KBPC1510 1000 15 55 300 10 1.2 7.5

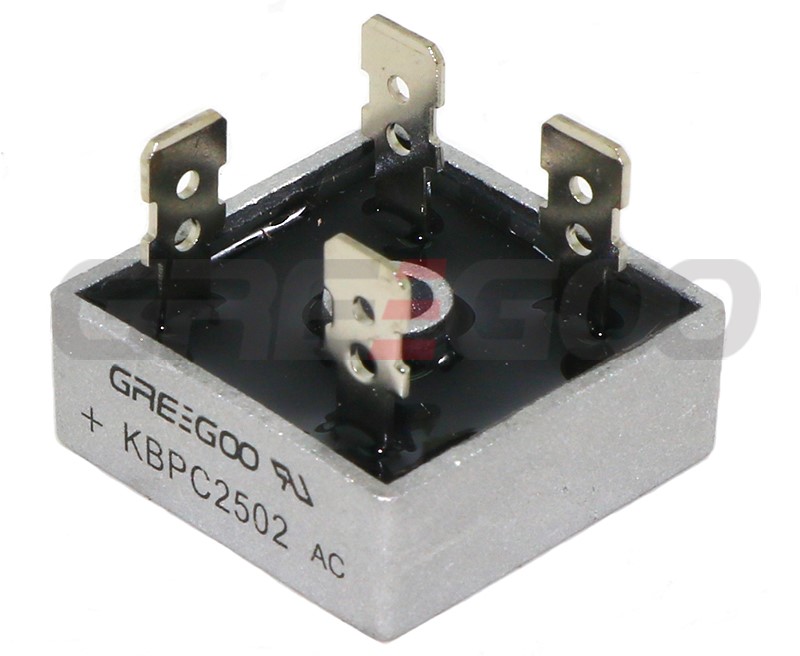

KBPC2502 200 25 55 300 10 1.2 12.5
KBPC2506 600 25 55 300 10 1.2 12.5
KBPC2510 1000 25 55 300 10 1.2 12.5

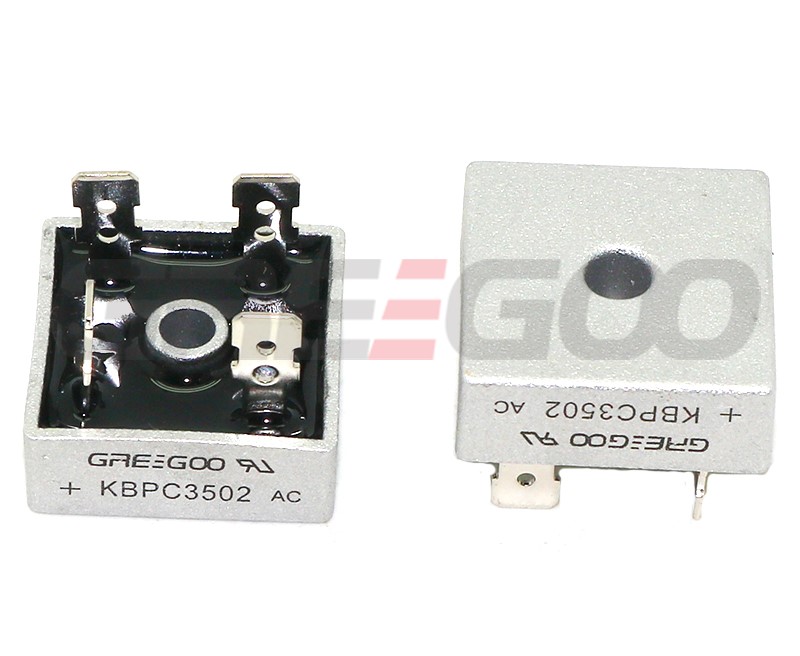

KBPC3502 200 35 55 400 10 1.2 17.5
KBPC3506 600 35 55 400 10 1.2 17.5
KBPC3510 1000 35 55 400 10 1.2 17.5
KPBC3512 1200 35 55 400 10 1.2 17.5
KPBC3516 1600 35 55 400 10 1.2 17.5

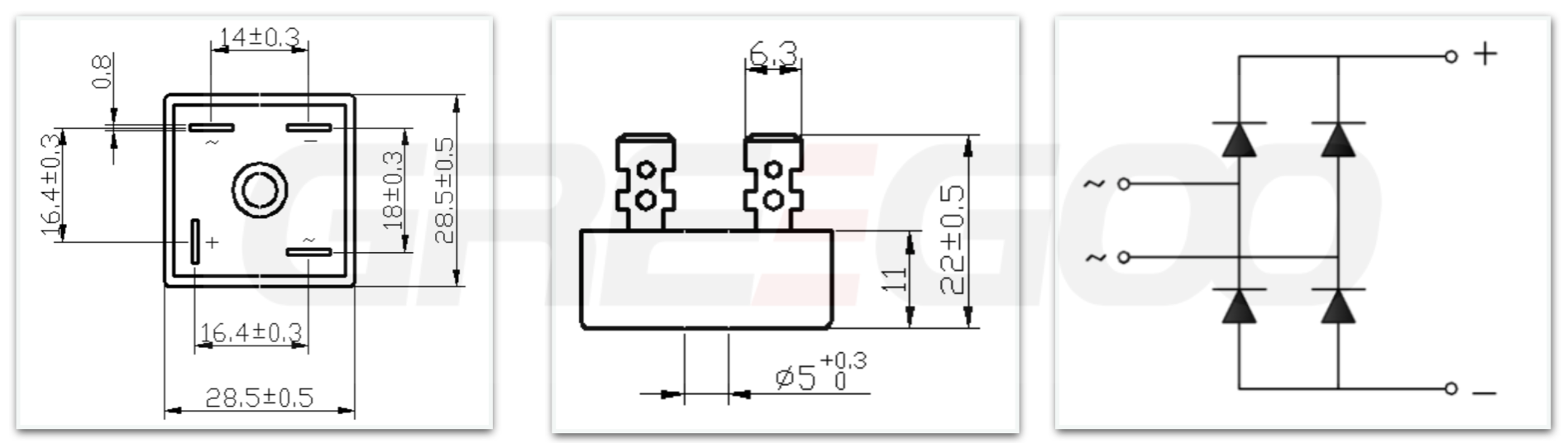

Dimension

kbpc3510

FAQ
Q:What does a bridge rectifier do?

A bridge rectifier is an electronic component used to convert alternating current (AC) to direct current (DC). It consists of four diodes that conduct current during both the positive and negative half-cycles of AC, thus outputting unidirectional DC. During operation, current flows through two diodes in the positive half-cycle and through the other two diodes in the negative half-cycle, ensuring the current always flows in one direction. Bridge rectifiers are widely used in power adapters, chargers, and various electronic devices to provide a stable power supply for devices requiring DC. Its simple design and high efficiency make it an essential component in power electronics.

Q: What is the difference between KBPC3510 and SKD162 bridge rectifier?

KBPC3510 and SKD160 are both rectifiers, but they differ in application and design. The KBPC3510 is a single-phase bridge rectifier with a rated voltage of 1000V and a current of 35A, suitable for small power devices like adapters and chargers. It consists of four diodes in a compact package. The SKD160 is a diode bridge module with a voltage range of 800-2200V and a current of 205A, suitable for high-power industrial applications such as motor drives and power conversion equipment. Its modular design allows it to handle higher currents and voltages. In summary, KBPC3510 is for low-power applications, while SKD160 is for high-power scenarios.
