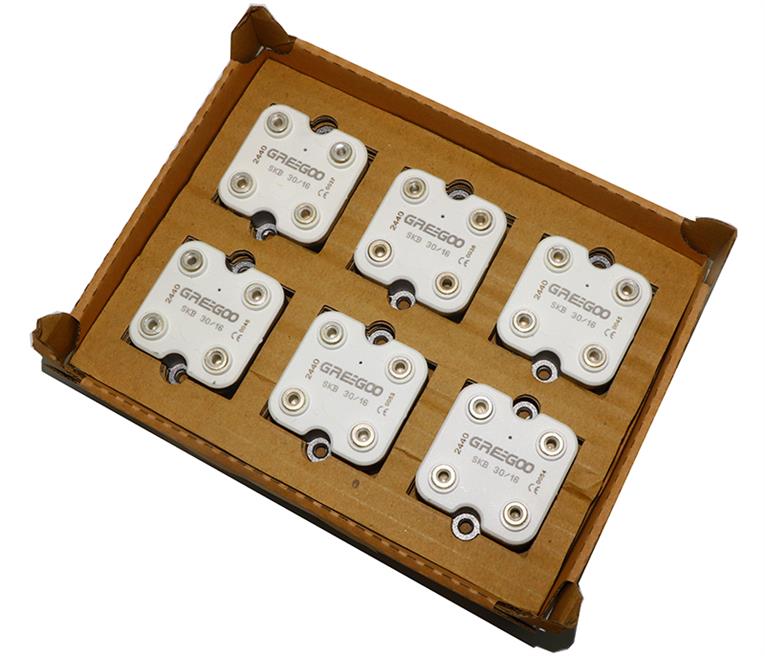

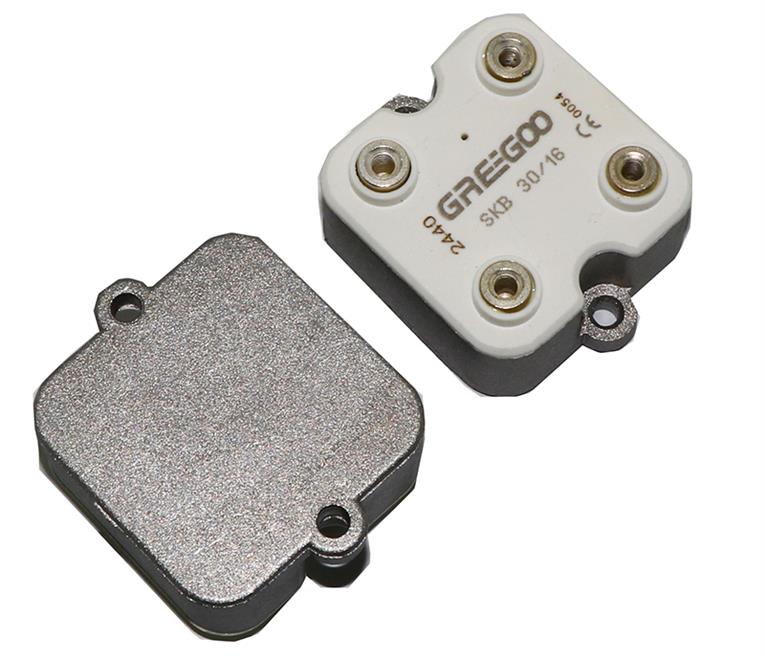

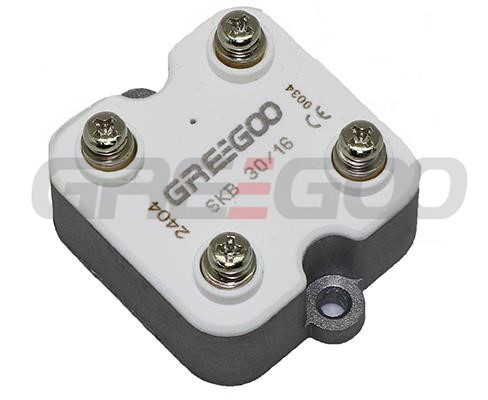

Single phase bridge rectifier modules

28A to 200A, 1 phase bridge rectifier module

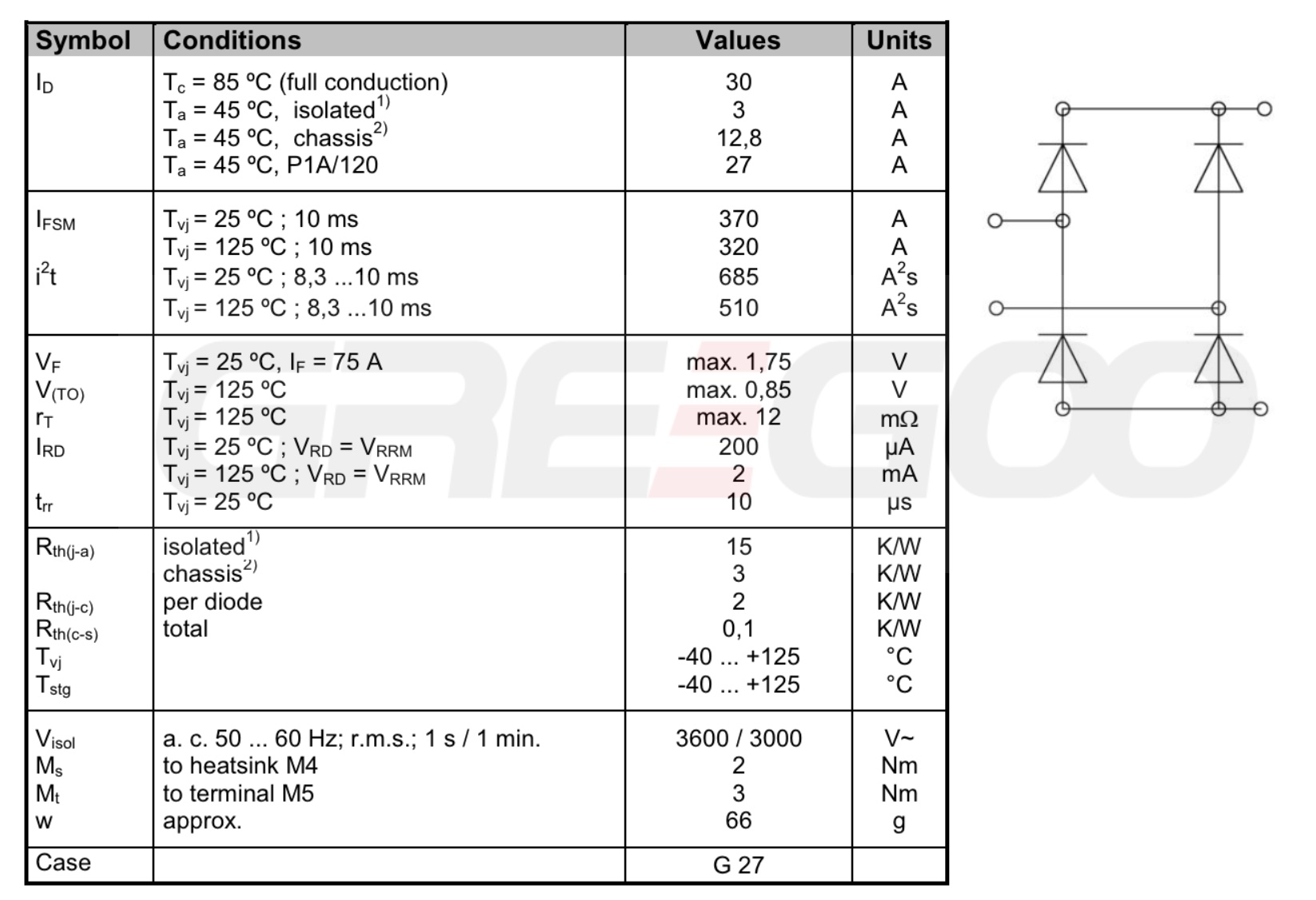

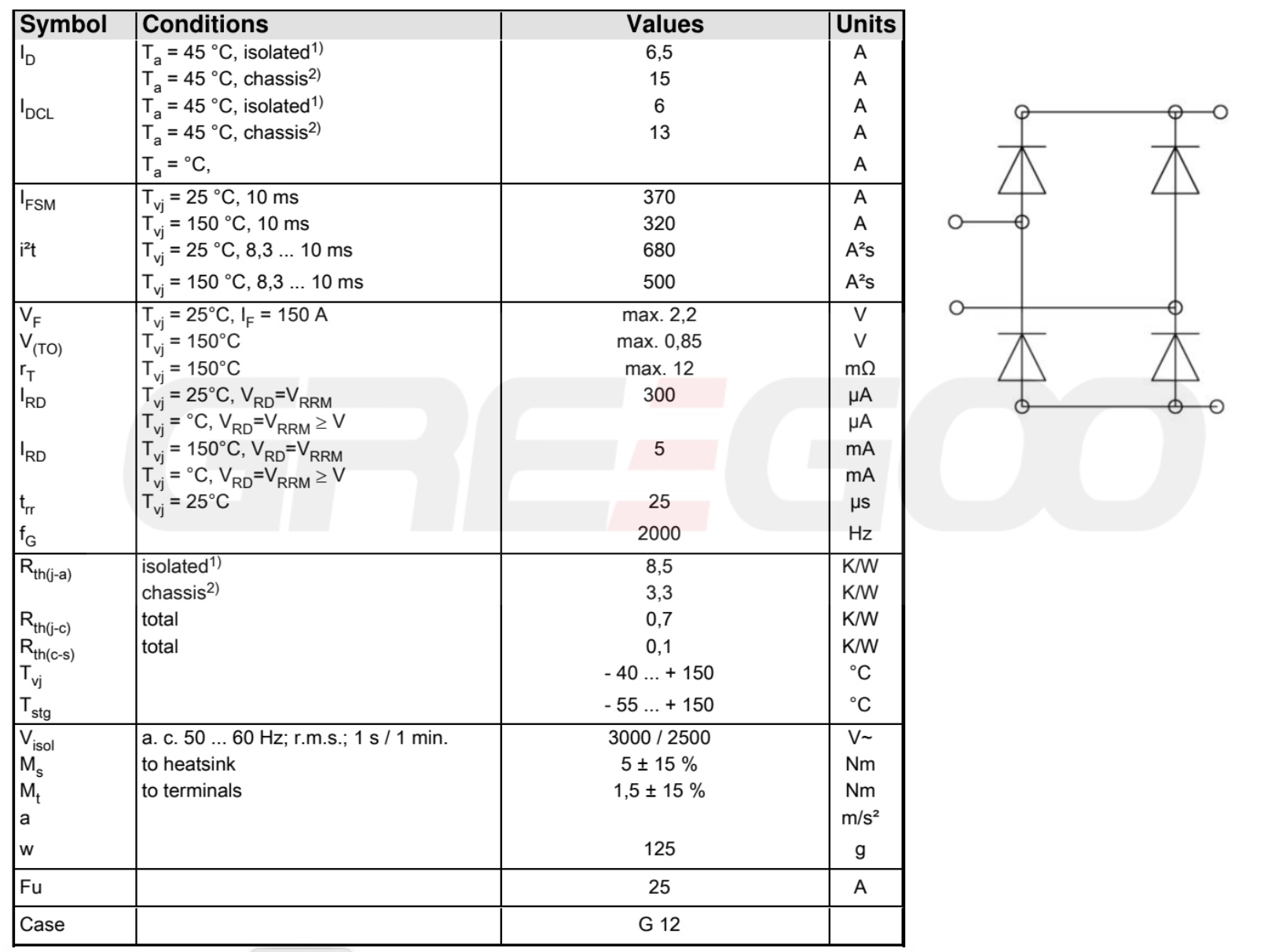

Model No. Equal to VRRM VDRM ID @ TC TC ITSM IFSM@ Tjmax VT(TO) @ Tjmax rT @ Tjmax Rth(j-c)cont. per chip Tj Case
V A ℃ A V mΩ K/W ℃

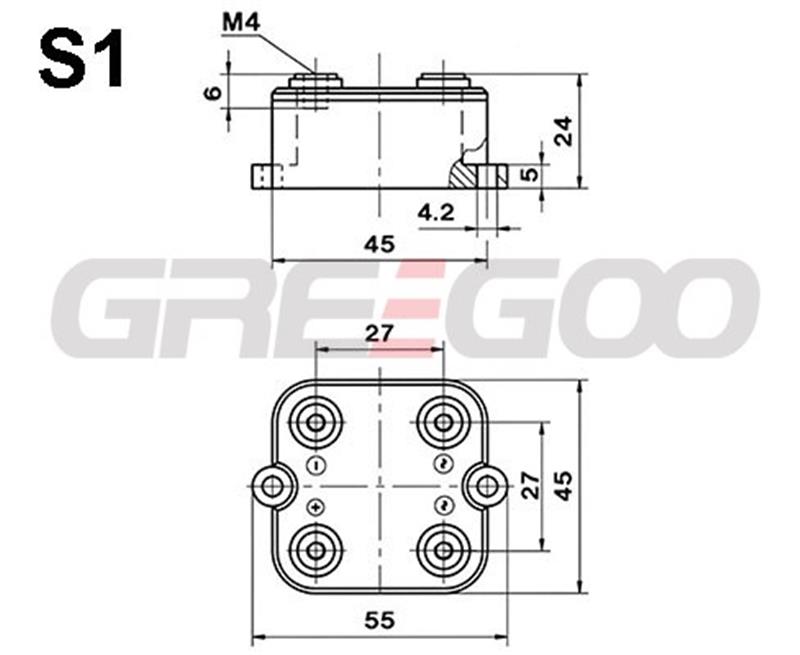

MDQ28S SKB 28 200-1600 28 87 320 0.85 12 2 -40 ... +125 S1
MDQ50S SKB 52 400-1800 50 99 425 0.85 8 1.5 -40 ... +150 S2
MDQ60S SKB 60 400-1600 60 88 850 0.85 5 1 -40 ... +125 S2
MDQ70S SKB 72 400-1800 70 101 640 0.85 5 1.1 -40 ... +150 S2
MDQ82S SKB 82 400-1800 80 110 640 0.85 5 1.1 -40 ... +150 S2
MDQ100S SKB 100 400-1600 100 93 1000 0.85 5 0.85 -40 ... +125 S2
MDQ110S SKB 110 800-1800 110 100 1000 0.85 4 0.9 -40 ... +150 S3
MDQ160S SKB 160 800-1800 205 85 1500 0.85 3 0.65 -40 ... +150 S3
MDQ200S SKB 210 900-1800 207 99 1600 0.85 3 0.5 -40 ... +150 S3
