Single Phase DIN-RAIL 2P Modbus Electric Power Meter LCD Digital Energy Meter RS485
Your benefits:
Large screen LCD display; RS485 (communication protocol MODBUS-RTU) remote meter reading function, which can accurately measure active energy; Using advanced ultra-low power and large-scale integrated circuit technology and SMT manufacturing process; The key components are long-life devices from internationally renowned brands, which improve the reliability and durability of the products.
Working Humidity | ≤ 75% |
Storage Humidity | ≤ 95% |
Operating Temperature | -10°C - 50°C |
Storage Temperature | -30°C - 70°C |
International standard | IEC 62053-21 |
Domestic Standard | GB/T17215.321-2008 |
Accuracy Class | 1 |
Dustproof and Waterproof | IP 51 |
Protective Insulation Encapsulation Type | Ⅱ |
Model | GEM015SI |
Reference Voltage (Un) | 220V 230V 240V |
Operating Voltage | 181/279V AC (3~) |
Rated Current (Ib) | 2.5 5A 10A 15A 20A 30A |
Maximum Current (Imax) | 10A 20A 40A 60A 80A 100A |
Starting Current | ≤0.004b(Direct Access) |
Withstand Overload Current | 30Imax 0.01s |
Working Frequency | 50Hz±10% |
Internal Power Consumption | ≤2W / 10VA |
Pulse Constant | 1000imp |

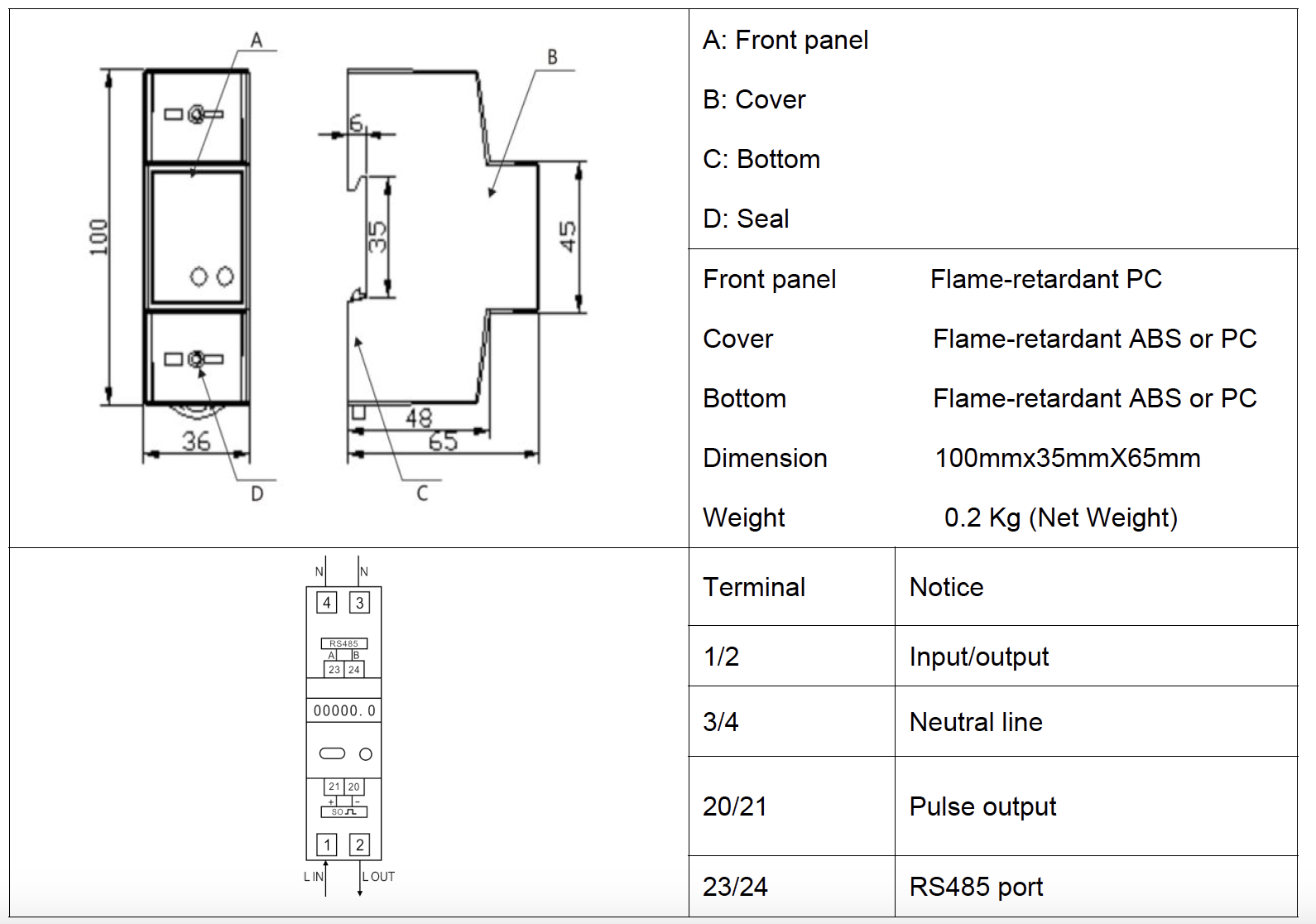

RS485 Port | 23(A) and 24(B) |
Data Storage Time | >20 Years |
LCD Display:
1st Screen displays ID address Add 001
2nd Screen displays baud rate bd 9600
3rd Screen displays constant CoSE 1000imp
4th Screen displays the total amount of electricity 000000.00 kWh
Intrinsic Error:
Single phase balanced load
0.05Ib Cosφ = 1 ±1.5%
0.1Ib Cosφ = 0.5L ±1.5%
Cosφ = 0.8C ±1.5%
0.1Ib - Imax Cosφ = 1 ±1.0%
0.2Ib - Imax Cosφ = 0.5L ±1.0%
Cosφ = 0.8C ±1.0%
