Model No.	Description	Max.Current	Load Voltage Range	Control Mode	Housing	Port	Indicator
SVR-ZL-3022010	Single phase Rectifier Module	30A	0-198VDC	0-10V	G51	5 pins	LED
SVR-ZL-3022020	Single phase Rectifier Module	30A	0-198VDC	4-20mA	G51	5 pins	LED
SVR-ZL-3038010	Single phase Rectifier Module	30A	0-342VDC	0-10V	G51	5 pins	LED
SVR-ZL-3038020	Single phase Rectifier Module	30A	0-342VDC	4-20mA	G51	5 pins	LED
SVR-ZL-5522010	Single phase Rectifier Module	55A	0-198VDC	0-10V	G51	5 pins	LED
SVR-ZL-5522020	Single phase Rectifier Module	55A	0-198VDC	4-20mA	G51	5 pins	LED
SVR-ZL-5538010	Single phase Rectifier Module	55A	0-342VDC	0-10V	G51	5 pins	LED
SVR-ZL-5538020	Single phase Rectifier Module	55A	0-342VDC	4-20mA	G51	5 pins	LED
SVR-ZL-10022010	Single phase Rectifier Module	100A	0-198VDC	0-10V	G59	5 pins	LED
SVR-ZL-10022020	Single phase Rectifier Module	100A	0-198VDC	4-20mA	G59	5 pins	LED
SVR-ZL-10038010	Single phase Rectifier Module	100A	0-342VDC	0-10V	G59	5 pins	LED
SVR-ZL-10038020	Single phase Rectifier Module	100A	0-342VDC	4-20mA	G59	5 pins	LED

Model	SVR-ZL-30A 55A	SVR-ZL-100A	SVR-ZL-150A SVR-ZL-200A	SVR-ZL-250A SVR-ZL-320A	SVR-ZL-400A
Case code	G-51	G-59	G-73	G-105	G-135
Control PSU power	3W	3W	3W	3W	3.5W
Control port	5 pin		9 pin	15 pin
Power status indicator	LED		No
Control method	0-10Vdc/4-20mA(alternative)		0-10Vdc/4-20mA
Load voltage range	220Vac:0-198Vdc / 380Vac:0-342Vdc
Rated current	30A、55A、100A、150A、200A、250A、320A、400A
Control power supply	12Vdc-24Vdc
Voltage unbalance	<2%
Voltage instability	<0.5%
SCR Chip Forward and Reverse Peak Voltage Withstand	≥1800V
di/dt	500A/μS
dv/dt	3000V/μS
Working Environment Temperature	-25℃~45℃

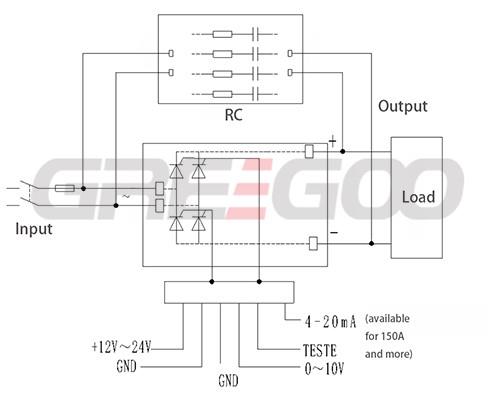

Single phase rectifier intelligent power module
