Product Details

Solid state voltage regulator with 4-20mA or 2-10vdc control

Model #	Load voltage range	Load current	Control method	Isolation voltage	Insulation voltage	Minimum voltage drop at load terminal	Ambient temperature
GVP2215V	0-220VAC	15A	2-10VDC	≥2000VAC	≥2500VAC	≤2V	-40～80℃
GVP2225V	0-220VAC	25A	2-10VDC	≥2000VAC	≥2500VAC	≤2V	-40～80℃
GVP2240V	0-220VAC	40A	2-10VDC	≥2000VAC	≥2500VAC	≤2V	-40～80℃
GVP2260V	0-220VAC	60A	2-10VDC	≥2000VAC	≥2500VAC	≤2V	-40～80℃
GVP2280V	0-220VAC	80A	2-10VDC	≥2000VAC	≥2500VAC	≤2V	-40～80℃
GVP22100V	0-220VAC	100A	2-10VDC	≥2000VAC	≥2500VAC	≤2V	-40～80℃

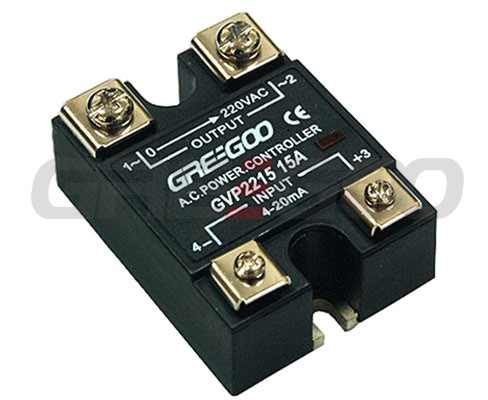

GVP2215A	0-220VAC	15A	4-20MA	≥2000VAC	≥2500VAC	≤2V	-40～80℃
GVP2225A	0-220VAC	25A	4-20MA	≥2000VAC	≥2500VAC	≤2V	-40～80℃
GVP2240A	0-220VAC	40A	4-20MA	≥2000VAC	≥2500VAC	≤2V	-40～80℃
GVP2260A	0-220VAC	60A	4-20MA	≥2000VAC	≥2500VAC	≤2V	-40～80℃
GVP2280A	0-220VAC	80A	4-20MA	≥2000VAC	≥2500VAC	≤2V	-40～80℃
GVP22100A	0-220VAC	100A	4-20MA	≥2000VAC	≥2500VAC	≤2V	-40～80℃

GVP3840V	0-380VAC	40A	2-10VDC	≥2000VAC	≥2500VAC	≤2V	-40～80℃
GVP3850V	0-380VAC	50A	2-10VDC	≥2000VAC	≥2500VAC	≤2V	-40～80℃
GVP3860V	0-380VAC	60A	2-10VDC	≥2000VAC	≥2500VAC	≤2V	-40～80℃
GVP3880V	0-380VAC	80A	2-10VDC	≥2000VAC	≥2500VAC	≤2V	-40～80℃
GVP38100V	0-380VAC	100A	2-10VDC	≥2000VAC	≥2500VAC	≤2V	-40～80℃
GVP38120V	0-380VAC	120A	2-10VDC	≥2000VAC	≥2500VAC	≤2V	-40～80℃

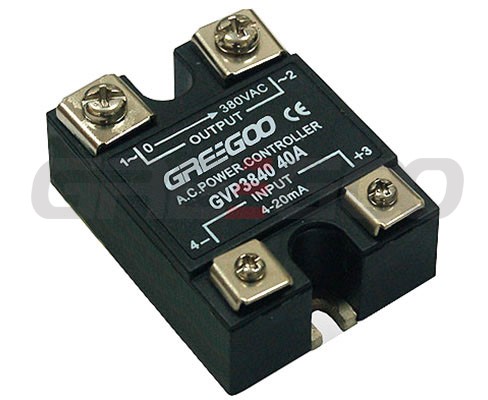

GVP3840A	0-380VAC	40A	4-20MA	≥2000VAC	≥2500VAC	≤2V	-40～80℃
GVP3850A	0-380VAC	50A	4-20MA	≥2000VAC	≥2500VAC	≤2V	-40～80℃
GVP3860A	0-380VAC	60A	4-20MA	≥2000VAC	≥2500VAC	≤2V	-40～80℃
GVP3880A	0-380VAC	80A	4-20MA	≥2000VAC	≥2500VAC	≤2V	-40～80℃
GVP38100A	0-380VAC	100A	4-20MA	≥2000VAC	≥2500VAC	≤2V	-40～80℃
GVP38120A	0-380VAC	120A	4-20MA	≥2000VAC	≥2500VAC	≤2V	-40～80℃
