Product Details

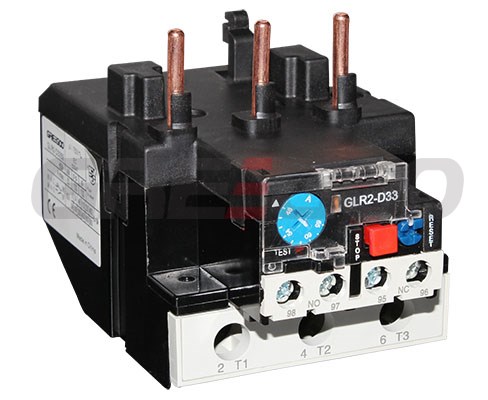

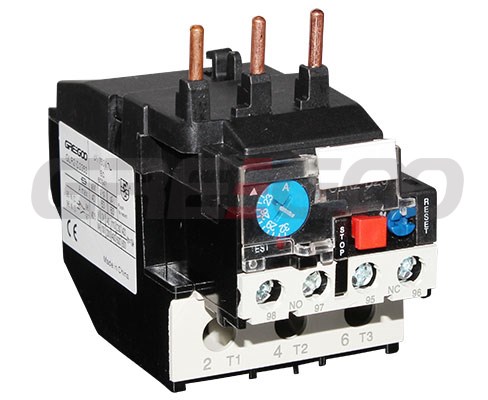

Thermal Relays (LR2-D)

Relay setting range (A)	Fuses to be used with selected relay Type (A)		For contactor GLC1, GLP1	Reference	Weight(kg)
Relay setting range (A)	aM	gG(BS88)	For contactor GLC1, GLP1	Reference	Weight(kg)
0.10...0.16	0.25	2	D09...D32	GLR2-D1301	0.165
0.16...0.25	0.5	2	D09...D32	GLR2-D1302	0.165
0.25...0.40	1	2	D09...D32	GLR2-D1303	0.165
0.40...0.63	1	4	D09...D32	GLR2-D1304	0.165
0.63...1	2	4	D09...D32	GLR2-D1305	0.165
1...1.6	2	6	D09...D32	GLR2-D1306	0.165
1.6...2.5	4	10	D09...D32	GLR2-D1307	0.165
2.5...4	6	16	D09...D32	GLR2-D1308	0.165
4...6	8	16	D09...D32	GLR2-D1310	0.165
5.5...8	12	20	D09...D32	GLR2-D1312	0.165
7...10	12	20	D09...D32	GLR2-D1314	0.165
9...13	16	25	D12...D32	GLR2-D1316	0.165
12...18	20	32	D18...D32	GLR2-D1321	0.165
17...25	25	50	D25 and D32	GLR2-D1322	0.165
23...32	40	63	D25 and D32	GLR2-D2353	0.32
30...40	40	80	D32	GLR2-D2355	0.32
17...25	25	50	D40...D95	GLR2-D3322	0.51
23...32	40	63	D40...D95	GLR2-D3353	0.51
30...40	40	80	D40...D95	GLR2-D3355	0.51
37...50	63	100	D50...D95	GLR2-D3357	0.51
48...65	63	100	D50...D95	GLR2-D3359	0.51
55...70	80	125	D65...D95	GLR2-D3361	0.51
63...80	80	125	D80 and D95	GLR2-D3363	0.51
80...93	100	160	D95	GLR2-D3365	0.51
