Product Details

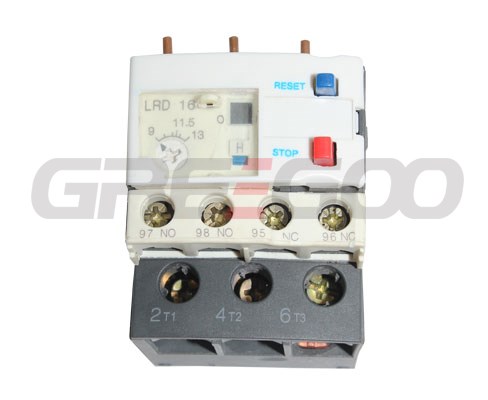

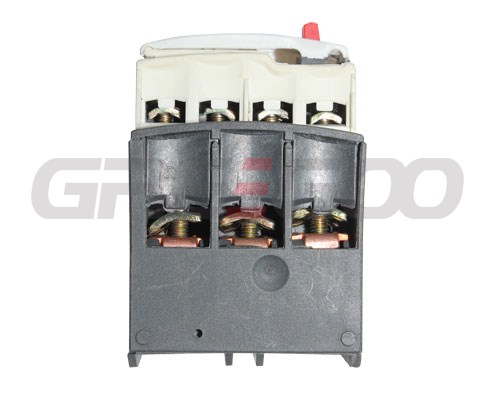

Thermal Overload Relays (GLRD)

Relay setting	Fuses to be used with selected relay ((A))			For contactor GLC1	Reference	Weight(kg)
range(A)	aM	gG	BS88	For contactor GLC1	Reference	Weight(kg)
0.10...0.16	0.25	2	-	D09...D38	GLRD01	0.124
0.16...0.25	0.5	2	-	D09 ...D38	GLRD02	0.124
0.25...0.40	1	2	-	D09...D38	GLRD03	0.124
0.40...0.63	1	2	-	D09 ...D38	GLRD04	0.124
0.63...1	2	4	-	D09...D38	GLRD05	0.124
1...1.6	2	4	6	D09...D38	GLRD06	0.124
1.6...2.5	4	6	10	D09...D38	GLRD07	0.124
2.5...4	6	10	16	D09...D38	GLRD08	0.124
4...6	8	16	16	D09...D38	GLRD10	0.124
5.5...8	12	20	20	D09...D38	GLRD12	0.124
7...10	12	20	20	D09...D38	GLRD14	0.124
9...13	16	25	25	D12...D38	GLRD16	0.124
12...18	20	35	32	D18...D38	GLRD21	0.124
16...24	25	50	50	D25...D38	GLRD22	0.124
23...32	40	63	63	D25...D38	GLRD32	0.124
30...38	40	80	80	D32 and D38	GLRD35	0.124
17...25	25	50	50	D40...D95	GLRD3322	0.51
23...32	40	63	63	D40...D95	GLRD3353	0.51
30...40	40	100	80	D40...D95	GLRD3355	0.51
37...50	63	100	100	D40...D95	GLRD3357	0.51
48...65	63	100	100	D50...D95	GLRD3359	0.51
55...70	80	125	125	D50...D95	GLRD3361	0.51
63...80	80	125	125	D65...D95	GLRD3363	0.51
80...104	100	160	160	D80 and D95	GLRD3365	0.51
80...104	125	200	160	D115 and D150	GLRD4365	0.9
95...120	125	200	200	D115 and D150	GLRD4367	0.9
110...140	160	250	200	D150	GLRD4369	0.9
