Three phase solid state relays

Home Products Solid State Relays (AC Switching)Three Phase Solid State RelaysThree phase solid state relays

Three phase solid state relay
Three phase solid state relay
Three phase solid state relay
Three phase solid state relay
Three phase solid state relay
Three phase solid state relay
Model Explanation

Three phase solid state relays

Code Section Meaning Value
G Brand Name Greegoo
T Type Three phase
H Output type H - SCR output
1 Rated Load Current Blank - Triacs output
25 - 25A
40 - 40A
60 - 60A
80 - 80A
100 - 100A
120 - 120A
200 - 200A
300 - 300A
400 - 400A
500 - 500A
2 Rated Load Voltage 44 - 440V
48 - 480V
53 - 530V
66 - 660V
3 Control Method Z - Zero Crossing
R - Random
4 Input Control Voltage D3 - 4-32Vdc
A2 - 90-250Vac



480V AC switching SSR relays
Model Load current Load voltage Control method Control voltage Status Dimensions (L*W*H)
GT1048ZD3 10A 48-480VAC Zero Switching 4-32VDC DC to AC 105x74x33mm
GT2548ZD3 25A 48-480VAC Zero Switching 4-32VDC DC to AC 105x74x33mm

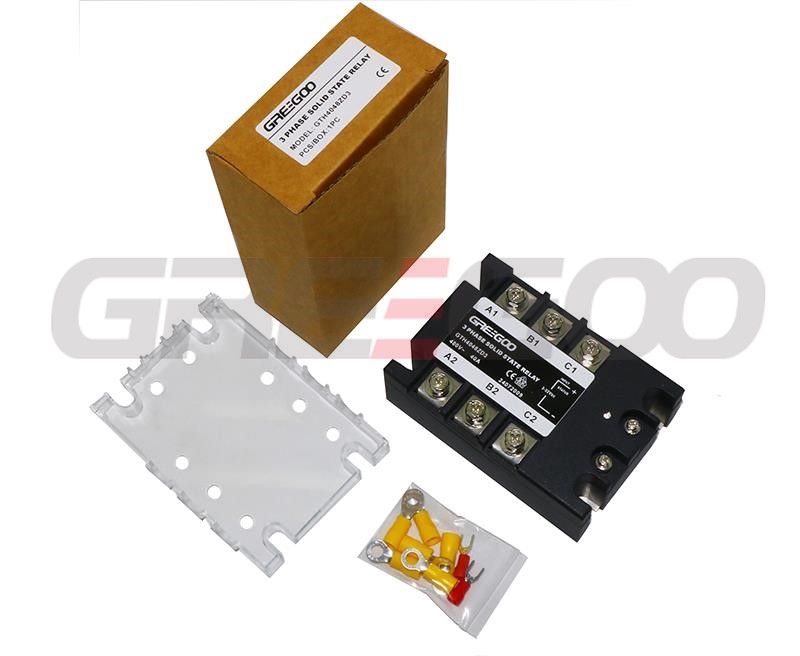

GTH4048ZD3 40A 48-480VAC Zero Switching 4-32VDC DC to AC 105x74x33mm
GTH6048ZD3 60A 48-480VAC Zero Switching 4-32VDC DC to AC 105x74x33mm

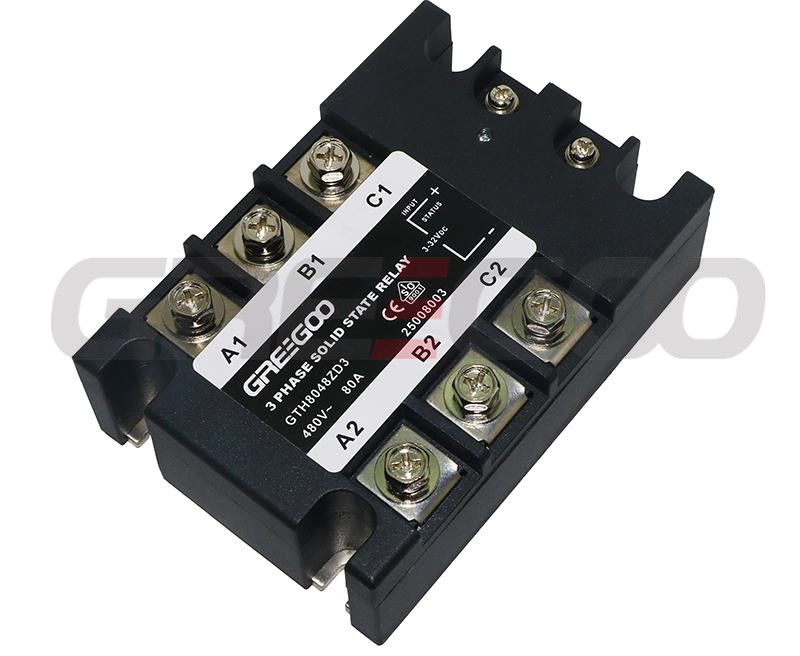

GTH8048ZD3 80A 48-480VAC Zero Switching 4-32VDC DC to AC 105x74x33mm
GTH10048ZD3 100A 48-480VAC Zero Switching 4-32VDC DC to AC 105x74x33mm
GTH12048ZD3 120A 48-480VAC Zero Switching 4-32VDC DC to AC 105x74x33mm
GT1048ZA2 10A 48-480VAC Zero Switching 90-250VAC AC  to AC 105x74x33mm
GT2548ZA2 25A 48-480VAC Zero Switching 90-250VAC AC  to AC 105x74x33mm
GTH4048ZA2 40A 48-480VAC Zero Switching 90-250VAC AC  to AC 105x74x33mm
GTH6048ZA2 60A 48-480VAC Zero Switching 90-250VAC AC  to AC 105x74x33mm
GTH8048ZA2 80A 48-480VAC Zero Switching 90-250VAC AC  to AC 105x74x33mm

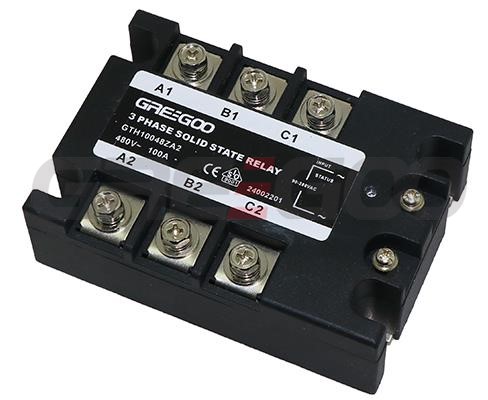

GTH10048ZA2 100A 48-480VAC Zero Switching 90-250VAC AC  to AC 105x74x33mm
GTH12048ZA2 120A 48-480VAC Zero Switching 90-250VAC AC  to AC 105x74x33mm
GT1048RD3 10A 48-480VAC Random Switching 4-32VDC DC to AC 105x74x33mm
GT2548RD3 25A 48-480VAC Random Switching 4-32VDC DC to AC 105x74x33mm
GTH4048RD3 40A 48-480VAC Random Switching 4-32VDC DC to AC 105x74x33mm
GTH6048RD3 60A 48-480VAC Random Switching 4-32VDC DC to AC 105x74x33mm
GTH8048RD3 80A 48-480VAC Random Switching 4-32VDC DC to AC 105x74x33mm
GTH10048RD3 100A 48-480VAC Random Switching 4-32VDC DC to AC 105x74x33mm
GTH12048RD3 120A 48-480VAC Random Switching 4-32VDC DC to AC 105x74x33mm
GT1048RA2 10A 48-480VAC Random Switching 90-250VAC AC  to AC 105x74x33mm
GT2548RA2 25A 48-480VAC Random Switching 90-250VAC AC  to AC 105x74x33mm
GTH4048RA2 40A 48-480VAC Random Switching 90-250VAC AC  to AC 105x74x33mm
GTH6048RA2 60A 48-480VAC Random Switching 90-250VAC AC  to AC 105x74x33mm
GTH8048RA2 80A 48-480VAC Random Switching 90-250VAC AC  to AC 105x74x33mm
GTH10048RA2 100A 48-480VAC Random Switching 90-250VAC AC  to AC 105x74x33mm
GTH12048RA2 120A 48-480VAC Random Switching 90-250VAC AC  to AC 105x74x33mm
530V AC switching SSR
Model Load current Load voltage Control method Control voltage Status Dimensions (L*W*H)
GT1053ZD3 10A 53-530VAC Zero Switching 4-32VDC DC to AC 105x74x33mm
GT2553ZD3 25A 53-530VAC Zero Switching 4-32VDC DC to AC 105x74x33mm
GTH4053ZD3 40A 53-530VAC Zero Switching 4-32VDC DC to AC 105x74x33mm
GTH6053ZD3 60A 53-530VAC Zero Switching 4-32VDC DC to AC 105x74x33mm
GTH8053ZD3 80A 53-530VAC Zero Switching 4-32VDC DC to AC 105x74x33mm
GTH10053ZD3 100A 53-530VAC Zero Switching 4-32VDC DC to AC 105x74x33mm
GTH12053ZD3 120A 53-530VAC Zero Switching 4-32VDC DC to AC 105x74x33mm
GT1053ZA2 10A 53-530VAC Zero Switching 90-250VAC AC  to AC 105x74x33mm
GT2553ZA2 25A 53-530VAC Zero Switching 90-250VAC AC  to AC 105x74x33mm
GTH4053ZA2 40A 53-530VAC Zero Switching 90-250VAC AC  to AC 105x74x33mm
GTH6053ZA2 60A 53-530VAC Zero Switching 90-250VAC AC  to AC 105x74x33mm
GTH8053ZA2 80A 53-530VAC Zero Switching 90-250VAC AC  to AC 105x74x33mm
GTH10053ZA2 100A 53-530VAC Zero Switching 90-250VAC AC  to AC 105x74x33mm
GTH12053ZA2 120A 53-530VAC Zero Switching 90-250VAC AC  to AC 105x74x33mm
GT1053RD3 10A 53-530VAC Random Switching 4-32VDC DC to AC 105x74x33mm
GT2553RD3 25A 53-530VAC Random Switching 4-32VDC DC to AC 105x74x33mm
GTH4053RD3 40A 53-530VAC Random Switching 4-32VDC DC to AC 105x74x33mm
GTH6053RD3 60A 53-530VAC Random Switching 4-32VDC DC to AC 105x74x33mm
GTH8053RD3 80A 53-530VAC Random Switching 4-32VDC DC to AC 105x74x33mm
GTH10053RD3 100A 53-530VAC Random Switching 4-32VDC DC to AC 105x74x33mm
GTH12053RD3 120A 53-530VAC Random Switching 4-32VDC DC to AC 105x74x33mm
GT1053RA2 10A 53-530VAC Random Switching 90-250VAC AC  to AC 105x74x33mm
GT2553RA2 25A 53-530VAC Random Switching 90-250VAC AC  to AC 105x74x33mm
GTH4053RA2 40A 53-530VAC Random Switching 90-250VAC AC  to AC 105x74x33mm
GTH6053RA2 60A 53-530VAC Random Switching 90-250VAC AC  to AC 105x74x33mm
GTH8053RA2 80A 53-530VAC Random Switching 90-250VAC AC  to AC 105x74x33mm
GTH10053RA2 100A 53-530VAC Random Switching 90-250VAC AC  to AC 105x74x33mm
GTH12053RA2 120A 53-530VAC Random Switching 90-250VAC AC  to AC 105x74x33mm
660V AC switching SSR relays
Model Load current Load voltage Control model Control voltage Status Size (L*W*H)
GTH20044ZD3 200A 40-440VAC Zero Switching 4-32VDC DC to AC 120x84x56mm
GTH30044ZD3 300A 40-440VAC Zero Switching 4-32VDC DC to AC 120x84x56mm
GTH40044ZD3 400A 40-440VAC Zero Switching 4-32VDC DC to AC 120x84x56mm

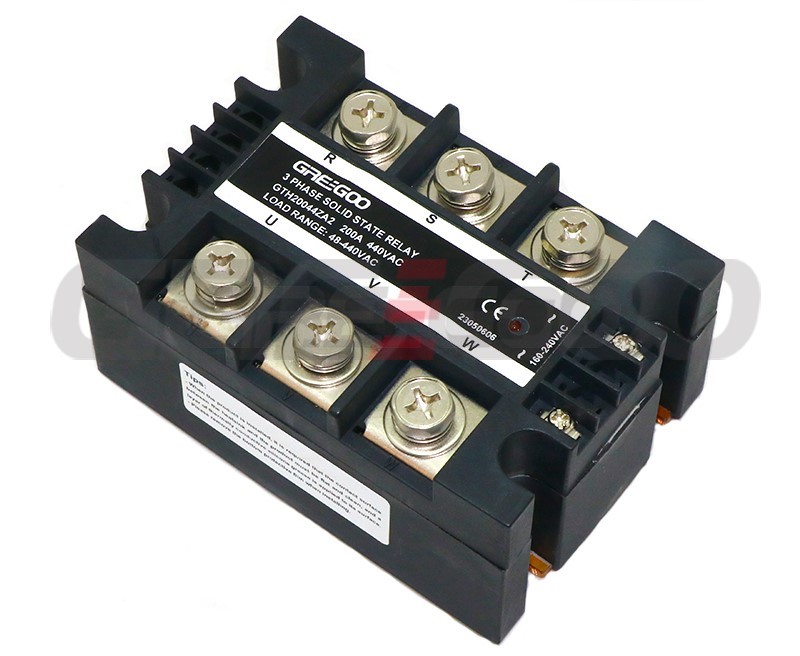

GTH20044ZA2 200A 40-440VAC Zero Switching 160-240VAC AC  to AC 120x84x56mm
GTH30044ZA2 300A 40-440VAC Zero Switching 160-240VAC AC  to AC 120x84x56mm
GTH40044ZA2 400A 40-440VAC Zero Switching 160-240VAC AC  to AC 120x84x56mm
GTH20066ZD3 200A 40-660VAC Zero Switching 4-32VDC DC to AC 120x84x56mm
GTH30066ZD3 300A 40-660VAC Zero Switching 4-32VDC DC to AC 120x84x56mm
GTH40066ZD3 400A 40-660VAC Zero Switching 4-32VDC DC to AC 120x84x56mm
GTH20066ZA2 200A 40-660VAC Zero Switching 160-240VAC AC  to AC 120x84x56mm
GTH30066ZA2 300A 40-660VAC Zero Switching 160-240VAC AC  to AC 120x84x56mm
GTH40066ZA2 400A 40-660VAC Zero Switching 160-240VAC AC  to AC 120x84x56mm
400A and 500A integrated 3 phase solid state relays
Model Load current Load voltage Control model Control voltage Status Size (L*W*H)

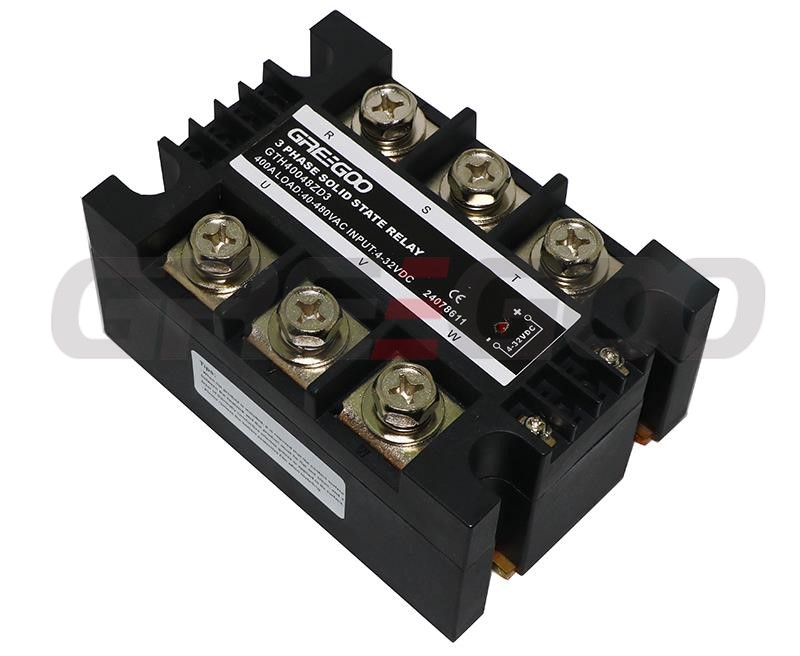

GTH40048ZD3 400A 48-480VAC Zero Switching 4-32VDC DC to AC 185*135*75mm
GTH50048ZD3 500A 48-480VAC Zero Switching 4-32VDC DC to AC 185*135*75mm
GTH40053ZD3 400A 53-530VAC Zero Switching 4-32VDC DC to AC 185*135*75mm
GTH50053ZD3 500A 53-530VAC Zero Switching 4-32VDC DC to AC 185*135*75mm
GTH40048RD3 400A 48-480VAC Random 4-32VDC DC to AC 185*135*75mm
GTH50048RD3 500A 48-480VAC Random 4-32VDC DC to AC 185*135*75mm
GTH40053RD3 400A 53-530VAC Random 4-32VDC DC to AC 185*135*75mm
GTH50053RD3 500A 53-530VAC Random 4-32VDC DC to AC 185*135*75mm
GTH40048ZA2 400A 48-480VAC Zero Switching 90-250VAC AC to AC 185*135*75mm
GTH50048ZA2 500A 48-480VAC Zero Switching 90-250VAC AC to AC 185*135*75mm
GTH40053ZA2 400A 53-530VAC Zero Switching 90-250VAC AC to AC 185*135*75mm
GTH50053ZA2 500A 53-530VAC Zero Switching 90-250VAC AC to AC 185*135*75mm
GTH40048RA2 400A 48-480VAC Random 90-250VAC AC to AC 185*135*75mm
GTH50048RA2 500A 48-480VAC Random 90-250VAC AC to AC 185*135*75mm
GTH40053RA2 400A 53-530VAC Random 90-250VAC AC to AC 185*135*75mm
GTH50053RA2 500A 53-530VAC Random 90-250VAC AC to AC 185*135*75mm

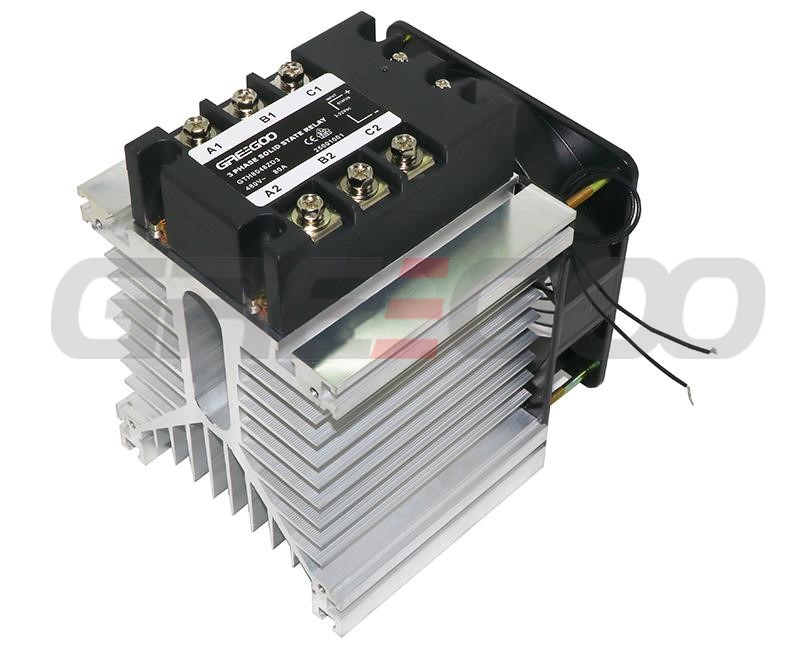

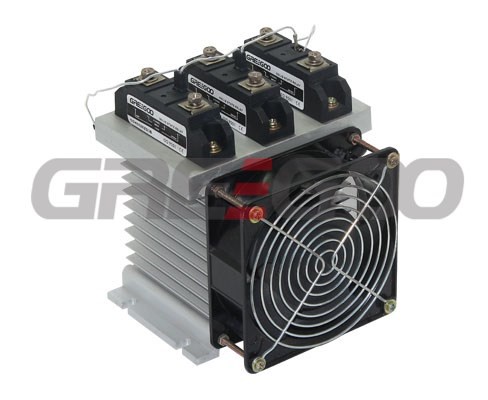

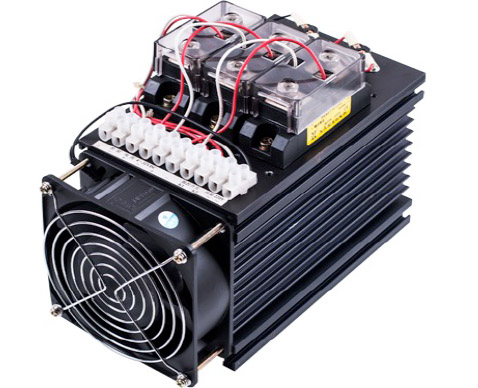

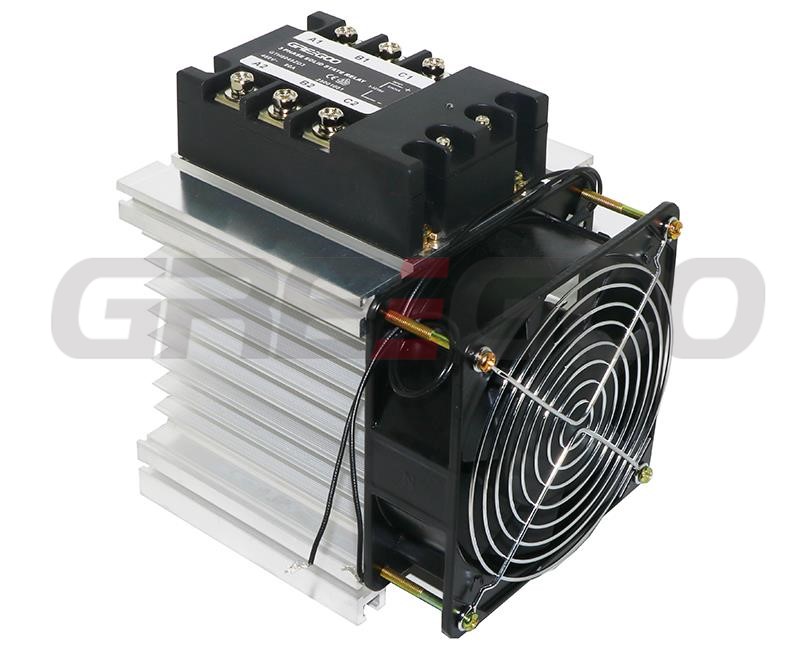

Solid state contactors

Due to the SSC is composed of SSR, radiator/heatsink, axial fan, thermostat, defense covering, fixing pinch etc., we can design and make varies of SSC by the needs of the customers. Including the high-power wind-cool and water-cool type. While ordering, please offer the using condition, including the type of load ,power, current, voltage, control-voltage, space of equipment ,surrounding condition etc.



solid state contactor ssc

Custom-made solution of solid state relays

Custom-made solution of solid state relays:



  • Normal close solid state relays
  • Push button control 3 phase solid state relays
  • 3 phase solid state regulator



Product Details

A three-phase Solid State Relay (SSR) is a contactless switching device that uses semiconductor materials to control circuits in a three-phase electrical system. Compared to traditional mechanical relays, solid-state relays offer the advantages of faster response time, no mechanical contacts, no noise, and a longer lifespan. Three-phase SSRs are commonly used in applications that require frequent switching and precise control, such as industrial automation, temperature control, lighting control, etc. They enable synchronous control of three-phase loads, enhancing the stability and reliability of the system.

FAQ
Q:What are the differences between Thyristor and IGBT modules?

The thyristor module is controlled by current, requiring a current pulse to trigger conduction and cannot be turned off via the gate, only naturally turning off when the current crosses zero, making it suitable for low-frequency, high-power applications. The IGBT module is controlled by voltage, being a fully controllable switch where both turn-on and turn-off can be controlled by gate voltage, with self-turn-off capability, suitable for medium to high-frequency applications. The IGBT operates at a higher frequency than the thyristor, making it ideal for applications requiring precise control.
