TT250 Phase Control Thyristor Module
Home Products Thyristor Diode ModuleInfineon Thyristor Diode ModulesTT250 Phase Control Thyristor Module
TT250 Phase Control Thyristor Module
Key Parameters:
VDRM / VRRM | 1200 – 1800 V |
ITAVM | 250 A (TC=85 °C) |
ITSM | 9100 A |
VT0 | 0,8 V |
rT | 0,7 mΩ |
RthJC | 0,124 K/W |

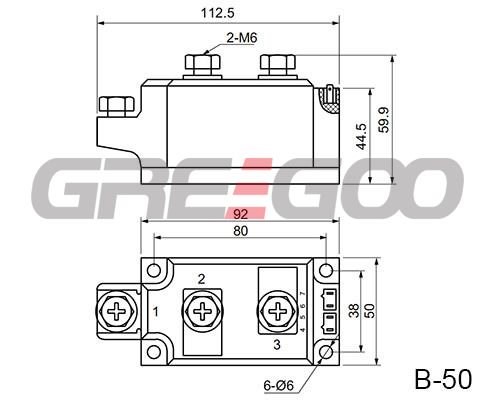

Base plate | 50 mm |
Weight | 800 g |
Feature:
Pressure contact technology for high reliability
Industrial standard package
Electrically insulated base plate
Option: Pre-applied thermal interface material (TIM)
Application:
Soft starter
Rectifier for drives applications
Crowbar applications
Power controllers
Rectifiers for UPS
Battery chargers
Static switches
Need more information?
Contact us to request pricing, availability and customization options.
